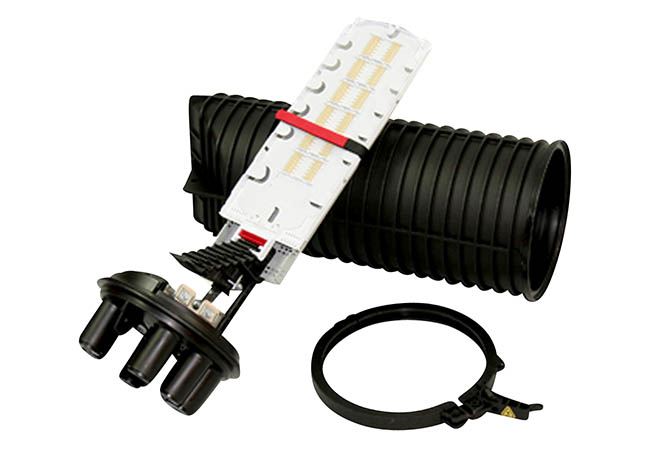

Splice closure, FOSC-400D5/72/576, 4kas/2kry

SKU: 760240244
Stock:
Commscope
excl. VAT

This splice closure in plastic is one of several in the FOSC series. The splice closure consists of few parts and is very easy to install.

This splice closure in plastic is one of several in the FOSC series. The splice closure consists of few parts and is very easy to install.

  • Indoor/outdoor use
  • Casing class IP68
  • Capacity of 576 splices (250 to 250 µm)
  • 72 splices in each tray
  • 8 trays (4 trays included)
  • 5 round cable entries + 1 oval (heat shrink tube for 2 round ports are included)
  • Possibility for storing uncut fibre in storage basket (midspan access)

Dimensions: 710xÃ?260 mm

Splice closure fits the Cable Management frame type D5.

Accessory products
Storage basket, A4/A8

The storage basket is used for coiling fibre tubes that are uncut. Fits FOSC-400A4/24/48 and FOSC-400A8/24/96.

712439-000
O-ring, FOSC-400A4/A8/B4

O-ring for the splice closures FOSC-400A4, FOSC-400A8 and FOSC-400B4.

857356-000
Pole bracket, wooden pole, composite, 2 pcs

Pole mount bracket for wooden poles made of composite materials. The bracket fits both Cable Management frames (B4 and D5) and provides a good distance between the Cable Management frame and the mast.

2857981-2
Fiber optic Splice protector, 45 mm, 100-pack

Only one opening prevents wrong fibre positioning

PS-3A-X-45
Adjustable Fiber Optic Cable Slack Storage

Adjustable cable management frame suitable for both small and large closures. The slim profile minimizes visibility.

402771
Tray, D5/72

Tray for FOSC splice closure.

263079-000
Cable management frame, midi

The cable management frame is primarily used in access points in FTTH networks. It is mounted to wooden poles using the included screws. The frame consists of a main part where the closure is fastened with a strap (included) and a pole part that is mounted to the pole. The main part may rotate on the pole part witch is practical when winding up the cable.

402571
Cable management frame, B4

The Cable Management frame fits several types of splice closures on the market.

402671
heat shrink tube, A4/A8, oval

Oval heat shrink tube for the splice closures FOSC-400A4/24/48 and FOSC-400A8/24/96.

562504-000
Fiber optic Splice protector, 60 mm, 100-pack

Pretreated for short shrinking time

PS-3A-X
Wall/pole mount bracket, FOSC-400A4/B4

Wall and pole mount bracket for FOSC-400A and FOSC-400B

856344-000
Fibre protector, A4, round

Round heat shrink tube to splice closure FOSC-400A4/24/48.

131342-000
