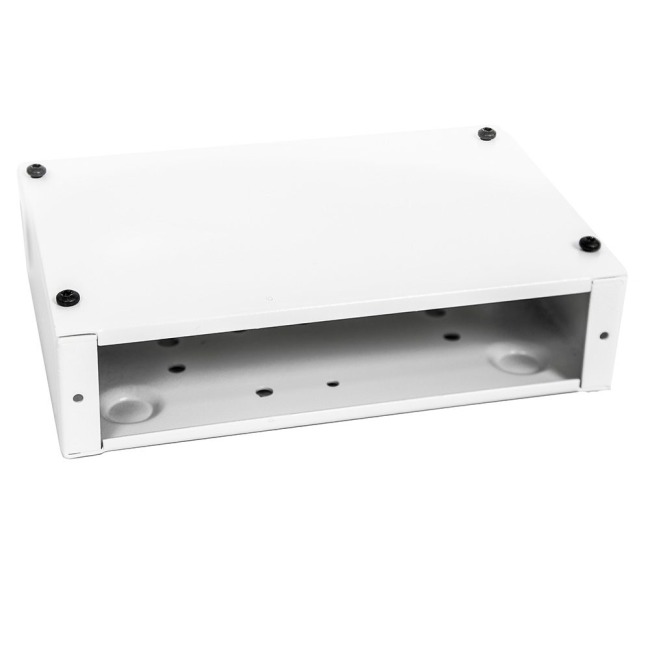

Wall box mini, w/splice holder

SKU: 400610

Stock:

excl. VAT

A simple indoor wall-mount box for termination of fiber optic cables. Splice holder for securing the crimp sleeves when splicing pigtails and fibre guides for routing the fibre are included.

Description

Indoor use
For terminating optical connectors
Prepared for splicing pigtails (splice holder included)
Front for the relevant adapter must be purchased separately
Clips for DIN rail as an option

DESCRIPTION

A simple indoor wall-mount box for termination of cables. Splice holder for securing the crimp sleeves when splicing pigtails and fibre guides for routing the fibre are included. An adapter plate must be ordered separately - depending on wanted connector type.

The box has 2 round cable entrances and glands for both are included.

SPECIFICATIONS

Material:  White aluminium

Cable entrances:
1 with neoprene rubber membrane gland (TET 7-10) Hole size equals M20
1 with M20 gland For 6 - 13 mm cable

Capacity (no. of connectors):
6 FC, ST, DIN
8 SC, E2000
12 LC (when splicing)
16 LC (with direct termination)

Dimensions:  150 x 35 x 110 mm (W x H x D)

Weight:  0.5 kg

Adapter plate, mini, 6 holes ST/FC

Adapter plate for Wall box mini (400610) with 6 holes for up to 6 ST- FC- or DIN adapters.

400611

Adapter plate, mini 4 holes SC DPX/LC Quad

Adapter plate for Wall box mini (400610) with 4 holes for up to 4 SC DPX adapters (8-fibre).

400613

Adapter plate, mini 6 holes SC SPX/LC DPX

Adapter plate for Wall box mini (400610) with 6 holes for up to 6 LC DPX adapters (12-fibre) or 6 SC SPX adapters (6-fibre).

400617

Adapter plate, mini, 4 holes E2000, DPX

Adapter plate for wall box mini (400610) with 4 holes for up to 4 E2000 DPX adapters (8-fibre).

400619

Blanking plate, mini

Blind plate for Wall box mini (400610).

400612

Angled bracket, mini, kit

Wall box mini has interior holes for fastening it to the wall. If you do not wish to use these, you can use a set of exterior brackets for fastening it to the wall.

400615

Clips, DIN rails, kit,

Set of clips for DIN rails for Wall box mini (400610).

400616
