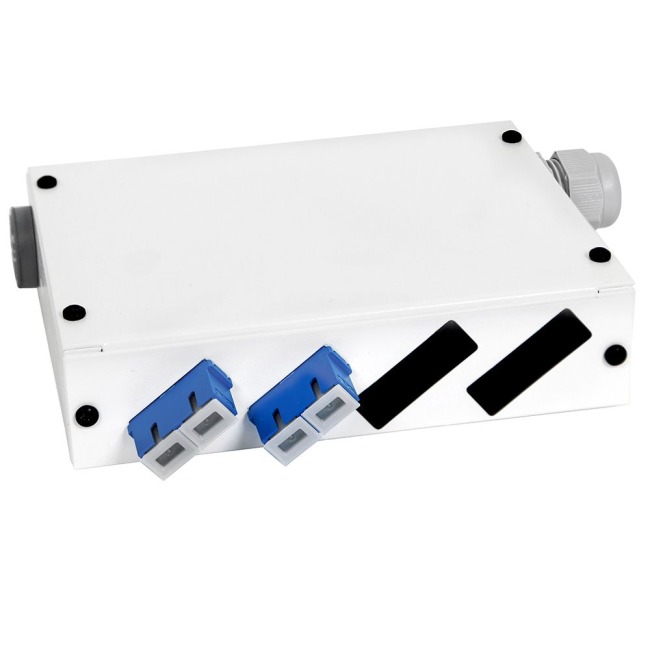

Fiber optic Wall box mini, 4 SC/PC adapters and pigtails pre-assembled, 9/OS2

SKU: 610-4SSC

Stock:

excl. VAT

A simple indoor wall-mount box for termination of fiber optic cables, with pre-assembled single mode 4 SC/PC adapters and pigtails.

Description

For indoor use
For termination of optical connectors
Including pigtails and splice holder for splicing
Clips for DIN rail as optional configuration

DESCRIPTION

A simple indoor wall-mount box for termination of cables. Splice holder for securing the crimp sleeves when splicing pigtails and fibre guides for routing the fibre are included. An adapter plate must be ordered separately - depending on wanted connector type.

The box has 2 round cable entrances and glands for both are included.

SPECIFICATIONS

Material: White aluminium

Cable entrances:
1 with neoprene rubber membrane gland (TET 7-10) Hole size equals M20
1 with M20 gland For 6 - 13 mm cable

Capacity (no. of connectors):
6 FC, ST, DIN
8 SC, E2000
12 LC (when splicing)
16 LC (with direct termination)

Dimensions: 150 x 35 x 110 mm (W x H x D)

Weight: 0.5 kg

Adapter plate, mini, 6 holes ST/FC

Adapter plate for Wall box mini (400610) with 6 holes for up to 6 ST- FC- or DIN adapters.

400611

Adapter plate, mini 6 holes SC SPX/LC DPX

Adapter plate for Wall box mini (400610) with 6 holes for up to 6 LC DPX adapters (12-fibre) or 6 SC SPX adapters (6-fibre).

400617

Angled bracket, mini, kit

Wall box mini has interior holes for fastening it to the wall. If you do not wish to use these, you can use a set of exterior brackets for fastening it to the wall.

400615

Wall box mini, w/splice holder

A simple indoor wall-mount box for termination of fiber optic cables. Splice holder for securing the crimp sleeves when splicing pigtails and fibre guides for routing the fibre are included.

400610
