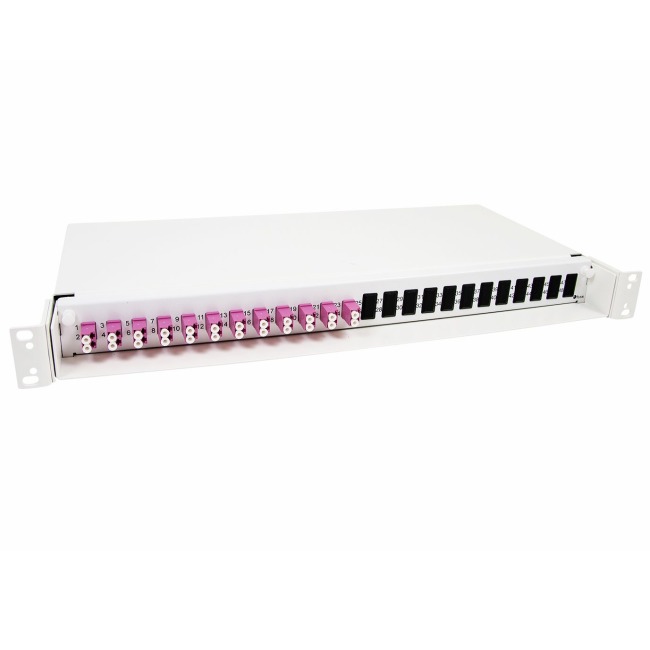

24 fiber MPO to LC Breakout Fiber Patch Panel, OM4, B2

SKU: FP65-24LCOM4-MPO-B2T

Stock:

excl. VAT

MPO fiber patch panel 1U with pre-installed MPO to LC fan-out. High density fiber optic management system reduces needed space, deployment time and is easy to use.

Description
Specifications

The patch panel is delivered with LC to MPO-conversion.

Height: 1U
Fibre type: multimode, OM4
MPO / Multi-fiber push on connectors in the back
Unused adapter holes have blind plugs
High-quality factory-installed connectors
Can be mounted in 19" and metric cabinets/racks

Capacities

The 1U patch panel is delivered with front plate for 24 duplex LC adapters, 24 quad LC adapters or 36 quad LC adapters, Maximum capacity is 48, 96 or 144 fibers. For the 144-fiber version 24 fiber trunk cables must be used.

Capacity front LC: 1U panel 12, 24, 48, 96, 144

Capacity back MPO: 1U panel 6x12=72 fiber or 6x24=144 fiber

Accessories
The accessories for the 1U shall secure the installation and give good fibre and cable administration. A 1U cable guide may be placed under the panel to guide the patch cords to the side of the rack. When saving space is important a 0.5U cable guide may be mounted directly on the panel, making the total height 1U. Label covers and acrylic covers for protection are also available.

Always use the correct accessories for the patch panel. This will ensure good communications and simplify operations and maintenance. See datasheet for available accessories.
