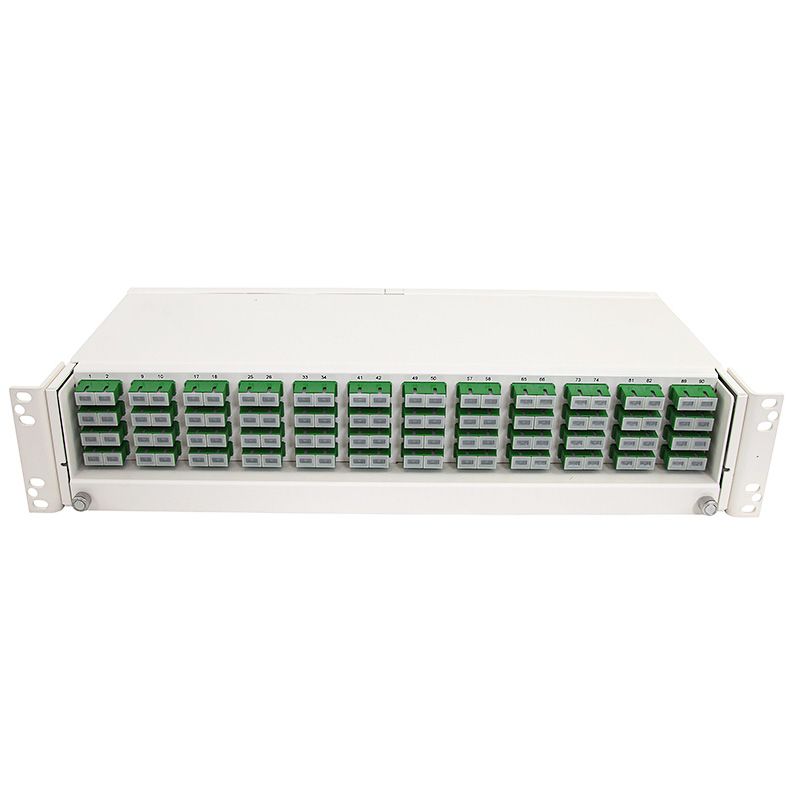

Panel FP85 PRO, SC/APC, pigtails, 9/OS2
Fiber optic patch panel 2U with pre-assembled single mode SC/APC adapters and pigtails.
|Variant: Panel FP85 PRO, 48 SC/APC, pigtails, 9/OS2||Nummer: FP85-48APC8||Number of fibres 48||
|Variant: Panel FP85 PRO, 96 SC/APC, pigtails, 9/OS2||Nummer: FP85-96APC8||Number of fibres 96||
- Height: 2U (88 mm)
- Up to 96 SC/APC connectors
- Adapter holes that are not in use are fitted with blind plugs
- Bend insensitive single mode fibre according to ITU-T G.657A1
- Quality according to IEC 61755-1 class C1 (loss: 0.5 dB, return output;-60 dB)
Materials: Aluminium White paint, RAL9010
Dimensions: 88 x 484 (19”) x 235 mm (H x W x D) May be converted to metrical
Weight: 1.8 kg
Capacity (no. of connectors): 96 SC, LC 192 (only pre-terminated cable) LC
The Panel is part of the FP PRO series and is delivered in white painted aluminium. The panel has a drawer that ensures simple assembly and later maintenance of cables and connectors. The panel is delivered with SC or LC optical interfaces and have a capacity of up to 192 LC connectors or 96 SC. In the back of the panel there are 4 cable entrances, 2 on each side.
The accessories for the FP80 shall secure the installation and give good fibre and cable administration. Separate installation sets are used to ensures fast and secure installation. Cable guides, guides the patch cords to the side of the rack. A storage unit may be used for horizontal storage of excess cords when vertical storage is not available. A number of acrylic covers may be used to prevent accidental damage to the connectors. Label plates in different sizes may be used both as protection and labelling.
|Fiber type||Single mode|
