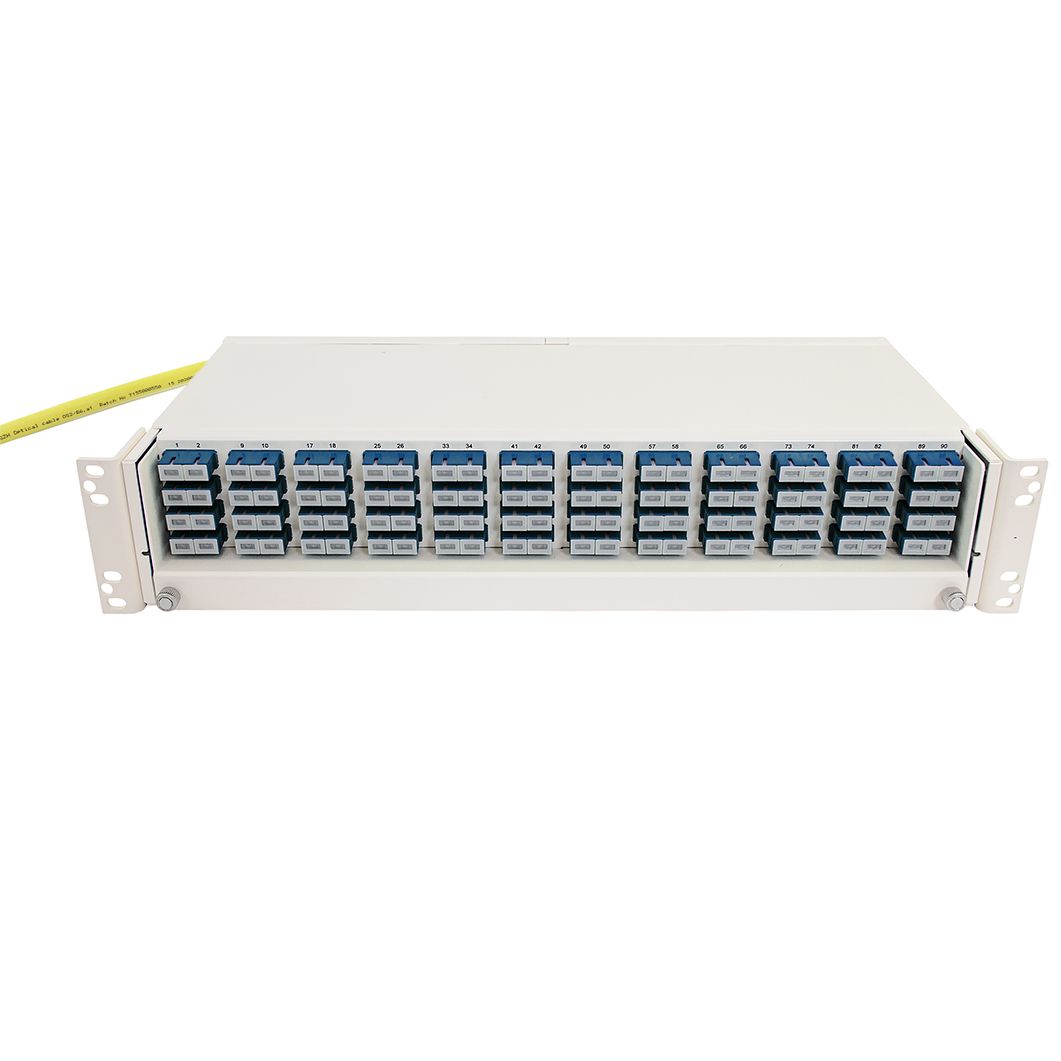

Panel FP85 PRO, 96 SC/PC, 9/OS2, QXXI

From: excl. VAT
See variants

Fiber optic patch panel 2U with pre-terminated cable type QXXI and 96 SC/PC adapters. The panel has a drawer that ensures simple assembly and later maintenance of cables and connectors. In the back of the panel there are 4 cable entrances, 2 on each side.

Variant Product Number Length Stock Price
Variant: Patch Panel 2U, 96 SC/PC, 9/OS2, 10m fiber optic cable QXXI Nummer: FPQ85-96SSC-010 Length 10 m
Stock:
Price:
Variant: Patch Panel 2U, 96 SC/PC, 9/OS2, 20m fiber optic cable QXXI Nummer: FPQ85-96SSC-020 Length 20 m
Stock:
Price:
Variant: Patch Panel 2U, 96 SC/PC, 9/OS2, 30m fiber optic cable QXXI Nummer: FPQ85-96SSC-030 Length 30 m
Stock:
Price:
Variant: Patch Panel 2U, 96 SC/PC, 9/OS2, 50m fiber optic cable QXXI Nummer: FPQ85-96SSC-050 Length 50 m
Stock:
Price:

The panel is delivered with a length of pre-terminated cable that is spliced to the incoming cable at another location.

  • Height: 2U
  • For more information about the cable type read here
  • Fibre type: Single mode, OS2
  • Adapter holes that are not used have blind plugs
  • Can be mounted in 19" and metric cabinets/racks

Always use the correct accessories for the patch panel. This will ensure good communications and simplify operations and maintenance. See datasheet for available accessories.


SPECIFICATIONS

Materials: Aluminium  White paint, RAL9010

Dimensions: 88 x 484 (19”) x 235 mm (H x W x D) May be converted to metrical

Weight: 1.8 kg

Capacity (no. of connectors):
96  SC, LC
192 (only pre-terminated cable) LC


Description
The Panel is part of the FP PRO series and is delivered in white painted aluminium. The panel has a drawer that ensures simple assembly and later maintenance of cables and connectors. The panel is delivered with SC or LC optical interfaces and have a capacity of up to 192 LC connectors or 96 SC. In the back of  the panel there are 4 cable entrances, 2 on each side.



Accessories
The accessories for the FP80 shall secure the installation and give good fibre and cable administration. Separate installation sets are used to ensures fast and secure installation. Cable guides, guides the patch cords to the side of the rack. A storage unit may be used for horizontal storage of excess cords when vertical storage is not available. A number of acrylic covers may be used to prevent accidental damage to the connectors. Label plates in different sizes may be used both as protection and labelling.

Panel og stativ
Size 2U
Fiber type Single mode
Contact SC
