Panel FP75 PRO, ST, pigtails, 50/OM2

From: excl. VAT
See variants

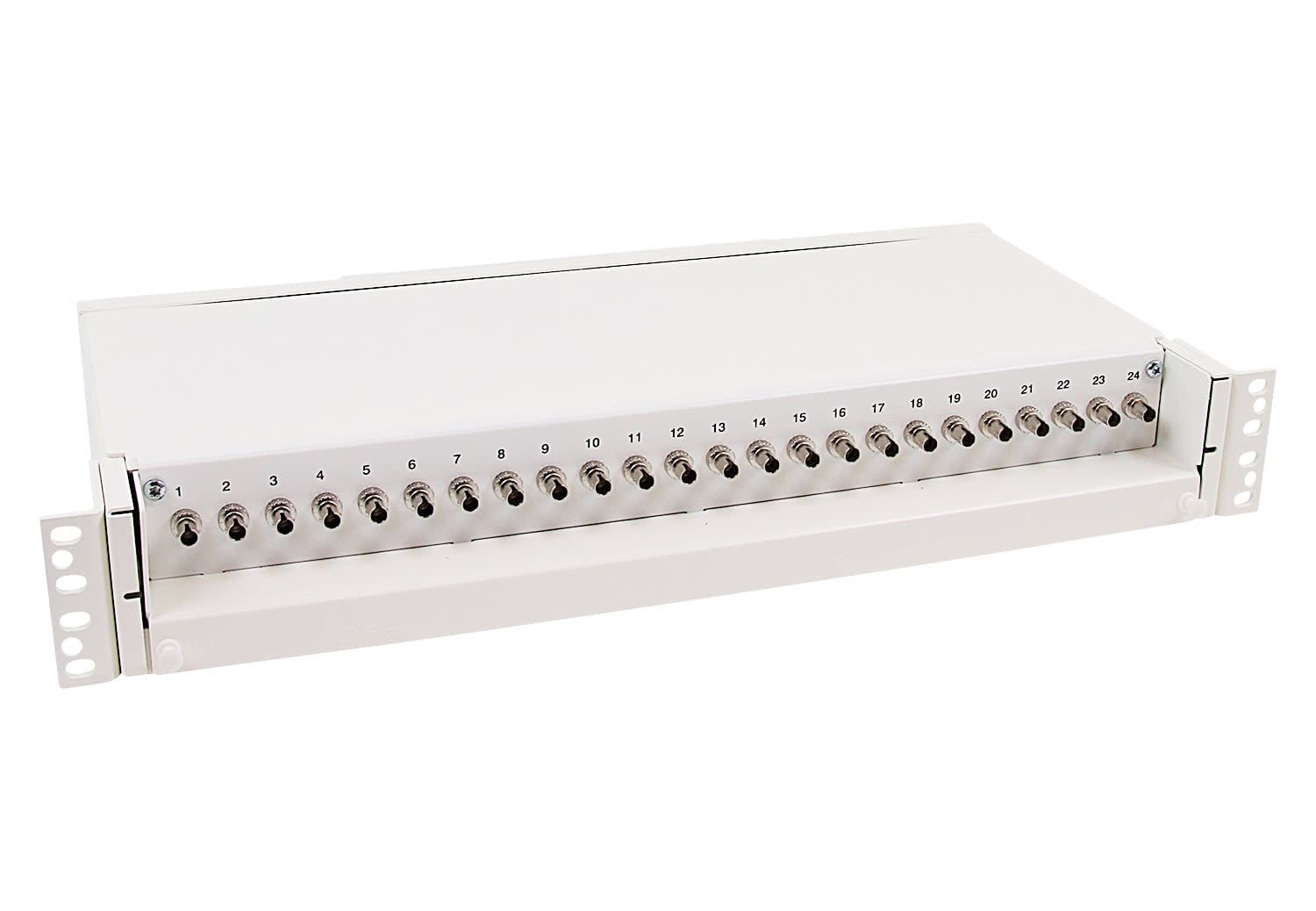

Fiber optic patch panel 1.5U with pre-assembled multimode ST adapters and pigtails. Can be mounted in 19" and metric cabinets and racks.

Variant Product Number Number of fibres Stock Price
Variant: Fiber optic Patch Panel, 8 ST adapters and pigtails pre-assembled, 50/OM2 Nummer: FP75-8ST50 Number of fibres 8
Stock:
Price:
Variant: Fiber optic Patch Panel, 12 ST adapters and pigtails pre-assembled, 50/OM2 Nummer: FP75-12ST50 Number of fibres 12
Stock:
Price:
Variant: Fiber optic Patch Panel, 24 ST adapters and pigtails pre-assembled, 50/9/OS2 Nummer: FP75-24ST50 Number of fibres 24
Stock:
Price:

Patch panel in the FP75 PRO series. The panel comes with factory installed pigtails, prepared for splicing with inbound cable.

  • Fibre type: Multimode according to EN 50173-1 OM-2 (orange)
  • For splicing cables with tight buffer or loose tube.
  • Can be mounted in 19" and metric cabinets/racks

Always use the correct accessories for the patch panel. This will ensure good communications and simplify operations and maintenance. See datasheet for available accessories.


SPECIFICATIONS

Materials: Aluminium  White, RAL9010 or black, RAL9011

Dimensions: 66 x 484 (19”) x 235 mm (H x W x D) May be converted to metrical

Weight: 1.7 kg

Capacity (no. of connectors):  96 LC  48 SC, E2000  24 FC, ST


Description
The Panel is part of the FP PRO series and is delivered in painted aluminium. The panel has a drawer that ensures simple assembly and later maintenance of cables and connectors. The panel may be delivered for most optical interfaces and have a capacity of up to 96 LC connectors. In the back of  the panel there are 4 cable entrances, 2 on each side. For termination of many small cables a special cable entrance may be delivered.

Accessories
The accessories for the FP70 shall secure the installation and give good fibre and cable administration. Separate installation sets are used to ensures fast and secure installation. Cable guides in 2 sizes guides the patch cords to the side of the rack. A storage unit may be used for horizontal storage of excess cords when vertical storage is not available. A number of acrylic covers may be used to prevent accidental damage to the connectors. Label covers in different sizes may be used both as protection and labelling.

Panel og stativ
Size 1.5U
Fiber type Multimode OM2
Contact ST
