Panel FP75 PRO, SC/APC, pigtails, 9/OS2

From: excl. VAT
See variants

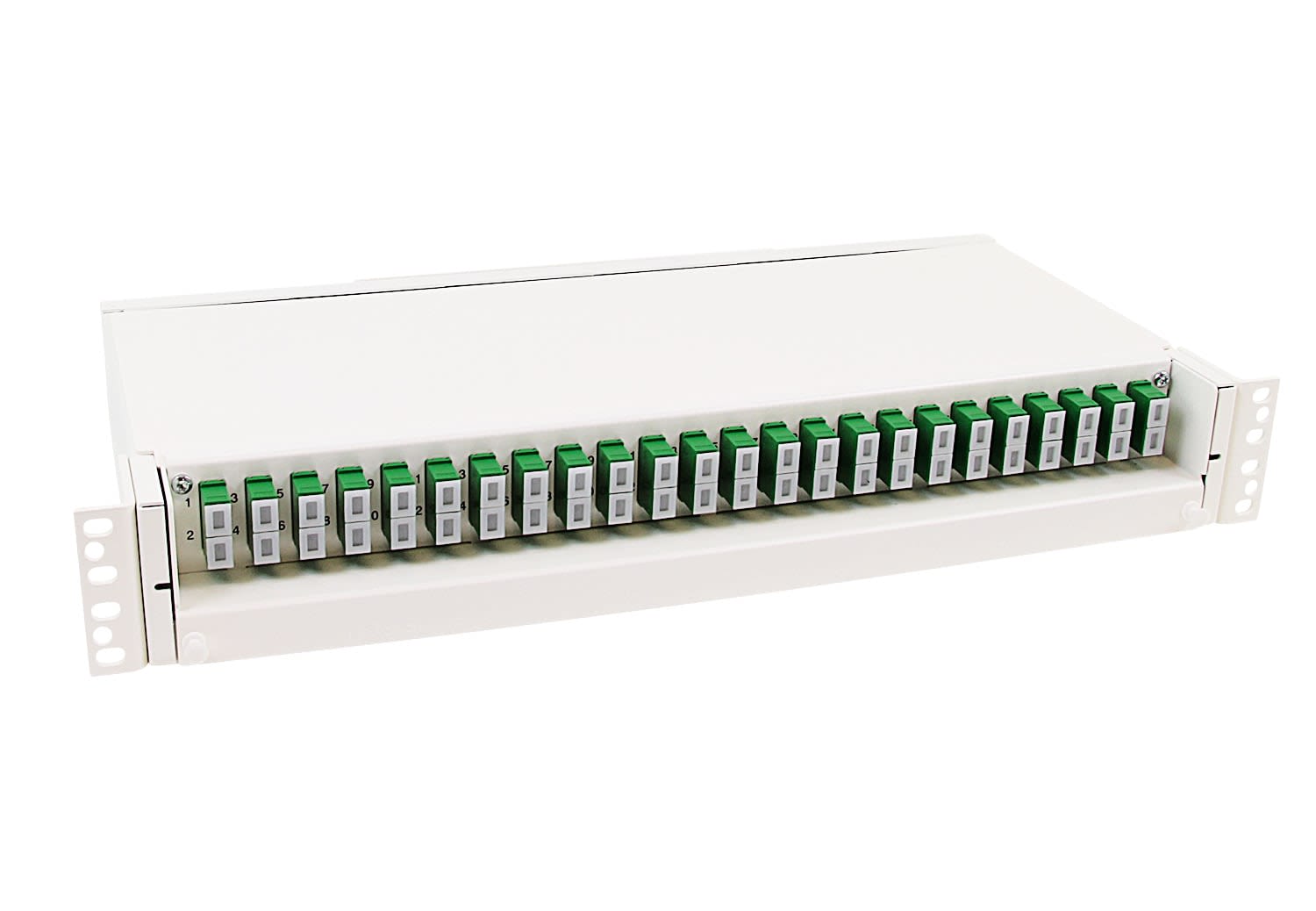

Fiber optic patch panel 1.5U with pre-assembled single mode SC/APC adapters and pigtails. Can be mounted in 19" and metric cabinets and racks.

Variant Product Number Number of fibres Stock Price
Variant: Panel FP75 PRO, 8 SC/APC, pigtails, 9/OS2 Nummer: FP75-8APC8 Number of fibres 8
Variant: Panel FP75 PRO, 12 SC/APC, pigtails, 9/OS2 Nummer: FP75-12APC8 Number of fibres 12
Variant: Panel FP75 PRO, 24 SC/APC, pigtails, 9/OS2 Nummer: FP75-24APC8 Number of fibres 24
Variant: Panel FP75 PRO, 48 SC/APC, pigtails, 9/OS2 Nummer: FP75-48APC8 Number of fibres 48

Patch panel in the FP75 pro series. The panel is delivered with factory mounted pigtails prepared for splicing incoming cable.

  • 48 mounted SC/APC pigtails
  • Fibre type: Single mode according to ITU-T G.657A1, EN 50173-1 OS2
  • Quality: IEC 61755-1 class C1
  • CWDW/DWDM ready
  • For splicing cable with fixed or loose tube
  • Can be mounted in 19" and metric cabinets/racks

Always use the correct accessories for the panel. This will secure the communication and simplify operations and maintenance. See data sheet for available accessories.


Materials: Aluminium  White, RAL9010 or black, RAL9011

Dimensions: 66 x 484 (19”) x 235 mm (H x W x D) May be converted to metrical

Weight: 1.7 kg

Capacity (no. of connectors):  96 LC  48 SC, E2000  24 FC, ST

The Panel is part of the FP PRO series and is delivered in painted aluminium. The panel has a drawer that ensures simple assembly and later maintenance of cables and connectors. The panel may be delivered for most optical interfaces and have a capacity of up to 96 LC connectors. In the back of  the panel there are 4 cable entrances, 2 on each side. For termination of many small cables a special cable entrance may be delivered.

The accessories for the FP70 shall secure the installation and give good fibre and cable administration. Separate installation sets are used to ensures fast and secure installation. Cable guides in 2 sizes guides the patch cords to the side of the rack. A storage unit may be used for horizontal storage of excess cords when vertical storage is not available. A number of acrylic covers may be used to prevent accidental damage to the connectors. Label covers in different sizes may be used both as protection and labelling.

Panel og stativ
Size 1.5U
Fiber type Single mode
Contact SC
