Panel FP75 PRO, 96 LC/APC, 9/OS2, QXXI

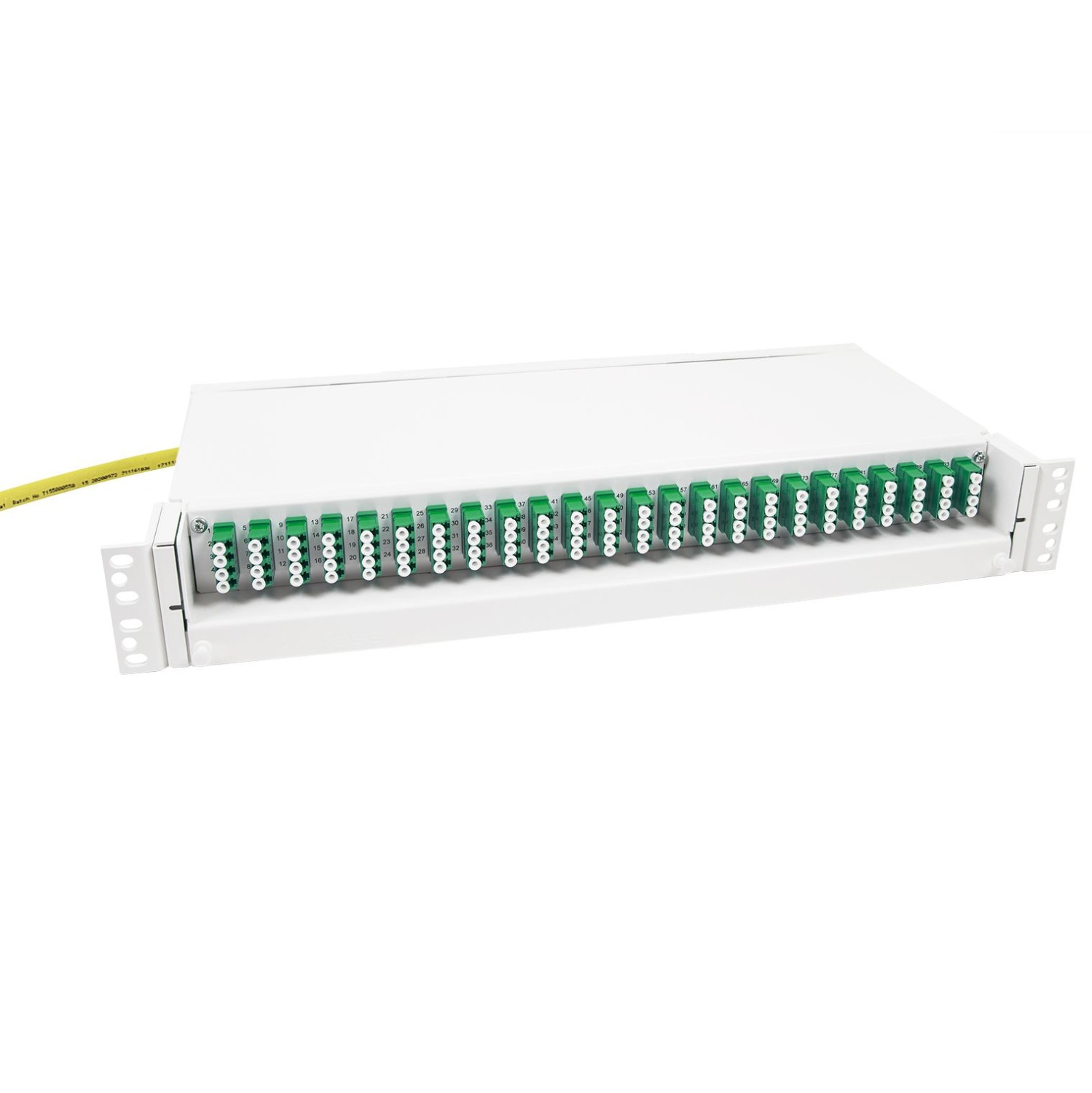

Fiber patch Panel 1.5U is delivered with a length of pre-terminated cable that is spliced to the incoming cable at another location. Can be mounted in 19" and metric cabinets/racks.
| Variant | Product Number | Length | Stock | Price | |||
|---|---|---|---|---|---|---|---|
| Variant: Patch Panel 1.5U, 96 LC/APC, 9/OS2, 10m fiber optic cable QXXI | Nummer: FPQ75-96SLCA-010 | Length 10 m |
Stock:
|
Price:
|
|
|
|
| Variant: Patch Panel 1.5U, 96 LC/APC, 9/OS2, 20m fiber optic cable QXXI | Nummer: FPQ75-96SLCA-020 | Length 20 m |
Stock:
|
Price:
|
|
|
|
| Variant: Patch Panel 1.5U, 96 LC/APC, 9/OS2, 30m fiber optic cable QXXI | Nummer: FPQ75-96SLCA-030 | Length 30 m |
Stock:
|
Price:
|
|
|
|
| Variant: Patch Panel 1.5U, 96 LC/APC, 9/OS2, 50m fiber optic cable QXXI | Nummer: FPQ75-96SLCA-050 | Length 50 m |
Stock:
|
Price:
|
|
|
|
- Cable: QXXI, loose tube, fire retardant and halogen free, yellow
- Fibre type: single mode according to ITU-T G.657A1, EN 50173-1 OS2
- Quality: IEC 61755-1 class C1
- CWDM/DWDM ready
- Can be mounted in 19" and metric cabinets/racks
Always use the correct accessories for the patch panel. This will ensure good communications and simplify operations and maintenance. See datasheet for available accessories
SPECIFICATIONS
Materials: Aluminium White, RAL9010 or black, RAL9011
Dimensions: 66 x 484 (19”) x 235 mm (H x W x D) May be converted to metrical
Weight: 1.7 kg
Capacity (no. of connectors): 96 LC 48 SC, E2000 24 FC, ST
Description
The Panel is part of the FP PRO series and is delivered in painted aluminium. The panel has a drawer that ensures simple assembly and later maintenance of cables and connectors. The panel may be delivered for most optical interfaces and have a capacity of up to 96 LC connectors. In the back of the panel there are 4 cable entrances, 2 on each side. For termination of many small cables a special cable entrance may be delivered.
Accessories
The accessories for the FP70 shall secure the installation and give good fibre and cable administration. Separate installation sets are used to ensures fast and secure installation. Cable guides in 2 sizes guides the patch cords to the side of the rack. A storage unit may be used for horizontal storage of excess cords when vertical storage is not available. A number of acrylic covers may be used to prevent accidental damage to the connectors. Label covers in different sizes may be used both as protection and labelling.
| Panel og stativ | |
|---|---|
| Size | 1.5U |
| Fiber type | Single mode |
| Contact | LC |
