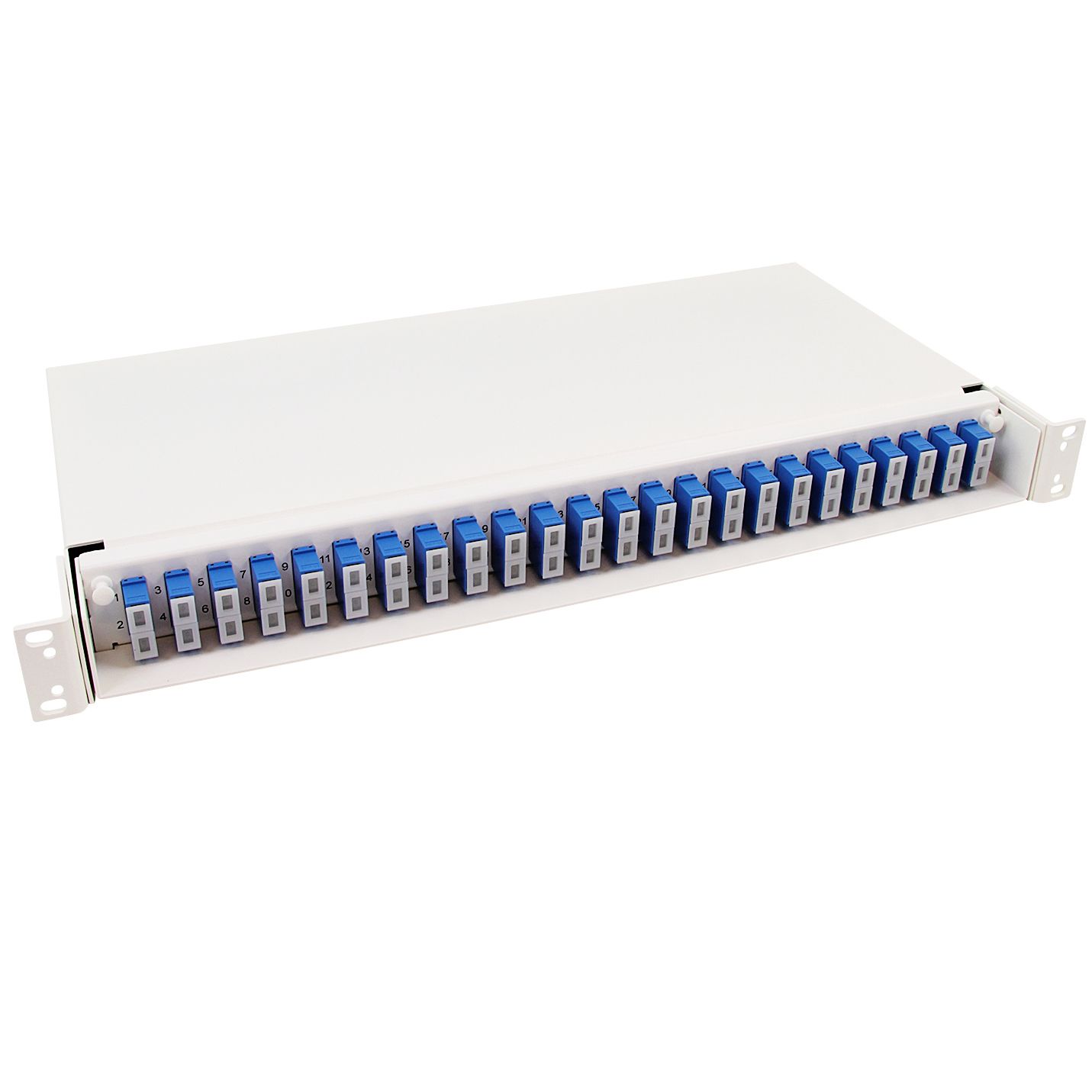

Panel FP65 PRO, SC/PC, adapter, SM
Fiber optic patch panel 1U with pre-assembled single mode SC/PC adapters. The panel is delivered with an integrated installation set that will simplify installation and ensure that all requirements for bend diameters are adhered to.
| Variant | Product Number | Number of fibres | Stock | Price | |||
|---|---|---|---|---|---|---|---|
| Variant: Patch Panel 1U, 8 SC/PC, adapter, SM | Nummer: FP65-8SSC-A | Number of fibres 8 |
Stock:
|
Price:
|
|
|
|
| Variant: Patch Panel 1U, 12 SC/PC, adapter, SM | Nummer: FP65-12SSC-A | Number of fibres 12 |
Stock:
|
Price:
|
|
|
|
| Variant: Patch Panel 1U, 24 SC/PC, adapter, SM | Nummer: FP65-24SSC-A | Number of fibres 24 |
Stock:
|
Price:
|
|
|
|
| Variant: Patch Panel 1U, 48 SC/PC, adapter, SM | Nummer: FP65-48SSC-A | Number of fibres 48 |
Stock:
|
Price:
|
|
|
|
- Height: 1U (44 mm)
- Up to 24 duplex pre-mounted SC adapters (48 fibres)
- Single mode PC (blue)
- Adapter holes that are not in use are fitted with blind plugs
- Pre-mounted installation kit for pigtails or pre-terminated cable
Always use the correct accessories for the patch panel. This will ensure good communications and simplify operations and maintenance. See datasheet for available accessories
SPECIFICATIONS
Materials: Aluminium White, RAL9010
Dimensions: 44 x 484 (19”) x 240 mm (H x W x D) May be converted to metrical
Weight: 1.2 kg
Capacity (no. of connectors):
96 LC (144 when using special front)
48 SC
24 FC, ST
Description
The Panel is part of the FP PRO series and is delivered in white or black painted aluminium. There is room for 96 LC connectors on the front. For special needs a front with room for 144 LC connectors may be delivered. The panel is delivered with an integrated installation set that will simplify installation and ensure that all requirements for bend diameters are adhered to.
Accessories
The accessories for the FP60 shall secure the installation and give good fibre and cable administration. A 1U cable guide may be placed under the panel to guide the patch cords to the side of the rack. When saving space is important a 0.5U cable guide may be mounted directly on the panel, making the total height 1U. Label covers and acrylic covers for protection are also available.
| Panel og stativ | |
|---|---|
| Size | 1U |
| Fiber type | Single mode |
| Contact | SC |
