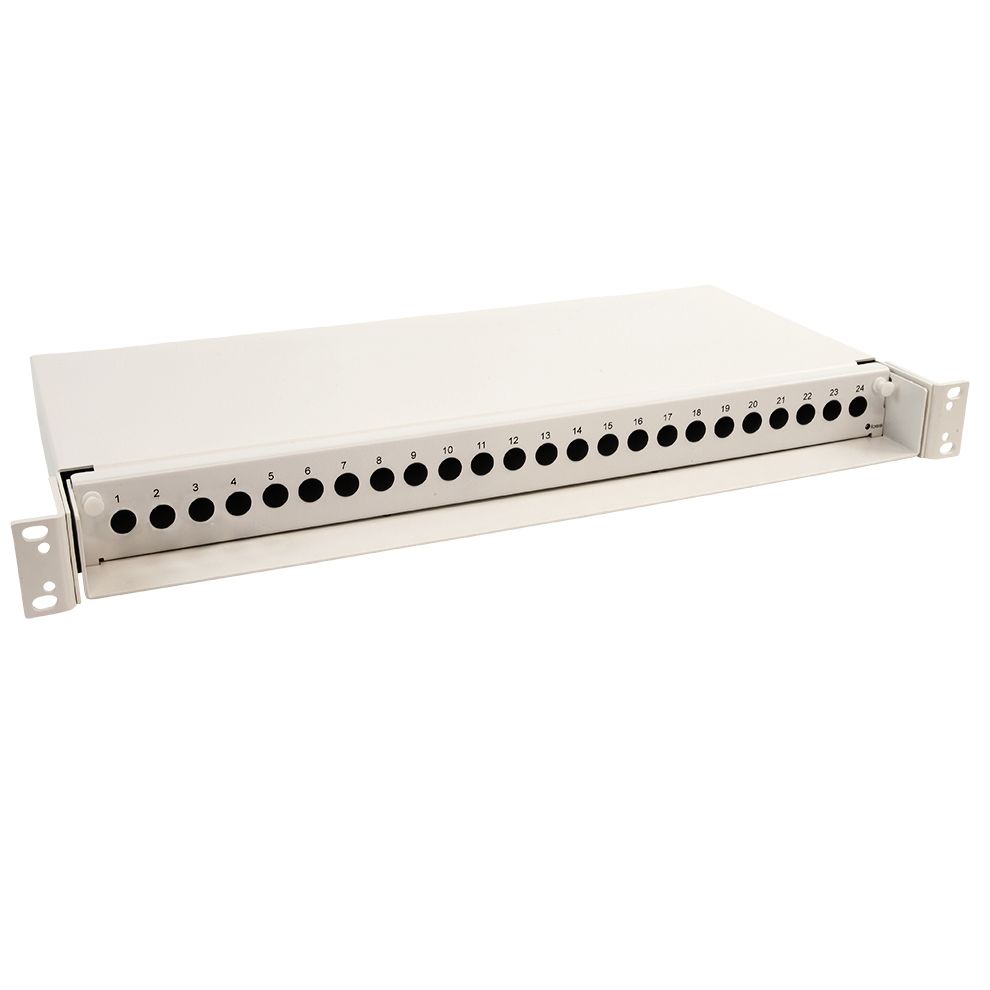

Fiber optic patch Panel 1U, 24 hole ST/FC

SKU: FP60111
Stock:
excl. VAT

The Fiber optic patch panel 1U for ST/FC adapters is delivered in white painted aluminium. There is room for 96 LC connectors on the front. For special needs a front with room for 144 LC connectors may be delivered. The panel is delivered with an integrated installation set that will simplify installation and ensure that all requirements for bend diameters are adhered to.

  • For terminating fibre optical cables, 1U
  • 44x482x240 mm (HxBxD)
  • Up to 24 ST- or FC connectors
  • Is delivered with pre-mounted installation kit
  • Prepared for pre-terminated cable
  • Prepared for splicing pigtails
  • Can be mounted in 19" and metric cabinets/racks (reversible mounting brackets)
  • Adjustable in depth (adjustable mounting brackets)
  • White painted aluminum RAL9010

SPECIFICATIONS

Materials: Aluminium  White, RAL9010 or black, RAL9011

Dimensions: 44 x 484 (19”) x 240 mm (H x W x D) May be converted to metrical

Weight: 1.2 kg

Capacity (no. of connectors):
96 LC 144 when using special front
48 SC
24 FC, ST


Description
The Panel is part of the FP PRO series and is delivered in white or black painted aluminium. There is room for 96 LC connectors on the front. For special needs a front with room for 144 LC connectors may be delivered. The panel is delivered with an integrated installation set that will simplify installation and ensure that all requirements for bend diameters are adhered to.

Accessories
The accessories for the FP60 shall secure the installation and give good fibre and cable administration. A 1U cable guide may be placed under the panel to guide the patch cords to the side of the rack. When saving space is important a 0.5U cable guide may be mounted directly on the panel, making the total height 1U. Label covers and acrylic covers for protection are also available.

Panel og stativ
Size 1U
Contact ST/FC
