4+2 channel CWDM, Fiber optic patch pane 1U, 1471/1491-1591/1611 + 2 x Upgrade

SKU: FP65-4-2CWDM-SSC
Stock:
excl. VAT

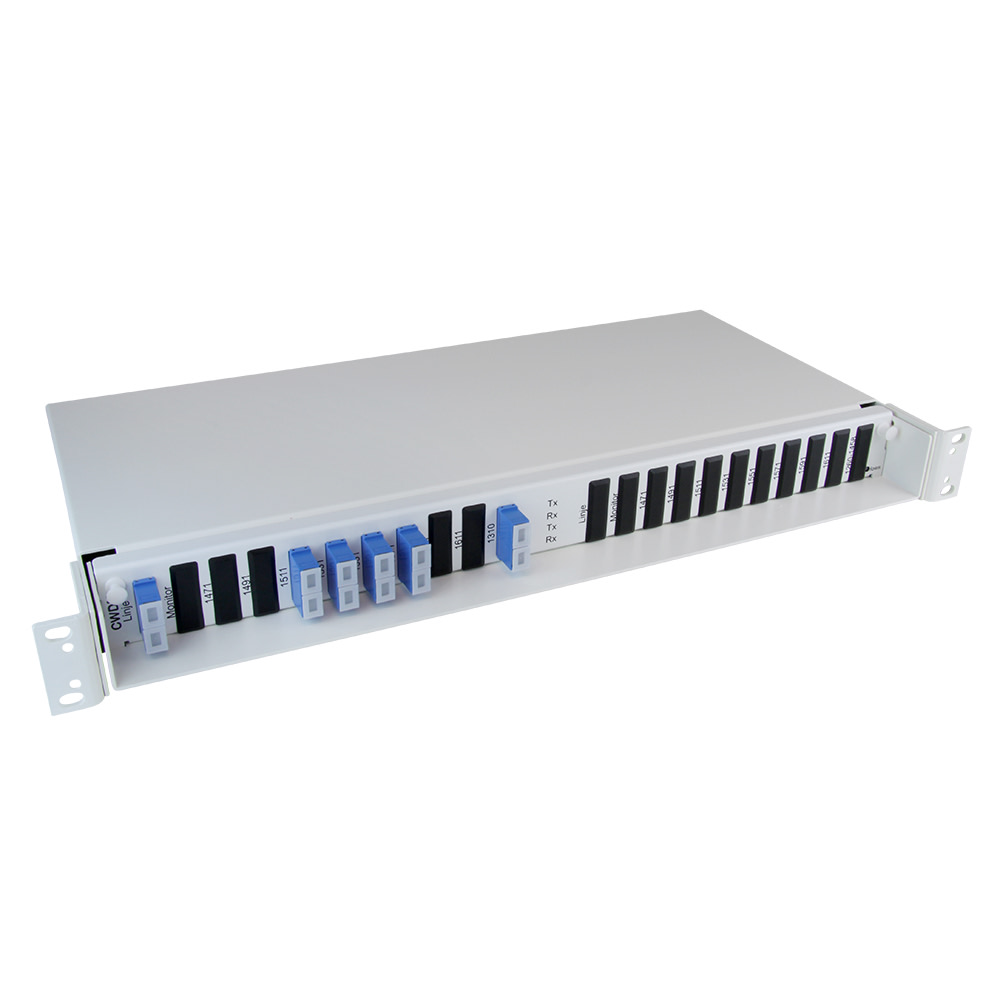

Fiber optic patch panel with a built-in CWDM multiplexer and demultiplexer, terminated in SC/PC connectors. Passive CWDM units are a reliable and reasonable method for transferring several wavelengths/signals over the same fibre (wavelength multiplexing).

The patch panel comes with a built-in CWDM multiplexer .

  • Independent of protocol and bit speed
  • Can be mounted in 19" cabinet/rack
  • Passive, does not need any power supply

DESCRIPTION
CWDM may be delivered in several types of panels and boxes from FOSS.
The most common are:

  • FPM76-modular panel
  • FP65-1U panel
  • FPD76- wall box DIN
  • May also be delivered in most splice closures.

    They are based on reliable passive technology and are delivered with SC or LC interface with PC or APC polished connectors.


    SYSTEM DESCRIPTION
    Passive CWDM units are a reliable and reasonable method for transferring several wavelengths/signals over the same fibre (wavelength multiplexing). In this way you may increase the capacity of existing fibre-cable significantly. Combined with OADM you may add or drop wavelengths on the way between the end points. A big advantage of using passive wavelength multiplexing is also that the method is protocol– and bitrate independent.

    A complete system with components for two-way communication (multiplexer and de-multiplexer) in both ends are made using two units.


    SPECIFICATIONS

    Operating temperature: -40 °C to 85 °C

    Insertion loss*:
    4 channel/2xUpgrade:       < 3.4/3.4 dB       < 2.9/2.9 dB typically
    8 channel:                          < 3.6 dB             < 3.0 dB typically
    8L(lower band):                  < 3.8 dB             < 3.1 dB typically
    8 channel/WB:                   < 3.6/3.6 dB       < 3.0/3.0 dB typically
    8 channel/WB + Monitor:   < 4.1/4.1 dB       < 3.5/3.5 dB typically
    18 channel:                        < 4.6 dB             < 4.0 dB typically
    8-channel/WB (3-port):      < 4.6/5.6 dB       < 4.0/4.5 dB typically
    * Loss over a system (2 panels and 4 connector-pairs)

    Wavelength (according to ITU-T G.694.2) :
    4 channel: 1471, 1491, 1591, 1611
    8 channel: 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611 or   1271, 1291, 1311, 1331, 1351, 1371, 1431, 1451 nm
    18 channel: 1271, 1291, 1311, 1331, 1351, 1371, 1391, 1411, 1431, 1451, 1471, 1491, 1511, 1531, 1551, 1571, 1591 and 1611 nm

    Pass band:
    CWDM channels: +/- 6.5 nm
    1310 nm: +/- 50 nm
    Upgrade 1/WB: 1260-1458 nm
    Upgrade 2: 1504-1577 nm

    Monitor output (where available): ca. 20 dB below the line signal (1%)

Panel og stativ
Size 4+2
Fiber type panel
Contact SC
