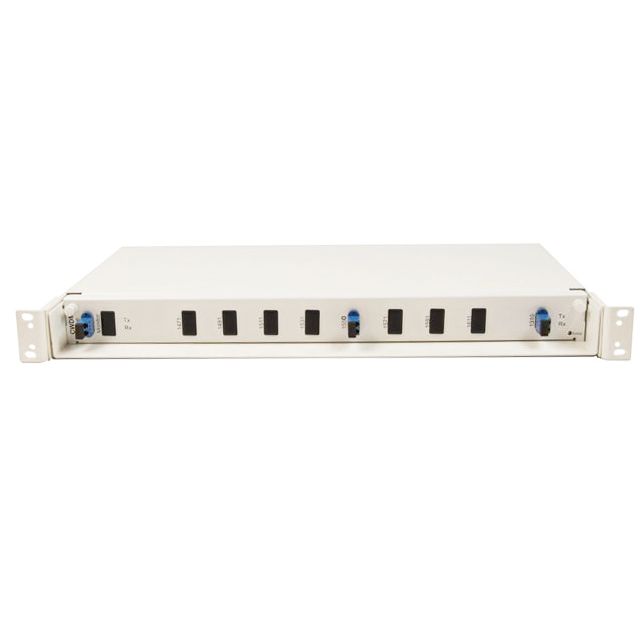

1 x WDM, 1310/1550 wide band in fiber optic Patch Panel with SC/PC connectors

excl. VAT

Fiber optic patch panel with WDM multiplexer and demultiplexer terminated in SC connectors. Passive WDM panels are a reliable and reasonable method for transferring 2 wavelengths signals over the same fiber (wavelength multiplexing).

2-channel WDM, 1310/1550, wide banded

The patch panel comes with WDM multiplexer and demultiplexer

  • 1310/1460-1620 nm
  • Can be combined with 4 and 8-channel CWDM
  • Independent of protocol and bit speed
  • Insertion loss; 2.0 dB over 2 panels
  • Can be mounted in 19" and ETSI cabinet/rack
  • Passive, does not need any power supply

WDM may be delivered in several types of panels and boxes from Foss.
The most common are:

• FPM76-modular panel
• FP65-1U panel
• FPD76- wall box DIN
May also be delivered in most splice closures.

They are based on reliable passive technology and are delivered with SC or LC interface with PC or APC polished connectors.

Passive WDM panels/modules are a reliable and reasonable method for transferring 2 wavelengths/signals over the same fibre (wavelength multiplexing). In this way you may increase the capacity of existing fibre-cable. A big advantage of using passive wavelength multiplexing is also that the method is protocol– and bitrate independent.

A complete system with components for two-way communication (multiplexer and de-multiplexer) in both ends are made with two panels/modules .


Dimensions (HxWxD):
Panel: 44 x 484 (19”) x 240 mm
Module: 130 x 35 x 210 mm

Panel: Ca. 2 kg depending on equipment
Module: 0,2 - 0,5 kg depending on equipment

Operating temperature:  -40 °C to 85 °C

Insertion loss*:   < 2.8 dB

Wavelength:  1260-1360/1460-1620 nm

Isolation, adjacent channel: > 45 dB

* Loss over a system (2 panels and 4 connector-pairs)
