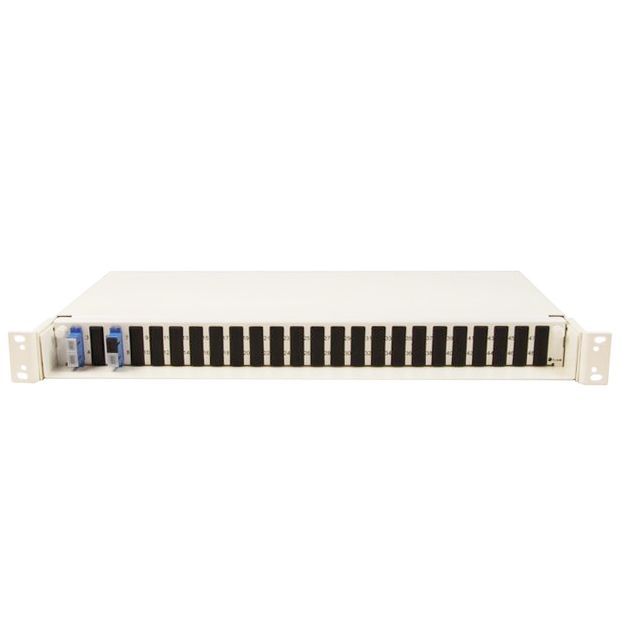

6x1:2 Fiber optic splitter in Patch Panel with SC/APC connectors

The patch panel comes with one or more 1:2 splitters. Other types of connectors can be delivered upon request.

• Independent of protocol and bit speed
• Can be mounted in 19" and ETSI cabinet/rack
• Passive - does not need electrical power supply.

See also under splitter in modular patch panel for information about alternative panels with plug-in modules.

SPECIFICATIONS

Panel:
Materials: Aluminium  White, RAL9010 or black, RAL9011

Dimensions: 44 x 484 (19”) x 240 mm (H x W x D) May be converted to metrical

Weight: 1.2 kg

Splitter:
Dimensions components:
1:2                     Ø3 x 65 mm                 FBT-type
1:2, 1:4, 1:8         4 x 4 x 40 mm             PLC-type
1:16                    4 x 5 x 45 mm             PLC-type
1:32                   4 x 7 x 55 mm              PLC-type
1:64                  4 x 12 x 60 mm             PLC-type

Operating temperature:  -40 °C to 85 °C

Insertion loss*:
1:2-10/90        <11,6/1,2 dB        FBT-type
1:2-20/80       <8,3/1,7 dB        FBT-type
1:2-30/70       <6,4/2,5 dB       FBT-type
1:2-40/60       <5,1/3,2 dB        FBT-type
1:2-50/50       <4,2/4,2 dB       PLC-type
1:4                    <7,6 dB              PLC-type
1:8                    <10,9 dB            PLC-type
1:16                   <14,0 dB            PLC-type
1:32                  <17,5 dB            PLC-type
1:64                  <21,0 dB            PLC-type

Wavelength:
FBT-type:    1310 ± 20, 1490 ± 20 and 1550 ± 20 nm
                      Typically less than 0,5 dB increase in loss at other wavelengths.
PLC-type:    1260 - 1650 nm

* Insertion loss included 2 connector-pairs
