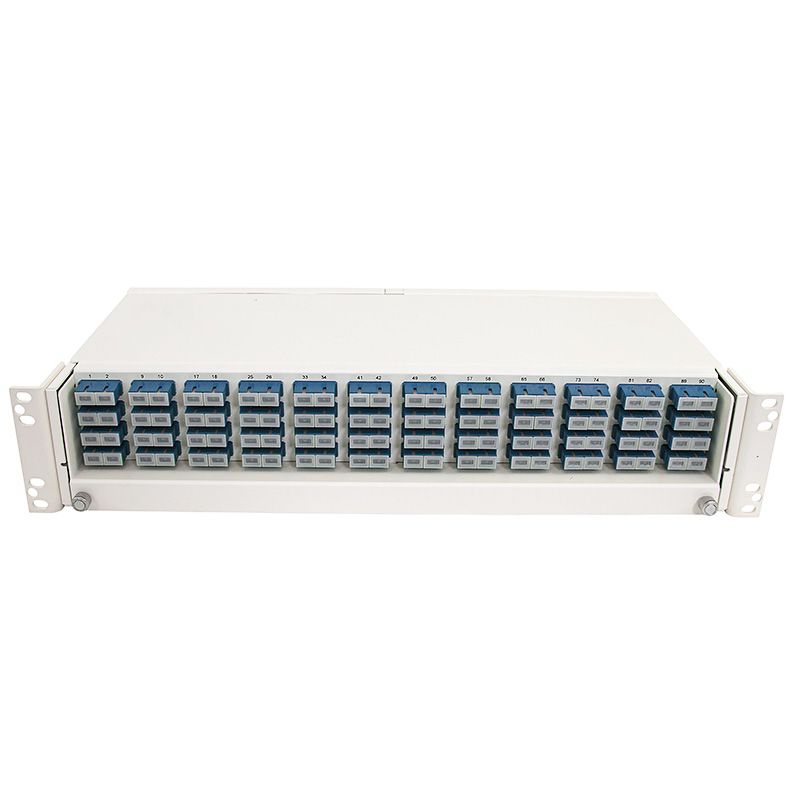

Panel FP85 PRO, SC/PC, adapter, SM

Foss Fiber Optics
From: excl. VAT
See variants

Fiber optic patch panel 2U with pre-assembled single mode SC/PC adapters. The panel has a drawer that ensures simple assembly and later maintenance of cables and connectors. In the back of the panel there are 4 cable entrances, 2 on each side.

Variant Product Number Number of fibres Stock Price
Variant: Patch Panel 2U, 48 SC/PC, adapter, SM Nummer: FP85-48SSC-A Number of fibres 48
Stock:
Price:
Variant: Fiber optic patch panel 2U with 96 pre-assembled single mode SC/PC adapters. Nummer: FP85-96SSC-A Number of fibres 96
Stock:
Price:
  • Height: 2U (88 mm)
  • Up to 48 duplex SC adapters (96 fibre)
  • Single mode PC (blue)
  • Adapter holes that are not in use are fitted with blind plugs
  • Pre-mounted installation kit for pigtails or pre-terminated cable

SPECIFICATIONS

Materials: Aluminium  White paint, RAL9010

Dimensions: 88 x 484 (19”) x 235 mm (H x W x D) May be converted to metrical

Weight: 1.8 kg

Capacity (no. of connectors):
96  SC, LC
192 (only pre-terminated cable) LC

Description
The Panel is part of the FP PRO series and is delivered in white painted aluminium. The panel has a drawer that ensures simple assembly and later maintenance of cables and connectors. The panel is delivered with SC or LC optical interfaces and have a capacity of up to 192 LC connectors or 96 SC. In the back of  the panel there are 4 cable entrances, 2 on each side.



Accessories
The accessories for the FP80 shall secure the installation and give good fibre and cable administration. Separate installation sets are used to ensures fast and secure installation. Cable guides, guides the patch cords to the side of the rack. A storage unit may be used for horizontal storage of excess cords when vertical storage is not available. A number of acrylic covers may be used to prevent accidental damage to the connectors. Label plates in different sizes may be used both as protection and labelling.

Panel og stativ
Size 2U
Fiber type Single mode
Contact SC
Accessory products
Fiber optic Cable guide

Cable guide for easy patch cord guiding used with fiber optic panel

02-NCD513
Fiber optic Cable guide, 0.5U

Cable guide for easy patch cord guiding used with fiber optic panel. 0.5U white painted aluminum

FP70301
Fiber optic Cable guide, 1U

Cable guide for easy patch cord guiding used with fiber optic panel. 1U white painted aluminum

FP70361
Fiber optic Cable guide, fingers, 0.5U

Cable guide for easy patch cord guiding used with fiber optic panel. 1U white painted aluminum

FP70390
Cage nuts, M6, 50-pack

Cage nut for racks and cabinets. Used together with mounting screw for fastening panels, shelves and similar to the profile rails of the cabinet.

2094200
Cover, 3U

Bronze Colored Plexiglas Cover to protect connectors and patch cords against accidental damages.

FP70333
Cover, 4U

Bronze Colored Plexiglas Cover to protect connectors and patch cords against accidental damages

FP70334
Label cover, 1,5U

FP70381
Label cover, 1U

FP70380
Label cover, 2U

FP70382
Label cover, 3U

FP70383
Cable Storage unit, 0.5U

Storage unit for mounting under fiber optic panel used for storing excess lengths of patch cords.

FP70310
Storage unit 2U, for excess lengths of patch cords, 19" and metrical racks

Storage unit for mounting under fiber optic panel. Used for storing excess lengths of patch cords. 2U white painted aluminum, 24 rooms for storing up to 5 m patch cord.

FP70325
