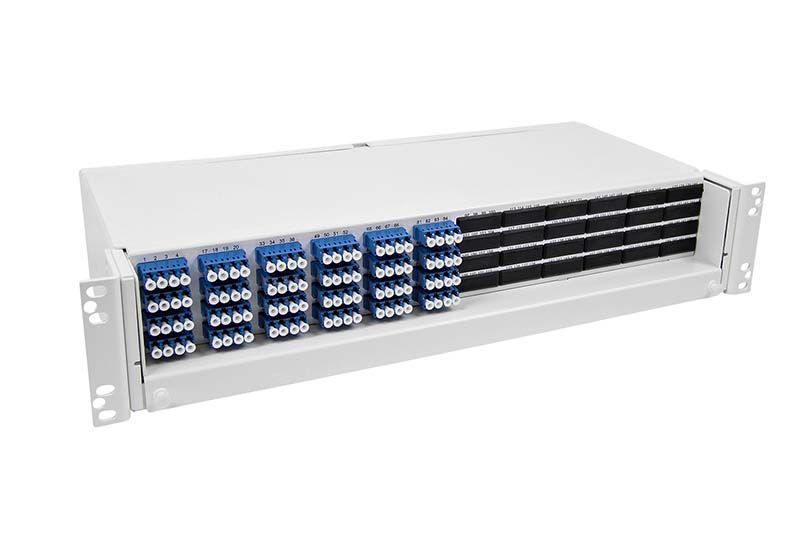

Fiber optic Patch Panel 2U, 96 LC/PC adapters and pigtails pre-assembled, 9/OS2

SKU: FP85-96SLC
Stock:
excl. VAT

The panel has a drawer that ensures simple assembly and later maintenance of cables and connectors. In the back of the panel there are 4 cable entrances, 2 on each side.

  • Height: 2U (88 mm)
  • Up to 96 LC/PC connectors
  • Adapter holes that are not in use are fitted with blind plugs
  • Bend insensitive single mode fibre according to ITU-T G.657A1
  • Quality according to IEC 61755-1 class C2 (loss: 0.5 dB, return output;-45 dB)

SPECIFICATIONS

Materials: Aluminium  White paint, RAL9010

Dimensions: 88 x 484 (19”) x 235 mm (H x W x D) May be converted to metrical

Weight: 1.8 kg

Capacity (no. of connectors):  96  SC, LC  192 (only pre-terminated cable) LC


Description
The Panel is part of the FP PRO series and is delivered in white painted aluminium. The panel has a drawer that ensures simple assembly and later maintenance of cables and connectors. The panel is delivered with SC or LC optical interfaces and have a capacity of up to 192 LC connectors or 96 SC. In the back of  the panel there are 4 cable entrances, 2 on each side.

Accessories
The accessories for the FP80 shall secure the installation and give good fibre and cable administration. Separate installation sets are used to ensures fast and secure installation. Cable guides, guides the patch cords to the side of the rack. A storage unit may be used for horizontal storage of excess cords when vertical storage is not available. A number of acrylic covers may be used to prevent accidental damage to the connectors. Label plates in different sizes may be used both as protection and labelling.
