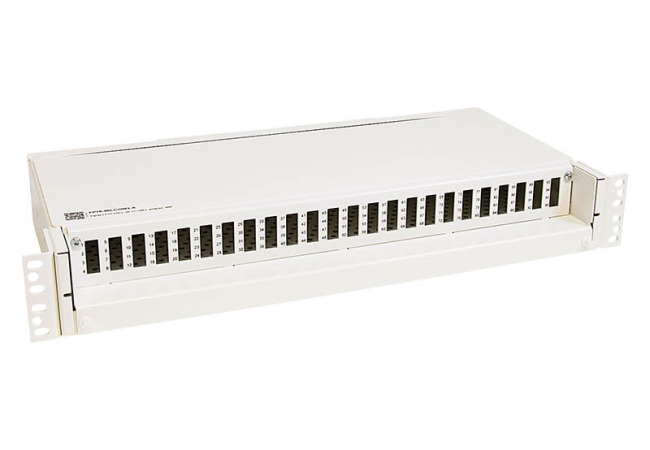

Fiber optic patch Panel 1.5U, 24 hole LC Quad

SKU: FP70109
Stock:
excl. VAT

The Fiber optic patch panel 1.5U for LC Quad adapters is delivered in painted aluminium for terminating fibre optical cables. The panel has a drawer that ensures simple assembly and later maintenance of cables and connectors. The panel may be delivered for most optical interfaces and have a capacity of up to 96 LC connectors. In the back of  the panel there are 4 cable entrances, 2 on each side. For termination of many small cables a special cable entrance may be delivered.

  • For terminating fibre optical cables, 1.5U
  • 66x482x235 mm (HxBxD)
  • Up to 96 LC connectors
  • Retractable drawer
  • Prepared for pre-terminated cable
  • Prepared for splicing pigtails
  • Can be mounted in 19" and metric cabinets/racks (reversible mounting brackets)
  • Adjustable in depth (adjustable mounting brackets)
  • White painted aluminum
  • Broad range of accessories

SPECIFICATIONS

Materials: Aluminium  White, RAL9010 or black, RAL9011

Dimensions: 66 x 484 (19”) x 235 mm (H x W x D) May be converted to metrical

Weight: 1.7 kg

Capacity (no. of connectors):
96 LC
48 SC, E2000
24 FC, ST


Description
The Panel is part of the FP PRO series and is delivered in painted aluminium. The panel has a drawer that ensures simple assembly and later maintenance of cables and connectors. The panel may be delivered for most optical interfaces and have a capacity of up to 96 LC connectors. In the back of  the panel there are 4 cable entrances, 2 on each side. For termination of many small cables a special cable entrance may be delivered.

Accessories
The accessories for the FP70 shall secure the installation and give good fibre and cable administration. Separate installation sets are used to ensures fast and secure installation. Cable guides in 2 sizes guides the patch cords to the side of the rack. A storage unit may be used for horizontal storage of excess cords when vertical storage is not available. A number of acrylic covers may be used to prevent accidental damage to the connectors. Label covers in different sizes may be used both as protection and labelling.

Panel og stativ
Size 1.5U
Contact LC
