Panel FP65 PRO, SC/APC, pigtails, 9/OS2

From: excl. VAT
See variants

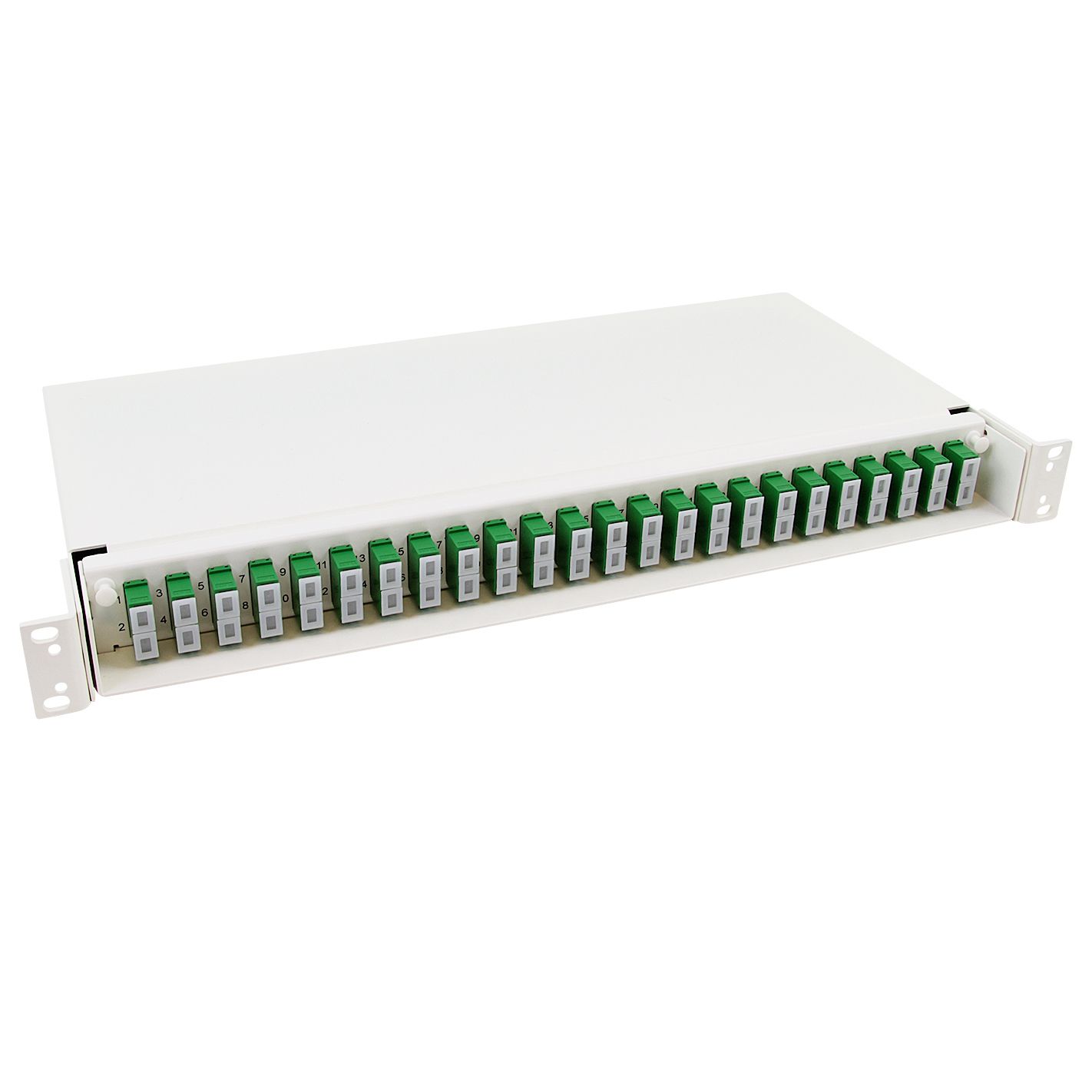

Fiber optic patch panel 1U with pre-assembled single mode SC/APC adapters and pigtails.

Variant Product Number Number of fibres Stock Price
Variant: Panel FP65 PRO, 8 SC/APC, pigtails, 9/OS2 Nummer: FP65-8APC8 Number of fibres 8
Variant: Panel FP65 PRO, 12 SC/APC, pigtails, 9/OS2 Nummer: FP65-12APC8 Number of fibres 12
Variant: Panel FP65 PRO, 24 SC/APC, pigtails, 9/OS2 Nummer: FP65-24APC8 Number of fibres 24
Variant: Panel FP65 PRO, 48 SC/APC, pigtails, 9/OS2 Nummer: FP65-48APC8 Number of fibres 48
  • Height: 1U (44 mm)
  • Up to 48 SC/APC connectors
  • Adapter holes that are not in use are fitted with blind plugs
  • Bend insensitive single mode fibre acc. to ITU-T G.657A1
  • Quality according to IEC 61755-1 class C1 (loss: 0.5 dB, return output: -60 dB)


Materials: Aluminium  White, RAL9010 or black, RAL9011

Dimensions: 44 x 484 (19”) x 240 mm (H x W x D) May be converted to metrical

Weight: 1.2 kg

Capacity (no. of connectors):  96 LC 144 when using special front  48 SC  24 FC, ST

The Panel is part of the FP PRO series and is delivered in white or black painted aluminium. There is room for 96 LC connectors on the front. For special needs a front with room for 144 LC connectors may be delivered. The panel is delivered with an integrated installation set that will simplify installation and ensure that all requirements for bend diameters are adhered to.

The accessories for the FP60 shall secure the installation and give good fibre and cable administration. A 1U cable guide may be placed under the panel to guide the patch cords to the side of the rack. When saving space is important a 0.5U cable guide may be mounted directly on the panel, making the total height 1U. Label covers and acrylic covers for protection are also available.

Panel og stativ
Size 1U
Fiber type Single mode
Contact SC
