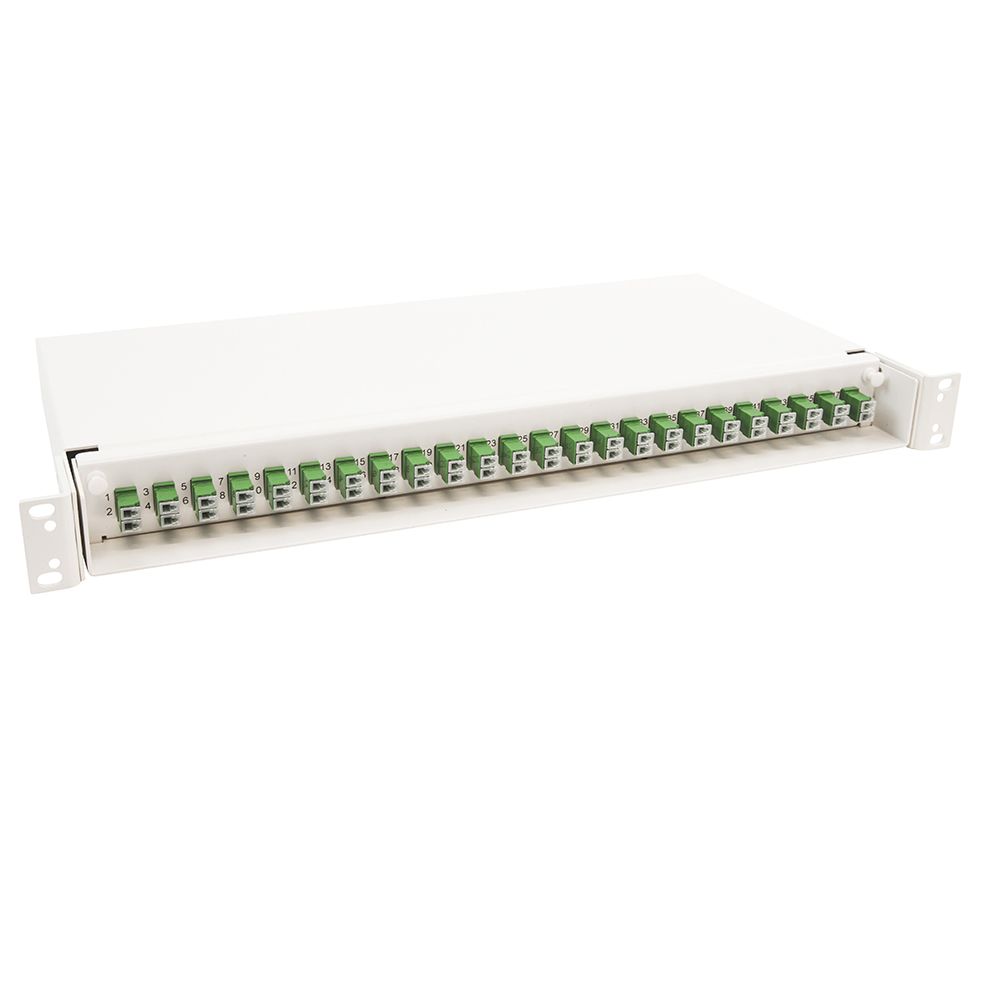

Panel FP65 PRO, LC/APC, pigtails, 9/OS2
Fiber optic patch panel 1U comes with factory installed pigtails, prepared for splicing with inbound cable. Tested according to both our own quality measures and international standards before they are sent to customers.
| Variant | Product Number | Number of fibres | Stock | Price | |||
|---|---|---|---|---|---|---|---|
| Variant: Fiber optic Patch Panel 1U, 8 LC/APC adapters and pigtails pre-assembled, 9/OS2 | Nummer: FP65-8SLCA | Number of fibres 8 |
Stock:
|
Price:
|
|
|
|
| Variant: Fiber optic Patch Panel 1U, 12 LC/APC adapters and pigtails pre-assembled, 9/OS2 | Nummer: FP65-12SLCA | Number of fibres 12 |
Stock:
|
Price:
|
|
|
|
| Variant: Fiber optic Patch Panel 1U, 24 LC/APC adapters and pigtails pre-assembled, 9/OS2 | Nummer: FP65-24SLCA | Number of fibres 24 |
Stock:
|
Price:
|
|
|
|
| Variant: Fiber optic Patch Panel 1U, 48 LC/APC adapters and pigtails pre-assembled, 9/OS2 | Nummer: FP65-48SLCA | Number of fibres 48 |
Stock:
|
Price:
|
|
|
|
- Height: 1U (44 mm)
- Up to 48 LC/APC connectors
- Adapter holes that are not in use are fitted with blind plugs
- Bend insensitive single mode fibre acc. to ITU-T G.657A1
- Quality according to IEC 61755-1 class C1 (loss: 0.5 dB, return output: 60 dB)
SPECIFICATIONS
Materials: Aluminium White, RAL9010 or black, RAL9011
Dimensions: 44 x 484 (19”) x 240 mm (H x W x D) May be converted to metrical
Weight: 1.2 kg
Capacity (no. of connectors): 96 LC 144 when using special front 48 SC 24 FC, ST
Description
The Panel is part of the FP PRO series and is delivered in white or black painted aluminium. There is room for 96 LC connectors on the front. For special needs a front with room for 144 LC connectors may be delivered. The panel is delivered with an integrated installation set that will simplify installation and ensure that all requirements for bend diameters are adhered to.
Accessories
The accessories for the FP60 shall secure the installation and give good fibre and cable administration. A 1U cable guide may be placed under the panel to guide the patch cords to the side of the rack. When saving space is important a 0.5U cable guide may be mounted directly on the panel, making the total height 1U. Label covers and acrylic covers for protection are also available.
| Panel og stativ | |
|---|---|
| Size | 1U |
| Fiber type | Single mode |
| Contact | LC |
