Panel, FP60 PRO, 24 hole E2000 DPX, 1U

SKU: FP60117
excl. VAT

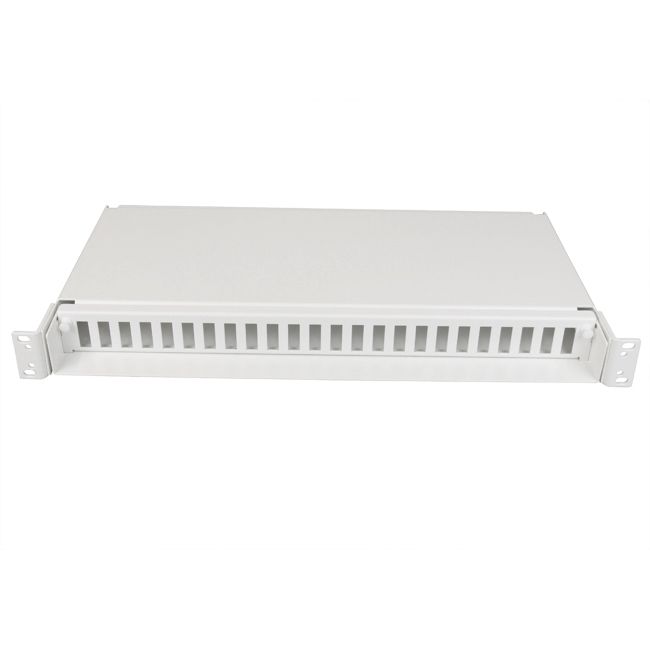

Fiber optic patch panel 1U for E2000 DPX adapters.

  • Panel for compact cabling in data rooms
  • Height: 1U
  • Prepared for pre-terminated cable
  • Prepared for splicing of pigtails
  • Wide range of accessories
  • For 19” or metric racks


    Materials: Aluminium  White, RAL9010 or black, RAL9011

    Dimensions: 44 x 484 (19”) x 240 mm (H x W x D) May be converted to metrical

    Weight: 1.2 kg

    Capacity (no. of connectors):
    96 LC 144 when using special front
    48 SC
    24 FC, ST

    The Panel is part of the FP PRO series and is delivered in white or black painted aluminium. There is room for 96 LC connectors on the front. For special needs a front with room for 144 LC connectors may be delivered. The panel is delivered with an integrated installation set that will simplify installation and ensure that all requirements for bend diameters are adhered to.

    The accessories for the FP60 shall secure the installation and give good fibre and cable administration. A 1U cable guide may be placed under the panel to guide the patch cords to the side of the rack. When saving space is important a 0.5U cable guide may be mounted directly on the panel, making the total height 1U. Label covers and acrylic covers for protection are also available.

Panel og stativ
Size 1U
Contact E2000
