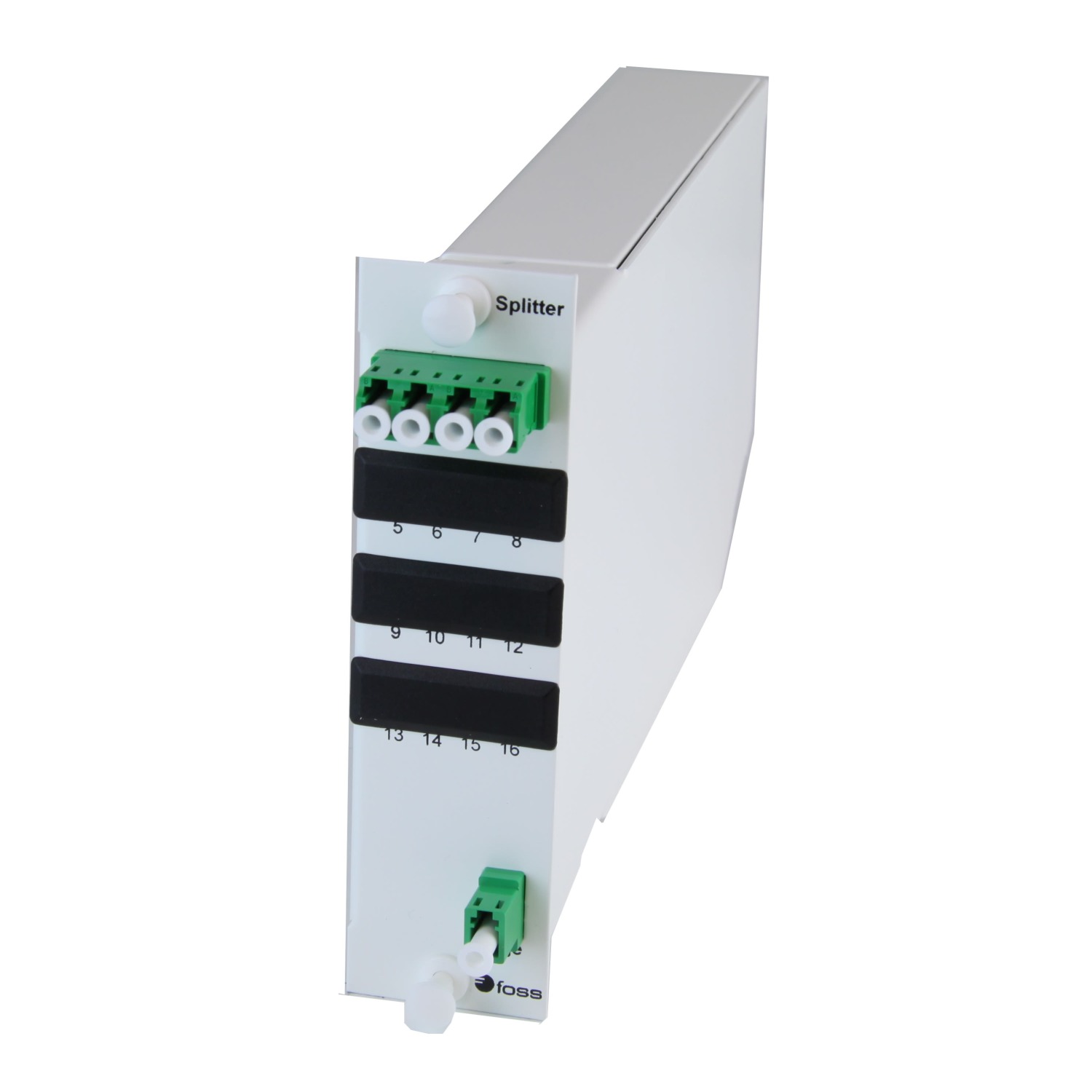

1:4 Fiber optic splitter in Cassette module with LC/APC connectors
Fiber optic module delivered complete with 1:4 splitter terminated in LC/APC connectors. The modules are inserted in a 1U or 3U panel. The 3U panel may be populated with up to 12 modules, the 1U panel with up to 3 modules, and they may be placed in any order in the panel.
- Passive splitters for distributing the signal to several fibres.
- Independent of wavelength.
- Delivered with 1:4 splitter.
- Delivered terminated with LC/APC connectors.
Description
The modules are inserted in a 1U or 3U panel . The 3U panel may be populated with up to 12 modules, the 1U panel with up to 3 modules, and they may be placed in any order in the panel. This ensures a flexible and modular system with simple access to adding modules at a later stage and also offers high density with the panel fully equipped. Each module is delivered complete with splitters terminated in LC connectors at the front. The panel is intended for mounting in 19” racks. See separate data sheet for details about the modules.
Specifications
Modul:
Dimensions (HxWxD):
133 x 488 (19”) x 240 mm 3U frame
44 x 488 (19”) x 240 mm 1U frame
Weight panel wo/modules:
ca. 2.4 kg 3U frame
ca. 1.5 kg 1U frame
Splitter:
Dimensions components:
1:2 Ø3 x 65 mm FBT-type
1:2, 1:4, 1:8 4 x 4 x 40 mm PLC-type
1:16 4 x 5 x 45 mm PLC-type
1:32 4 x 7 x 55 mm PLC-type
1:64 4 x 12 x 60 mm PLC-type
Operating temperature: -40 °C to 85 °C
Insertion loss*:
1:2-10/90 <11,6/1,2 dB FBT-type
1:2-20/80 <8,3/1,7 dB FBT-type
1:2-30/70 <6,4/2,5 dB FBT-type
1:2-40/60 <5,1/3,2 dB FBT-type
1:2-50/50 <4,2/4,2 dB PLC-type
1:4 <7,6 dB PLC-type
1:8 <10,9 dB PLC-type
1:16 <14,0 dB PLC-type
1:32 <17,5 dB PLC-type
1:64 <21,0 dB PLC-type
Wavelength:
FBT-type: 1310 ± 20, 1490 ± 20 and 1550 ± 20 nm
Typically less than 0,5 dB increase in loss at other wavelengths.
PLC-type: 1260 - 1650 nm
* Insertion loss included 2 connector-pairs
| Panel og stativ | |
|---|---|
| Contact | LC |
