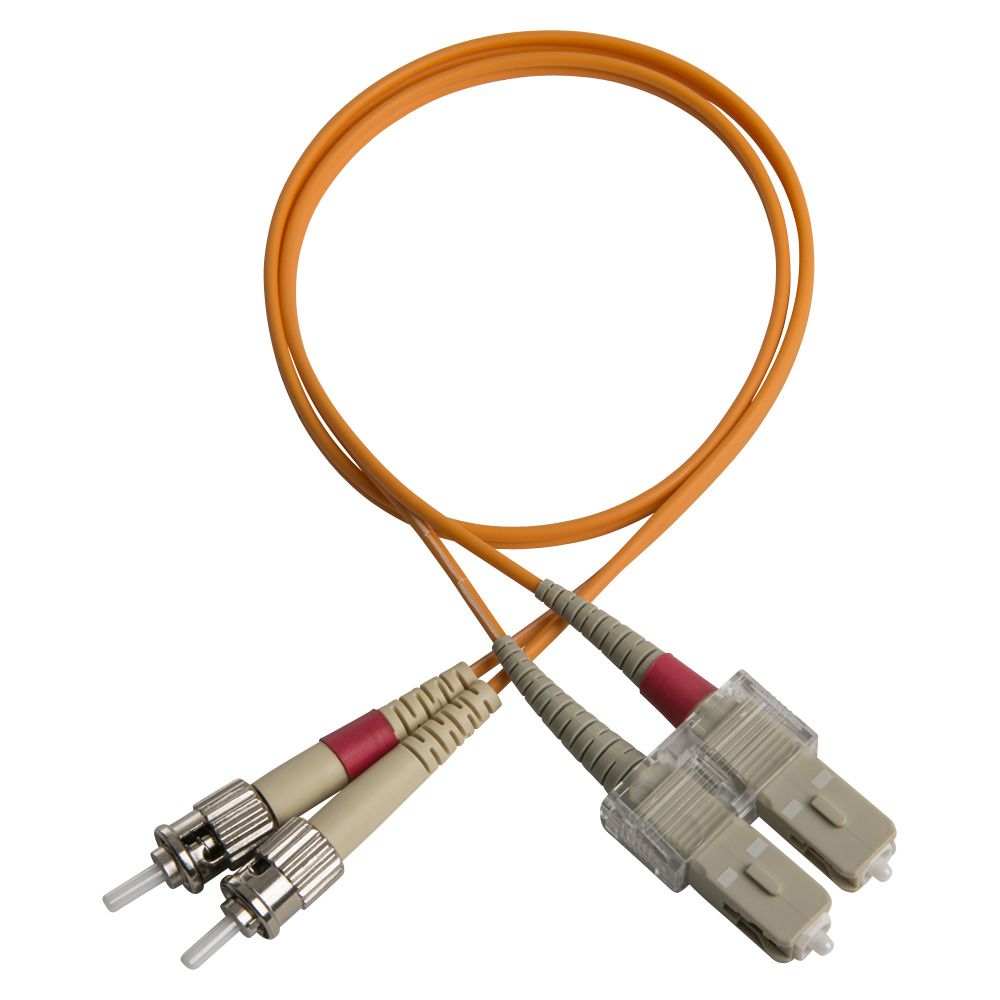

Duplex patch cord, ST-SC, 50/OM2/2000, orange
Fiber optic Duplex patch cords with connectors are delivered with the connectors in clips, and with A-B polarity. Multimode fiber optic duplex patch cord with ST-SC connectors. Orange fire retardant and halogen free cable-
| Variant | Product Number | Length | Stock | Price | |||
|---|---|---|---|---|---|---|---|
| Variant: ST-SC Fiber optic Duplex patch cords cable 1m orange, 50/OM2/2000 | Nummer: 8-4B17-010-E | Length 1 m |
Stock:
|
Price:
|
|
|
|
| Variant: ST-SC Fiber optic Duplex patch cords cable 2m orange, 50/OM2/2000 | Nummer: 8-4B17-020-E | Length 2 m |
Stock:
|
Price:
|
|
|
|
| Variant: ST-SC Fiber optic Duplex patch cords cable 3m orange, 50/OM2/2000 | Nummer: 8-4B17-030-E | Length 3 m |
Stock:
|
Price:
|
|
|
|
| Variant: ST-SC Fiber optic Duplex patch cords cable 5m orange, 50/OM2/2000 | Nummer: 8-4B17-050-E | Length 5 m |
Stock:
|
Price:
|
|
|
|
Duplex multimode patch cords are delivered as 2-fibre figure-8 cable. These are offered in a number of different configurations with different connectors, fibre types and lengths.
- 2.0 mm 2-fibre figure-8 cable (zip-cord)
- 2.8 mm on request
- LC, SC, ST, FC
- 50/125 OM-2
- Orange fire retardant and halogen free cable
Duplex patch cords with LC- and SC- connectors are delivered with the connectors in clips, and with A-B polarity. Duplex patch cords may also be delivered with A-A polarity on request.
Specifications
Fibre type and cable colour:
Multimode 50/125, OM-4 Violet
Multimode 50/125 OM-3 Aqua
Multimode 50/125 OM-2 Orange
Multimode 62.5/125 OM-1 Grey
Outer diameter: 2.0 mm x 4.0 mm
Flame: Flame retardant and halogen free, IEC 60332-3-24, 60332-1-2, 61034, 60754-1
Insertion loss*: < 0.3 dB (multimode LC and SC, category OM-4 and OM-3 < 0.5 dB (others)
Min. bend radius: 10 mm (operation), 30 mm (installation)
Temperature range: -20 oC to 60 oC
*additional quality grades are available upon request. Please see datasheet DB4615, Quality Grades.
