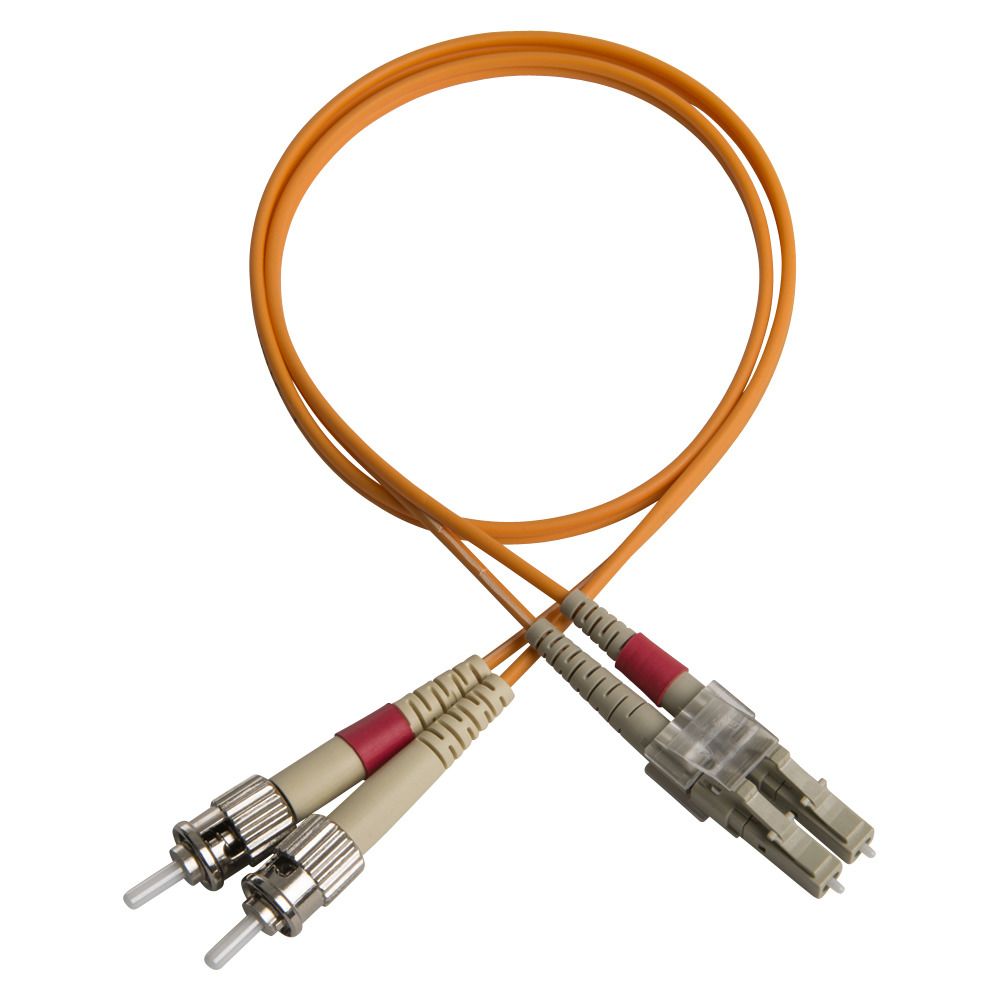

Duplex patch cord, ST-LC, 50/OM2/2000, orange

From: excl. VAT
See variants

Fiber optic Duplex patch cords with connectors are delivered with the connectors in clips, and with A-B polarity. Multimode fiber optic duplex patch cord with ST-LC connectors. Orange fire retardant and halogen free cable

Variant Product Number Length Stock Price
Variant: ST-LC Fiber optic Duplex patch cords cable 1m orange, 50/OM2/2000 Nummer: 8-4B1L-010-E Length 1 m
Stock:
Price:
Variant: ST-LC Fiber optic Duplex patch cords cable 2m orange, 50/OM2/2000 Nummer: 8-4B1L-020-E Length 2 m
Stock:
Price:
Variant: ST-LC Fiber optic Duplex patch cords cable 3m orange, 50/OM2/2000 Nummer: 8-4B1L-030-E Length 3 m
Stock:
Price:
Variant: ST-LC Fiber optic Duplex patch cords cable 5m orange, 50/OM2/2000 Nummer: 8-4B1L-050-E Length 5 m
Stock:
Price:

Duplex multimode patch cords are delivered as 2-fibre figure-8 cable. These are offered in a number of different configurations with different connectors, fibre types and lengths.

  • 2.0 mm 2-fibre figure-8 cable (zip-cord)
  • 2.8 mm on request
  • LC, SC, ST, FC
  • 50/125 OM-2
  • Orange fire retardant and halogen free cable

Duplex patch cords with LC- and SC- connectors are delivered with the connectors in clips, and with A-B polarity. Duplex patch cords may also be delivered with A-A polarity on request.


Specifications

Fibre type and cable colour:
       Multimode 50/125, OM-4    Violet
       Multimode 50/125 OM-3     Aqua
       Multimode 50/125 OM-2     Orange
       Multimode 62.5/125 OM-1   Grey

Outer diameter:   2.0 mm x 4.0 mm

Flame:   Flame retardant and halogen free, IEC 60332-3-24, 60332-1-2, 61034, 60754-1

Insertion loss*:   < 0.3 dB (multimode LC and SC, category OM-4 and OM-3  < 0.5 dB (others)

Min. bend radius:   10 mm (operation), 30 mm (installation)

Temperature range:   -20 oC to 60 oC
*additional quality grades are available upon request. Please see datasheet DB4615, Quality Grades.
