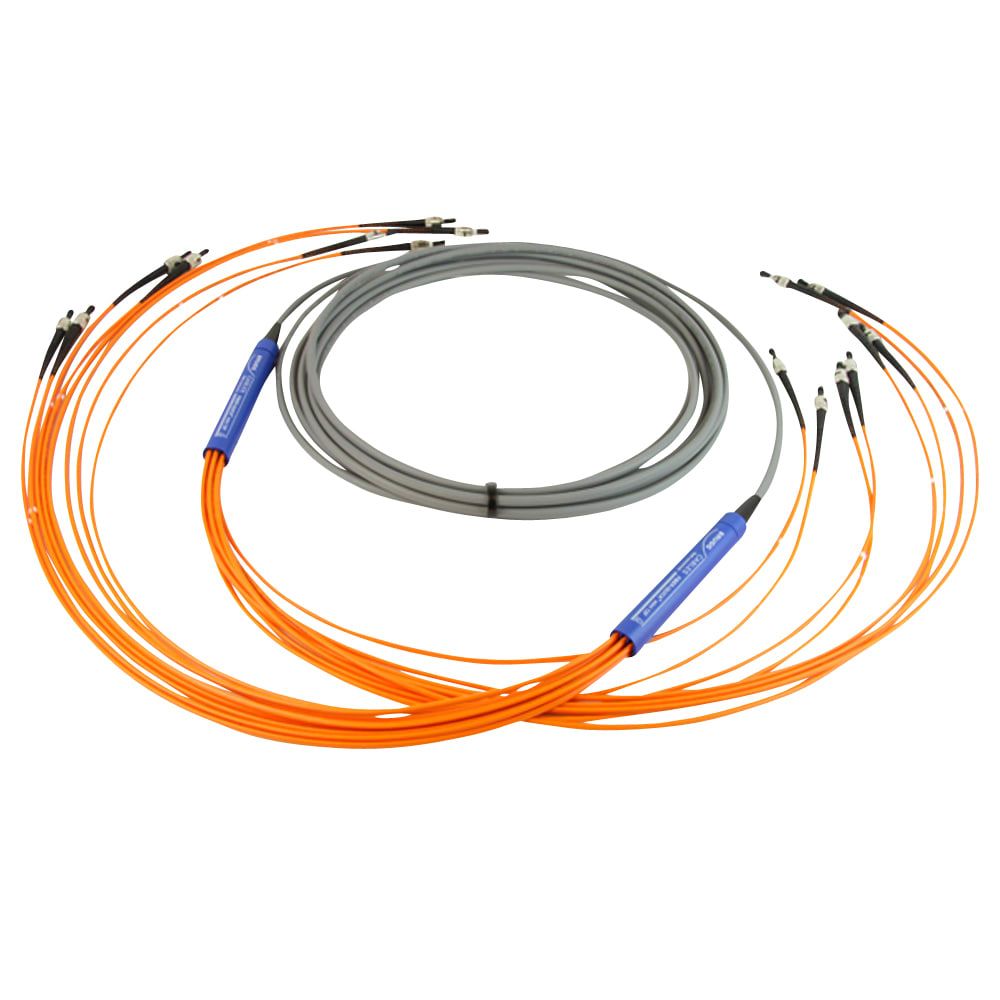

8-fibre AXXI, SM, E2000/PC-E2000/PC
Pre-terminated break-out fiber optic cable with E2000/PC-E2000/PC connectors. The AXXI single mode cable is terminated in both ends when delivered, each fibre in the cable is distributed to the ends via a fan-out.
| Variant | Product Number | Length | Stock | Price | |||
|---|---|---|---|---|---|---|---|
| Variant: 8 Fiber Break-out cable AXXI 10m, E2000/PC-E2000/PC connectors, SM | Nummer: F-B695740-F-010 | Length 10 m |
Stock:
|
Price:
|
|
|
|
| Variant: 8 Fiber Break-out cable AXXI 20m, E2000/PC-E2000/PC connectors, SM | Nummer: F-B695740-F-020 | Length 20 m |
Stock:
|
Price:
|
|
|
|
| Variant: 8 Fiber Break-out cable AXXI 30m, E2000/PC-E2000/PC connectors, SM | Nummer: F-B695740-F-030 | Length 30 m |
Stock:
|
Price:
|
|
|
|
| Variant: 8 Fiber Break-out cable AXXI 50m, E2000/PC-E2000/PC connectors, SM | Nummer: F-B695740-F-050 | Length 50 m |
Stock:
|
Price:
|
|
|
|
- May be delivered with most connector types.
- PC‐ or APC‐polished connectors.
- 2-, 4-, 8-, 12– or 24-fibre cable with tight buffer.
- Delivered in customer specified lengths.
A manifold is attached at the end of the cable to fan out the fibres in a controlled way. Each fibre is individually protected by a 3.0 mm tube.
Specifications
Cable type:
Tight buffer, AXXI, black Flame retardant, Zero halogen
Diameter cable:
9.6/9.6/9.9/10.8 mm 4/8/12/24-fibre AXXI
Tension strength cable:
800 N AXXI
Dimensions manifold (fan-out):
Ø 14 mm x 36 mm 2-fibre
Ø 20 mm x 75 mm 4-fibre
Ø 17 mm x 105 mm 8-fibre
Ø 35 mm x 165 mm 12/24-fibre
Diameter protection w/cable grip:
32 mm 2/4/8-fibre
52 mm 12/24-fibre
Diameter detachable protection:
49 mm (accessory 990443 - tube: Ø28 mm) 2/4/8-fibre
63 mm (accessory 990145 - tube: Ø42 mm) 12/24-fibre
Fibre type:
ITU-T G.652.D AXXI
OS-2 EN 50173-1
Insertion loss connectors:
< 0.5 dB @ 1310/1550 nm < 0.15 dB typical
Return loss connectors:
< -45 dB @ 1310/1550 nm for PC < -50 dB typical
< -60 dB @1310/1550 nm for APC < -65 dB typical
Classification, connectors:
Class C2 (PC), class C1 (APC) IEC 61755-1
Operating temperature:
-40°C to 60°C
