8-fibre AXAI, 62.5/OM1, SC-SC

From: excl. VAT

See variants

Pre-terminated cable for mounting in fiber optic panel with SC-SC connectors. The AXAI multimode OM1 cable is terminated in both ends when delivered, can be delivered in customer-specified lengths.

Variants
Description

Variant	Product Number	Length	Stock	Price
Variant: 8-fibre AXAI, 62.5/OM1, SC-SC, 10 m	Nummer: 7-692144-7-010	Length 10 m	Stock:	Price:
Variant: 8-fibre AXAI, 62.5/OM1, SC-SC, 20 m	Nummer: 7-692144-7-020	Length 20 m	Stock:	Price:
Variant: 8-fibre AXAI, 62.5/OM1, SC-SC, 30 m	Nummer: 7-692144-7-030	Length 30 m	Stock:	Price:
Variant: 8-fibre AXAI, 62.5/OM1, SC-SC, 50 m	Nummer: 7-692144-7-050	Length 50 m	Stock:	Price:

Pre-terminated cable for mounting in FOSS panel type FP70. The cable is terminated in both ends when delivered.

Connector: SC/PC according to IEC 61 754-4
Fibre type: Multi-mode 62.5/125 µm according to EN 50173-1 OM1
Cable: AXAI, tight buffer, fire retardant and halogen free, grey
Enables fast and secure mounting in FOSS panel FP70
Combined in- and outdoor use
Other lengths are quickly delivered from our production in Drammen. Please contact us

Description

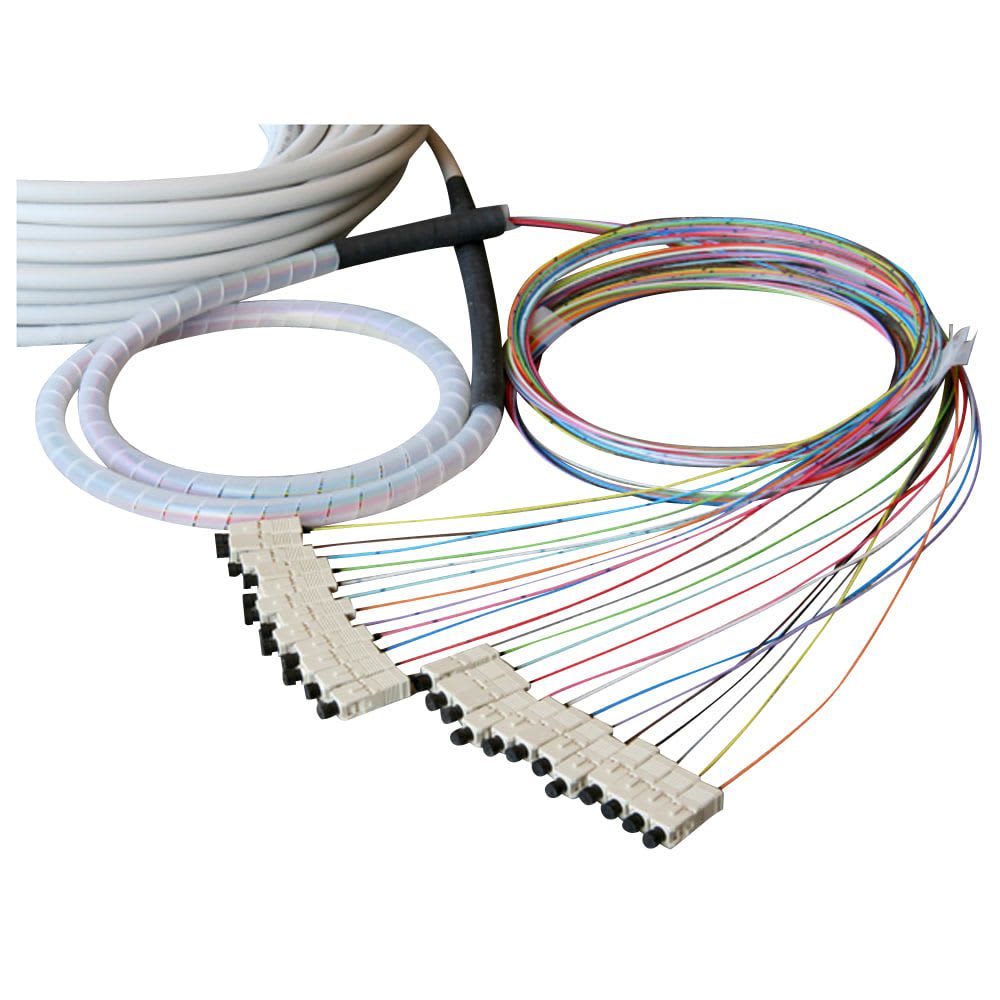

The pre-terminated cable is delivered with connectors at one or both sides. The cable is prepared for installation in FOSS FP70 and FP80 panel* - 80 cm of the fibre is protected by a spiral cable wrap and may therefor be placed under the drawer. This simplifies maintenance because it enables you to take the drawer out of the panel (without loosening the fibres from their guides). As an option the connector sides of the cable may be protected with a flexible tube. This is often used if this side needs to be pulled for a long distance. Outside this tube an optional cable pulling grip may be placed if the cable shall be pulled through tubes.

* cable for FP60 may be delivered on request

Specifications

Cable type:
Tight buffer, AXAI, several colours (see fibre type) Flame retardant, Zero halogen
Tight buffer, AXXI, black Flame retardant, Zero halogen

Diameter cable:
5/6/6.5/8 mm 4/8/12/24-fibre AXAI
9.6/9.6/9.9/10.8 mm 4/8/12/24-fibre AXXI

Tension strength cable:

440/680/900/1400 N 4/8/12/24-fibre AXAI
800 N AXXI

Diameter w/cable grip:
34 mm 4-fibre
40 mm 8/12/24-fibre

Tension strength cable grip:
350 N

Fibre type (acc. to EN 50173-1):
OM-1 (62.5/125) AXAI: grey
OM-2 (50/125) AXAI: orange
OM-3 (50/125) AXAI: turquoise

Insertion loss connectors:
< 0.5 dB @ 850/1300 nm < 0.2 dB typical

Operating temperature:
-40°C to 60°C
