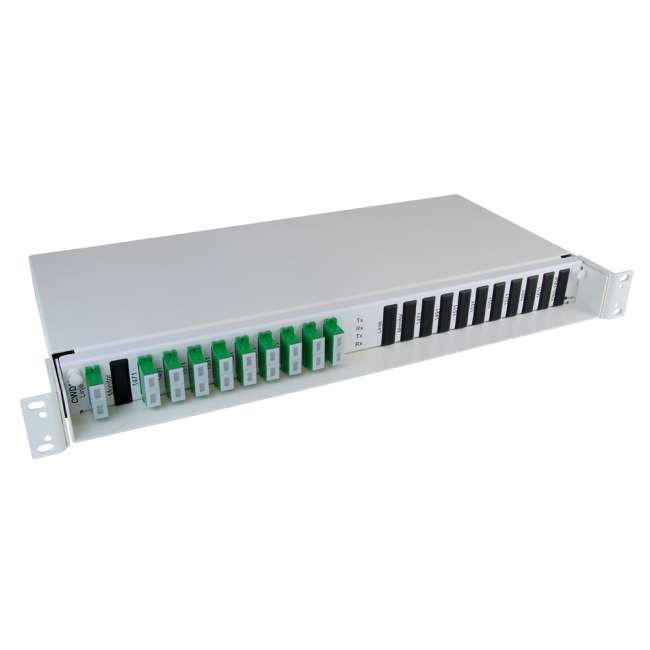

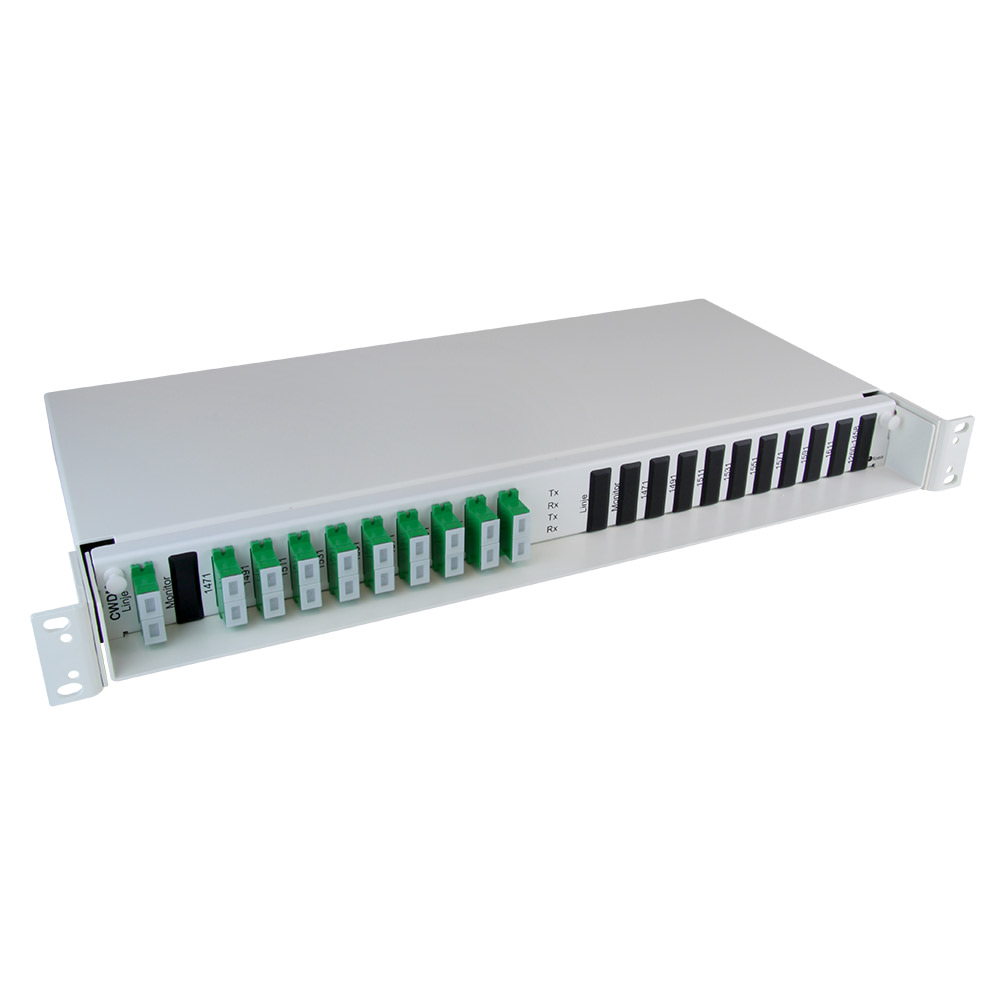

8+1 channel CWDM, Fiber optic patch pane 1U, SC/APC

The patch panel comes with a built-in CWDM multiplexer and demultiplexer

• Independent of protocol and bit speed
• Can be mounted in 19" and ETSI cabinet/rack
• Passive, does not need any power supply

DESCRIPTION
CWDM may be delivered in several types of panels and boxes from FOSS.
The most common are:

• FPM76-modular panel
• FP65-1U panel
• FPD76- wall box DIN

• May also be delivered in most splice closures.

  They are based on reliable passive technology and are delivered with SC or LC interface with PC or APC polished connectors.

  ---

  SYSTEM DESCRIPTION
  Passive CWDM units are a reliable and reasonable method for transferring several wavelengths/signals over the same fibre (wavelength multiplexing). In this way you may increase the capacity of existing fibre-cable significantly. Combined with OADM you may add or drop wavelengths on the way between the end points. A big advantage of using passive wavelength multiplexing is also that the method is protocol– and bitrate independent.

  A complete system with components for two-way communication (multiplexer and de-multiplexer) in both ends are made using two units.

  ---

  SPECIFICATIONS

  Operating temperature: -40 °C to 85 °C

  Insertion loss*:
  4 channel/2xUpgrade:       < 3.4/3.4 dB       < 2.9/2.9 dB typically
  8 channel:                          < 3.6 dB             < 3.0 dB typically
  8L(lower band):                  < 3.8 dB             < 3.1 dB typically
  8 channel/WB:                   < 3.6/3.6 dB       < 3.0/3.0 dB typically
  8 channel/WB + Monitor:   < 4.1/4.1 dB       < 3.5/3.5 dB typically
  18 channel:                        < 4.6 dB             < 4.0 dB typically
  8-channel/WB (3-port):      < 4.6/5.6 dB       < 4.0/4.5 dB typically
  * Loss over a system (2 panels and 4 connector-pairs)

  Wavelength (according to ITU-T G.694.2) :
  4 channel: 1471, 1491, 1591, 1611
  8 channel: 1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611 or   1271, 1291, 1311, 1331, 1351, 1371, 1431, 1451 nm
  18 channel: 1271, 1291, 1311, 1331, 1351, 1371, 1391, 1411, 1431, 1451, 1471, 1491, 1511, 1531, 1551, 1571, 1591 and 1611 nm

  Pass band:
  CWDM channels: +/- 6.5 nm
  1310 nm: +/- 50 nm
  Upgrade 1/WB: 1260-1458 nm
  Upgrade 2: 1504-1577 nm

  Monitor output (where available): ca. 20 dB below the line signal (1%)
