4-fibre AXXI, 9/OS2, SC/PC-SC/PC

From: excl. VAT
See variants

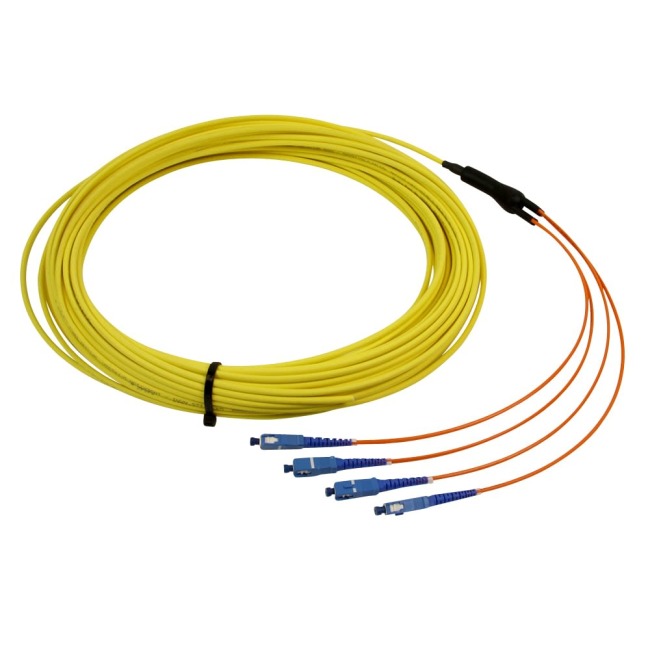

Pre-terminated break-out fiber optic cable with SC/PC-SC/PC connectors. The AXXI single mode cable is terminated in both ends when delivered, each fibre in the cable is distributed to the ends via a fan-out.

Variant Product Number Length Stock Price
Variant: 4 Fiber Break-out cable AXXI 10m, SC/PC-SC/PC connectors, 9/OS2 Nummer: 7-B695720-7-010 Length 10 m
Variant: 4 Fiber Break-out cable AXXI 20m, SC/PC-SC/PC connectors, 9/OS2 Nummer: 7-B695720-7-020 Length 20 m
Variant: 4 Fiber Break-out cable AXXI 30m, SC/PC-SC/PC connectors, 9/OS2 Nummer: 7-B695720-7-030 Length 30 m
Variant: 4 Fiber Break-out cable AXXI 50m, SC/PC-SC/PC connectors, 9/OS2 Nummer: 7-B695720-7-050 Length 50 m
  • May be delivered with most connector types.
  • PC‐ or APC‐polished connectors.
  • 2-, 4-, 8-, 12– or 24-fibre cable with tight buffer.
  • Delivered in customer specified lengths.

A manifold is attached at the end of the cable to fan out the fibres in a controlled way. Each fibre is individually protected by a 3.0 mm tube.


Cable type:
Tight buffer, AXXI, black                   Flame retardant, Zero halogen

Diameter cable:
9.6/9.6/9.9/10.8 mm  4/8/12/24-fibre AXXI

Tension strength cable:
800 N                  AXXI

Dimensions manifold (fan-out):
Ø 14 mm x 36 mm                           2-fibre
Ø 20 mm x 75 mm                          4-fibre
Ø 17 mm x 105 mm                          8-fibre
Ø 35 mm x 165 mm                        12/24-fibre

Diameter protection w/cable grip:
32 mm                        2/4/8-fibre
52 mm                        12/24-fibre

Diameter detachable protection:
49 mm (accessory 990443 - tube: Ø28 mm)          2/4/8-fibre
63 mm (accessory 990145 - tube: Ø42 mm)           12/24-fibre

Fibre type:
ITU-T G.652.D          AXXI
OS-2                         EN 50173-1

Insertion loss connectors:
< 0.5 dB @ 1310/1550 nm              < 0.15 dB typical

Return loss connectors:
< -45 dB @ 1310/1550 nm for PC           < -50 dB typical
< -60 dB @1310/1550 nm for APC         < -65 dB typical

Classification, connectors:
Class C2 (PC), class C1 (APC)              IEC 61755-1

Operating temperature:
-40°C to 60°C
