4-fibre AXAI, 9/OS2, SC/PC-SC/PC
From:
excl. VAT
See variants

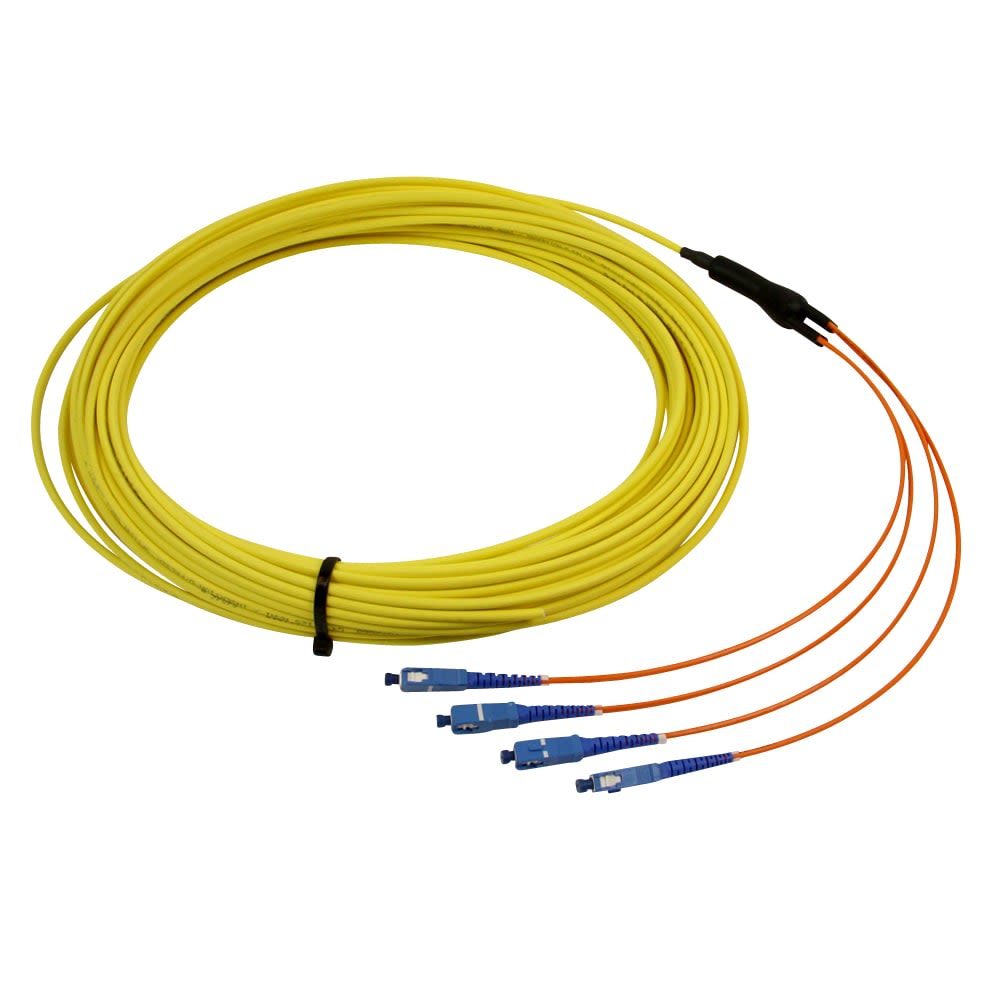

Pre-terminated break-out fiber optic cable with SC/PC-SC/PC connectors. The AXAI single mode cable is terminated in both ends when delivered, each fibre in the cable is distributed to the ends via a fan-out. Combined in- and outdoor use.
| Variant | Product Number | Length | Stock | Price | |||
|---|---|---|---|---|---|---|---|
| Variant: 4 Fiber Break-out cable AXAI 10m, SC/PC-SC/PC connectors, 9/OS2 | Nummer: 7-B692120-7-010 | Length 10 m |
Stock:
|
Price:
|
|
|
|
| Variant: 4 Fiber Break-out cable AXAI 20m, SC/PC-SC/PC connectors, 9/OS2 | Nummer: 7-B692120-7-020 | Length 20 m |
Stock:
|
Price:
|
|
|
|
| Variant: 4 Fiber Break-out cable AXAI 30m, SC/PC-SC/PC connectors, 9/OS2 | Nummer: 7-B692120-7-030 | Length 30 m |
Stock:
|
Price:
|
|
|
|
| Variant: 4 Fiber Break-out cable AXAI 50m, SC/PC-SC/PC connectors, 9/OS2 | Nummer: 7-B692120-7-050 | Length 50 m |
Stock:
|
Price:
|
|
|
|
Pre-terminated break-out cable for connecting optical units. The cable is terminated in both ends when delivered.
- Connector: SC/PC according to IEC 61 754-4
- Fibre type: Single mode according to ITU-T G657A1, EN 50173-1 OS2
- Quality: IEC 61755-1 class C2
- Cable type: AXAI, tight buffer, fire retardant and halogen free, yellow
- Each fibre in the cable is protected with a 3 mm furcation tube at the ends
- Each fibre in the cable is distributed to the ends via a fan-out
- The fibres are gradually reduced in length (see data sheet)
- As an option the cable can be delivered with protection and pull sleeve
- Indoor use
- Other lengths are quickly delivered from our production in Drammen. Please contact us
A manifold is attached at the end of the cable to fan out the fibres in a controlled way. Each fibre is individually protected by a 3.0 mm tube. Length of free fibre will be as illustrated below. For cables with more than 2 fibres the length of the 2 or 4 next fibres will increase with 5 cm (+0/-5 cm) for every 2. or 4. fibre.
