4-fibre AXAI, 50/OM3, ST-ST
Pre-terminated cable for mounting in fiber optic panel with ST-ST connectors. The AXAI multimode OM3 cable is terminated in both ends when delivered, can be delivered in customer-specified lengths.
| Variant | Product Number | Length | Stock | Price | |||
|---|---|---|---|---|---|---|---|
| Variant: 4 Fiber Pre-terminated cable AXAI 10 m for panel installation, ST-ST connectors, 50/OM3 | Nummer: 1-692123-1-010 | Length 10 m |
Stock:
|
Price:
|
|
|
|
| Variant: 4 Fiber Pre-terminated cable AXAI 20 m for panel installation, ST-ST connectors, 50/OM3 | Nummer: 1-692123-1-020 | Length 20 m |
Stock:
|
Price:
|
|
|
|
| Variant: 4 Fiber Pre-terminated cable AXAI 30 m for panel installation, ST-ST connectors, 50/OM3 | Nummer: 1-692123-1-030 | Length 30 m |
Stock:
|
Price:
|
|
|
|
| Variant: 4 Fiber Pre-terminated cable AXAI 50 m for panel installation, ST-ST connectors, 50/OM3 | Nummer: 1-692123-1-050 | Length 50 m |
Stock:
|
Price:
|
|
|
|
Pre-terminated cable for mounting in FOSS panel type FP70. The cable is terminated in both ends when delivered.
- Connector: ST/PC according to IEC 61 754-2
- Fibre type: Multi-mode 50/125 µm according to EN 50173-1 OM3
- Cable: AXAI, tight buffer, fire retardant and halogen free, turquoise
- Enables fast and secure mounting in FOSS panel FP70
- Combined in- and outdoor use
- Other lengths are quickly delivered from our production in Drammen. Please contact us
Description

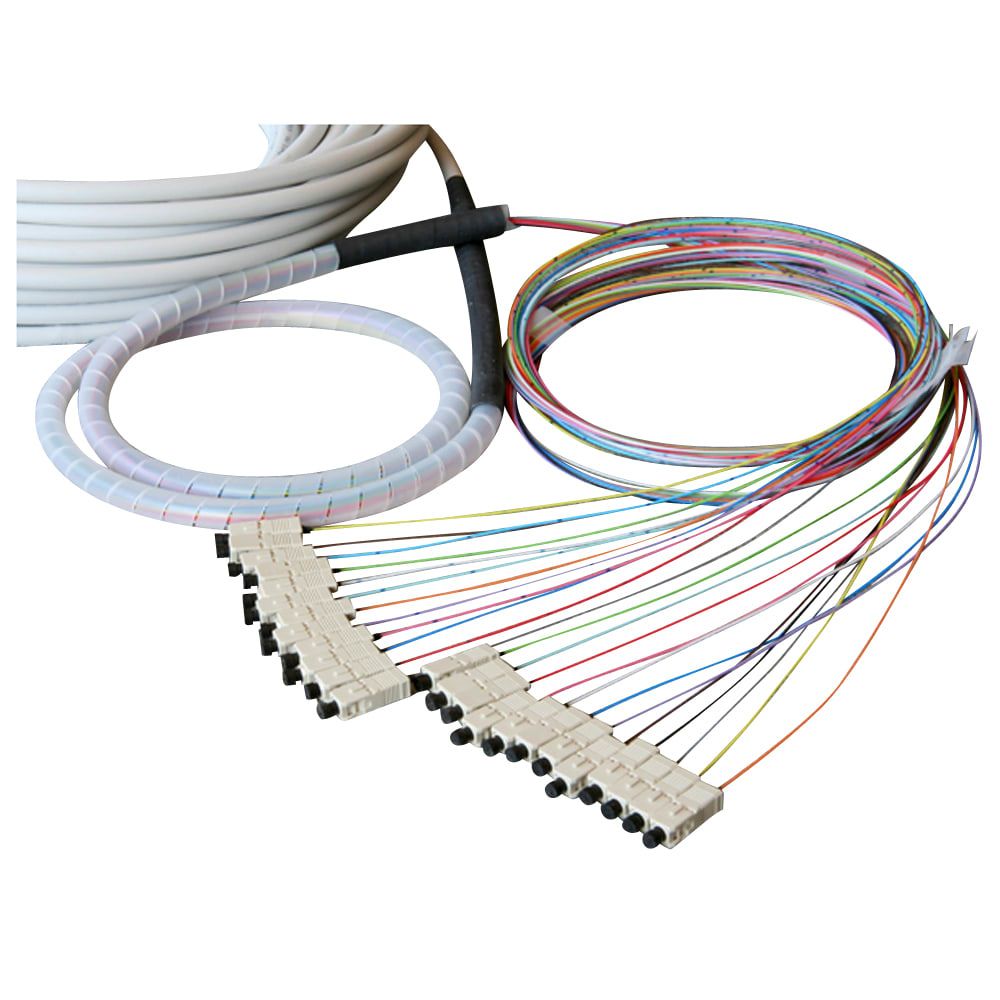

The pre-terminated cable is delivered with connectors at one or both sides. The cable is prepared for installation in FOSS FP70 and FP80 panel* - 80 cm of the fibre is protected by a spiral cable wrap and may therefor be placed under the drawer. This simplifies maintenance because it enables you to take the drawer out of the panel (without loosening the fibres from their guides). As an option the connector sides of the cable may be protected with a flexible tube. This is often used if this side needs to be pulled for a long distance. Outside this tube an optional cable pulling grip may be placed if the cable shall be pulled through tubes.
* cable for FP60 may be delivered on request
Specifications
Cable type:
Tight buffer, AXAI, several colours (see fibre type) Flame retardant, Zero halogen
Tight buffer, AXXI, black Flame retardant, Zero halogen
Diameter cable:
5/6/6.5/8 mm 4/8/12/24-fibre AXAI
9.6/9.6/9.9/10.8 mm 4/8/12/24-fibre AXXI
Tension strength cable:
440/680/900/1400 N 4/8/12/24-fibre AXAI
800 N AXXI
Diameter w/cable grip:
34 mm 4-fibre
40 mm 8/12/24-fibre
Tension strength cable grip:
350 N
Fibre type (acc. to EN 50173-1):
OM-1 (62.5/125) AXAI: grey
OM-2 (50/125) AXAI: orange
OM-3 (50/125) AXAI: turquoise
Insertion loss connectors:
< 0.5 dB @ 850/1300 nm < 0.2 dB typical
Operating temperature:
-40°C to 60°C
