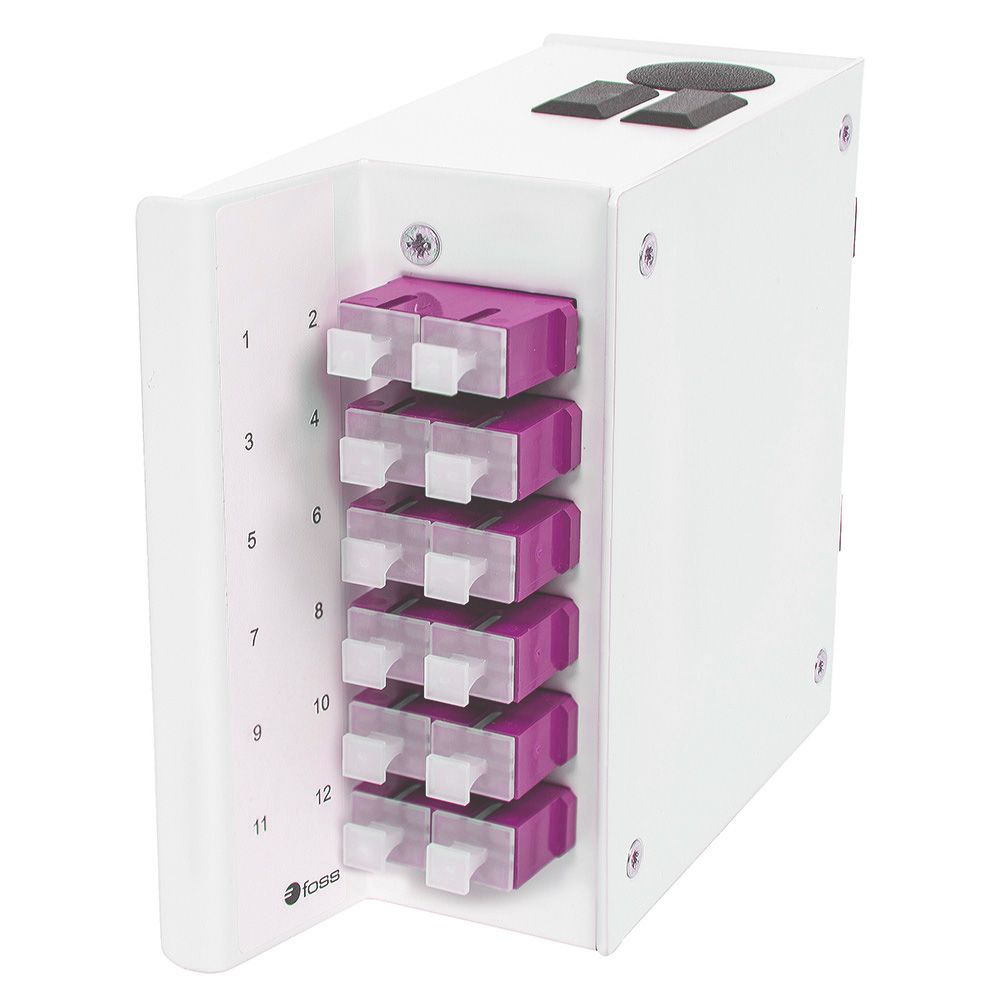

Wall box DIN MINI, SC, adapter, OM4

From: excl. VAT

See variants

A compact fiber optic wall box with pre-assembled single mode SC adapters. Both the lid and the adapter plate may be removed, making simple access for working in the box.

Variants
Description

Variant	Product Number	Length	Number of fibres	Stock	Price
Variant: Fiber optic Distribution box, 4 SC adapter pre-assembled, 50/OM4	Nummer: FPD66-4SCOM4-A	Length $nameMap.get($variantAttibutes.get($mapEntry.key)) m	Number of fibres 4	Stock:	Price:
Variant: Fiber optic Distribution box, 8 SC adapter pre-assembled, OM4	Nummer: FPD66-8SCOM4-A	Length 8 m	Number of fibres $nameMap.get($variantAttibutes.get($mapEntry.key))	Stock:	Price:
Variant: Fiber optic Distribution box, 12 SC adapter pre-assembled, OM4	Nummer: FPD66-12SCOM4-A	Length $nameMap.get($variantAttibutes.get($mapEntry.key)) m	Number of fibres 12	Stock:	Price:

A flexible and small wall box for fiber optics, suited for DIN-rail mounting in cabinets. The box has room for up to 24 LC-connectors or 12 SC– or ST-connectors. Suitable for using pre-terminated cable or for splicing of up to 24 fibres. There is holes for 1 or 2 MPO adapters (both at top and bottom) to enable the box to hold fan-outs from MPO to e.g. LC. Both the lid and the adapter plate may be removed, making simple access for working in the box.

DIN-rail mount or directly on wall
Simple access inside panel
May be mounted left or right
Each unit may handle up to 24 connectors for pre-termination or splicing

SPECIFICATIONS DIN mini

Material: Aluminium White paint, RAL9010

Cable entrances: 2 stk. (1 at top and 1 at bottom) 1 gland is included (M20)

Mounting options:

DIN-rail in the back,
DIN-rail on the side,
Side mount requires "Wall bracket" screw on wall (side) - see accessories.

Capacity:  24 (LC), 12 (SC, ST, E2000)

Dimensions:
Included adapters and DIN-rail clip: 55 x 110 x 137 mm (W x H x D)
When using "Wall bracket": 65 x 110 x 129 mm (W x H x D)

Weight:  0.4 kg
