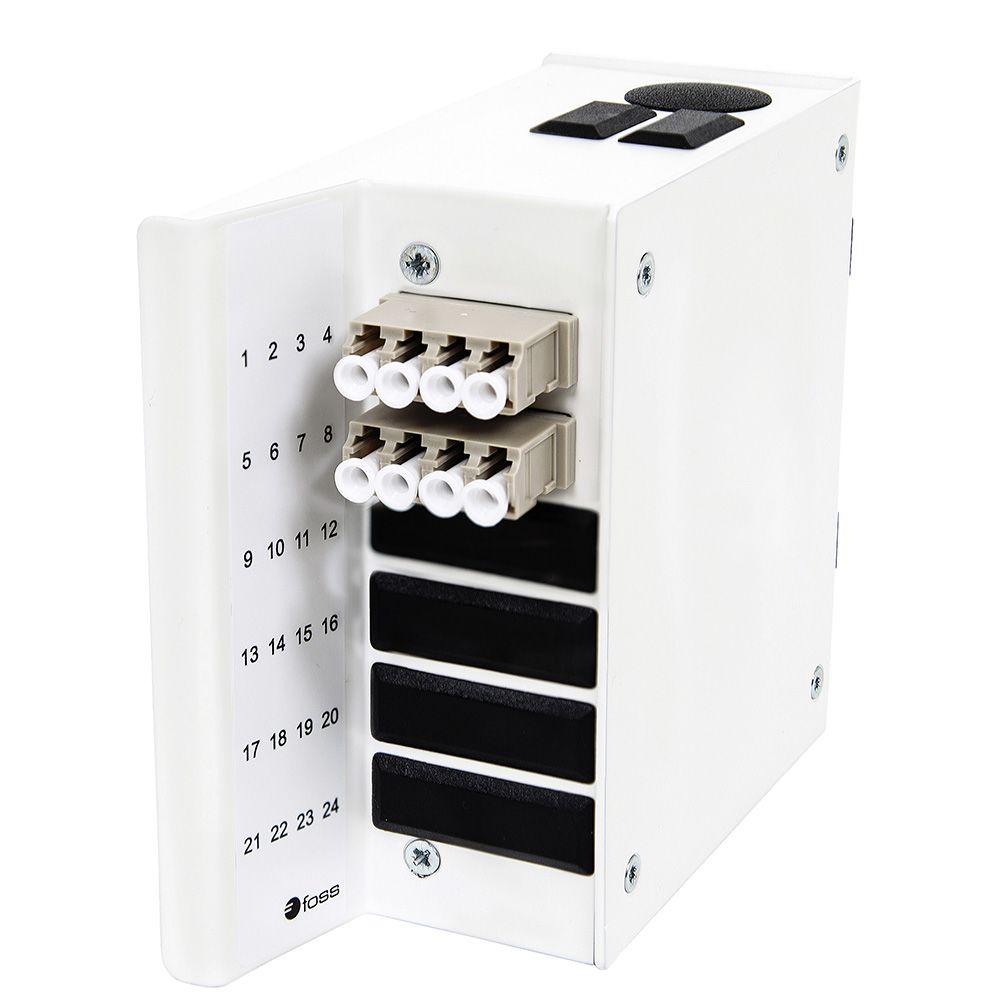

Wall box DIN MINI, 8 LC, 62.5/OM1, AXAI

From: excl. VAT

See variants

A compact wall box for fiber optic with pre-terminated cable type AXAI and 8 LC adapters. Both the lid and the adapter plate may be removed, making simple access for working in the box.

Variants
Description

Variant	Product Number	Length	Stock	Price
Variant: Small Fiber optics Wall Box, 10m AXAI cable, 8 LC adapters pre-terminated, 62.5/OM1	Nummer: FPD66-8LCOM1-010	Length 10 m	Stock:	Price:
Variant: Small Fiber optics Wall Box, 20m AXAI cable, 8 LC adapters pre-terminated, 62.5/OM1	Nummer: FPD66-8LCOM1-020	Length 20 m	Stock:	Price:
Variant: Small Fiber optics Wall Box, 30m AXAI cable, 8 LC adapters pre-terminated, 62.5/OM1	Nummer: FPD66-8LCOM1-030	Length 30 m	Stock:	Price:

A flexible and small wall box for fiber optics, suited for DIN-rail mounting in cabinets. The box has room for up to 24 LC-connectors or 12 SC– or ST-connectors. Suitable for using pre-terminated cable or for splicing of up to 24 fibres. There is holes for 1 or 2 MPO adapters (both at top and bottom) to enable the box to hold fan-outs from MPO to e.g. LC. Both the lid and the adapter plate may be removed, making simple access for working in the box.

DIN-rail mount or directly on wall
Simple access inside panel
May be mounted left or right
Each unit may handle up to 24 connectors for pre-termination or splicing

SPECIFICATIONS DIN mini

Material: Aluminium White paint, RAL9010

Cable entrances: 2 stk. (1 at top and 1 at bottom) 1 gland is included (M20)

Mounting options:

DIN-rail in the back,
DIN-rail on the side,
Side mount requires "Wall bracket" screw on wall (side) - see accessories.

Capacity:  24 (LC), 12 (SC, ST, E2000)

Dimensions:
Included adapters and DIN-rail clip: 55 x 110 x 137 mm (W x H x D)
When using "Wall bracket": 65 x 110 x 129 mm (W x H x D)

Weight:  0.4 kg
