Wall box DIN MINI, 4 LC/PC, 9/125, AXAI

From:

incl. VAT

See variants

Variant: Wall box DIN MINI, 4 LC/PC, 9/125, AXAI, 10 m Nummer: FPD66-4SLC-010 Length 10 m
Stock:
Price:
Variant: Wall box DIN MINI, 4 LC/PC, 9/125, AXAI, 20 m Nummer: FPD66-4SLC-020 Length 20 m
Stock:
Price:
Variant: Wall box DIN MINI, 4 LC/PC, 9/125, AXAI, 30 m Nummer: FPD66-4SLC-030 Length 30 m
Stock:
Price:

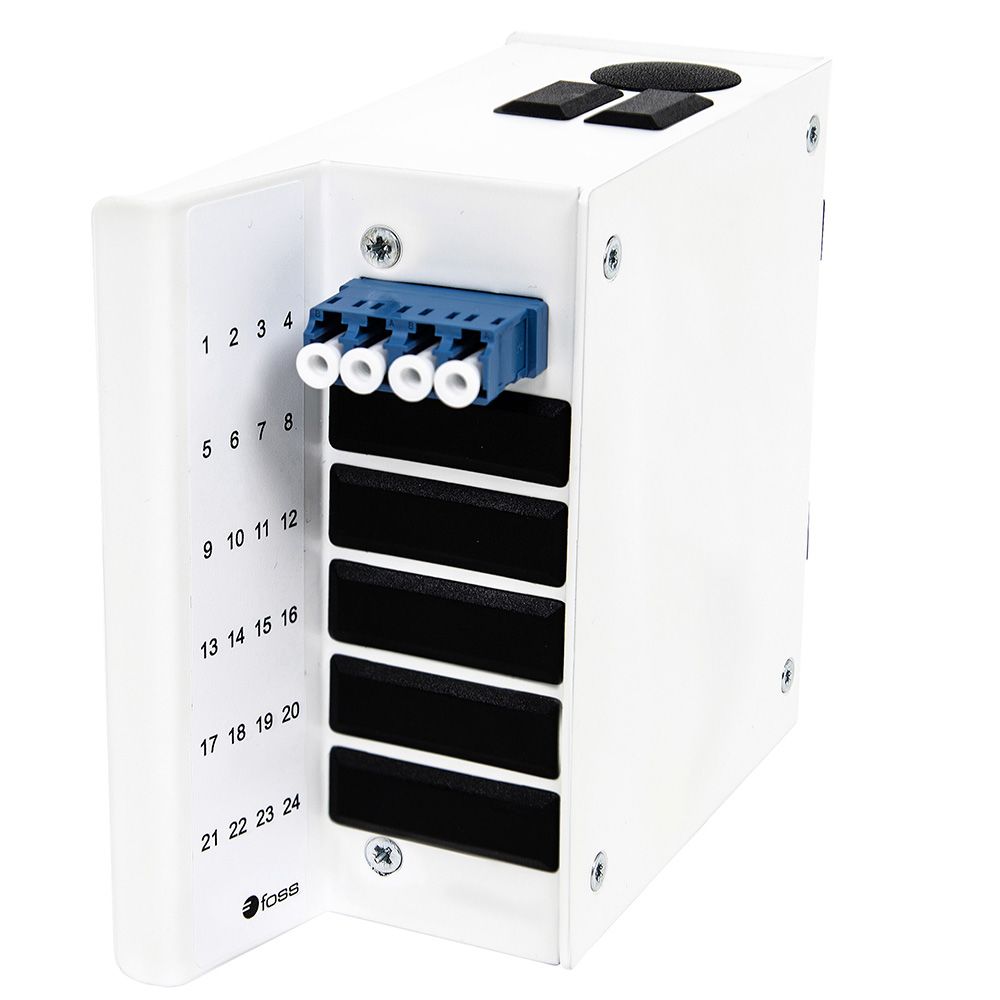

A compact wall box for mounting on a DIN rail in cabinets or other places where space is a challenge. Suitable for splicing up to 12 fibers, and with a capacity for 24 fibers in pre-assembled solutions. The box is reversible and has cable entry and space for two MPO connectors at the top and bottom. Both the lid and the front plate can be removed for easy access to work in the box.

  • Can be mounted on a DIN rail, directly on the wall or in a standard wall box for consealed systems
  • Easy access to work in the box
  • Reversible right / left
  • Cable type: AXAI, solid cladding, fire-retardant and halogen-free, color yellow
  • Fiber type: Single mode according to ITU-T G.657A1, EN 50173-1 OS2
  • Dimensions: 55 x 110 x 137 mm (W x H x D)
