Fiber optic Test kit, 1310/1550, USB, OMK-35

SKU: OMK-35V2
Stock:
excl. VAT

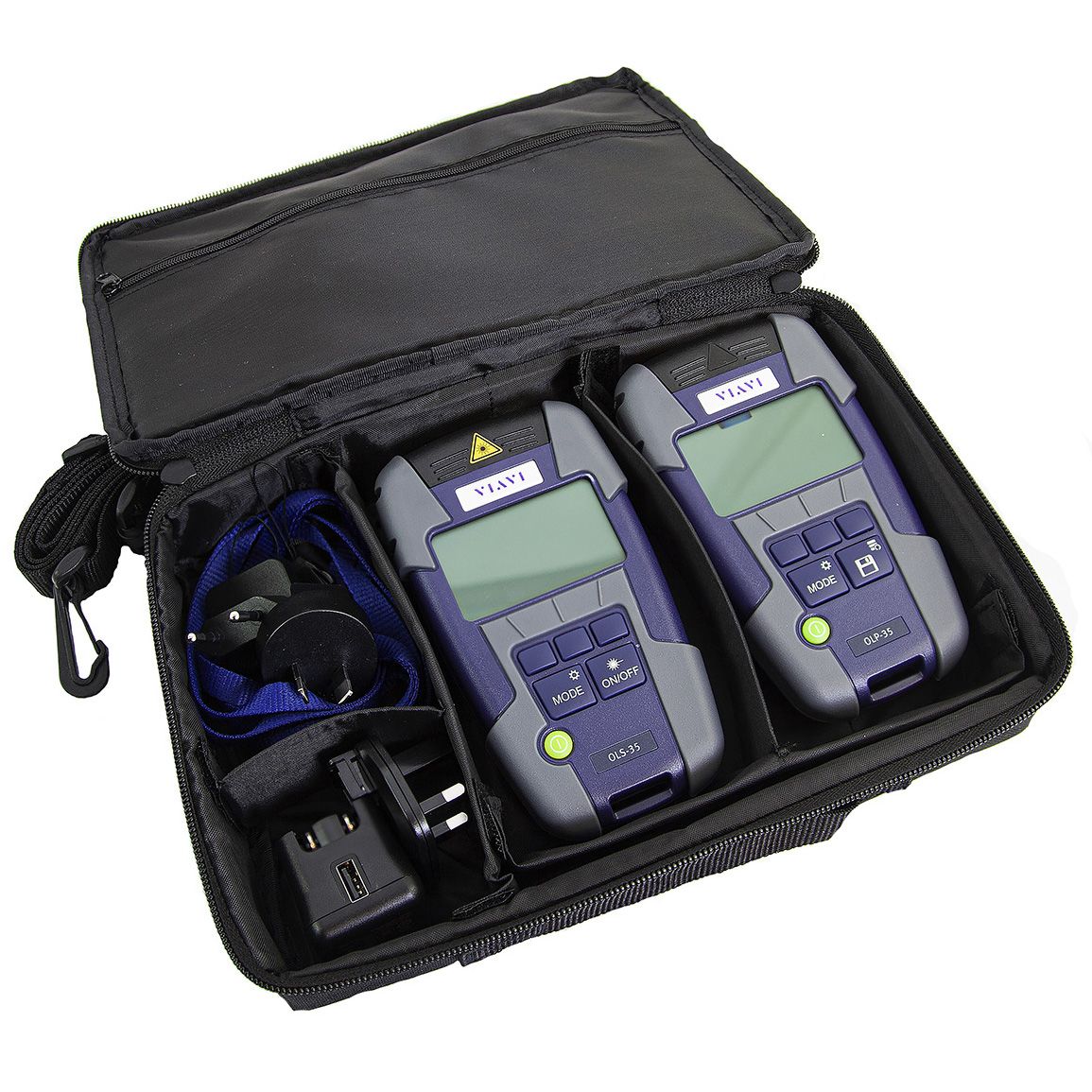

SmartPocket test kit for single mode, lightsource and powermeter. Includes OLS-35V2 optical light source and OLP-35V2 optical power meter. Measures optical power levels and link insertion loss for SM networks

Single-mode test kit for Telecom applications

Includes OLS-35V2 optical light source and OLP-35V2 optical power meter

Measures optical power levels and link insertion loss for SM networks

OLP-35V2 Features:
Universal optical interface with UPP adapter supports all 2.5 mm with option for 1.25 mm connectors
Calibrated at 850 nm, 980 nm, 1310 nm, 1490 nm, 1550 nm, 1577 nm, 1625 nm and 1650 nm
Display range: -65 to +10 dBm
1 nm incremental wavelength settings
Performs fiber tracing by detecting optical light source tones
Storage for more than 1000 test results
USB-C interface for powering, offloading of results, and connection to PC
Bluetooth low energy connectivity to Viavi Mobile Tech App
Ultra-reliable construction for rugged, outdoor use
Exceptionally long battery life with over 70 hours continuous operation
High-visibility backlit graphical display with context-sensitive softkey
Convenient OptiChek measurement mode does not require wavelength configuration
Auto-λ, Multi-λ mode delivers lightning-fast, error-free testing
Automatic upload of results via Viavi Mobile Tech application

OLS-35V2 Features:
Covers all standard single-mode telecommunication network applications with 1310/1550 nm wavelengths
One-button operation provides quick, simple, and error-free testing|Performs fiber tracing by generating light source tones
USB-C interface for powering, connection to PC, and firmware updates
Ultra-reliable construction for rugged, outdoor use
Exceptionally long battery life with over 50 hours continuous operation
High-visibility backlit graphical display with context-sensitive softkey
Equipped with Auto-λ and Multi-λ functions that are compatible with OLP-35V2 power meter
Supplied with mounted SC adapter
