HARTING
– rugged connectors for industrial environments
HARTING is a leading global manufacturer of industrial connectivity solutions and is particularly well known for its Han® range of rugged, modular industrial connectors.
Foss uses HARTING components to manufacture complete fiber optic Han® solutions for industrial, offshore and other demanding environments. The connectors are assembled and terminated in our own production facilities, allowing cable type, fiber count, connector configuration and cable length to be adapted to the application.
About HARTING
The HARTING Technology Group was founded in Germany in 1945 and is headquartered in Espelkamp.
The family-owned company has around 6,100 employees, 14 production facilities and sales companies in more than 40 countries. HARTING develops connectivity technology for a wide range of applications, including industrial automation, transportation and energy.
One of the company's best-known product families is Han®, a modular connector system designed to provide reliable connections in demanding industrial environments.
HARTING Han® from Foss
Foss uses HARTING Han® components as the basis for rugged, pluggable fiber optic solutions.

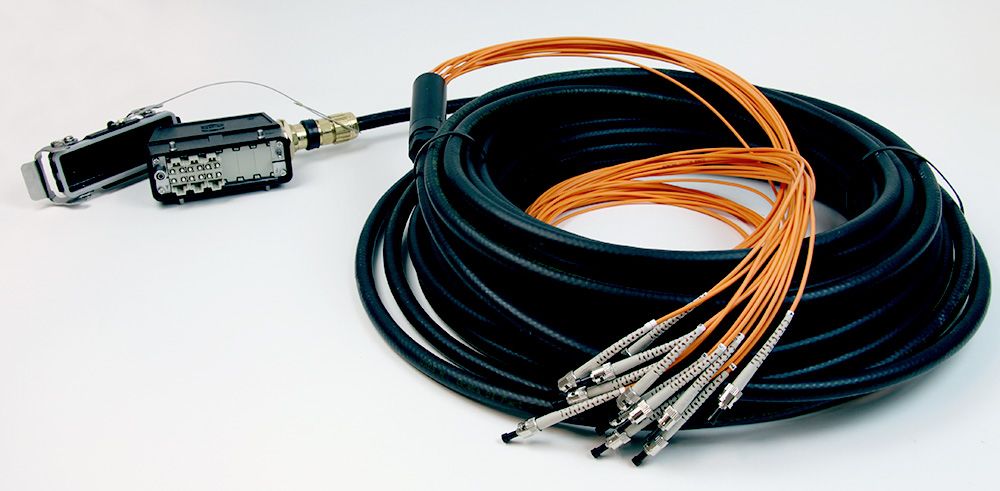

A typical system consists of a pre-terminated cable with a Han® plug that connects to a panel-mounted or surface-mounted receptacle. On the inside of the installation, the connection can continue using standard fiber optic connectors.
The optical interface is based on standard SC connectors, and the system can be configured with different fiber counts depending on the application.
Assembly and termination are carried out at our production facility in Drammen, Norway.
We can customise:
- cable type and cable length
- single-mode or multimode fiber
- fiber count
- plug, panel-mounted or surface-mounted configuration
- housing type
- combinations of fiber and copper
- labelling and configuration

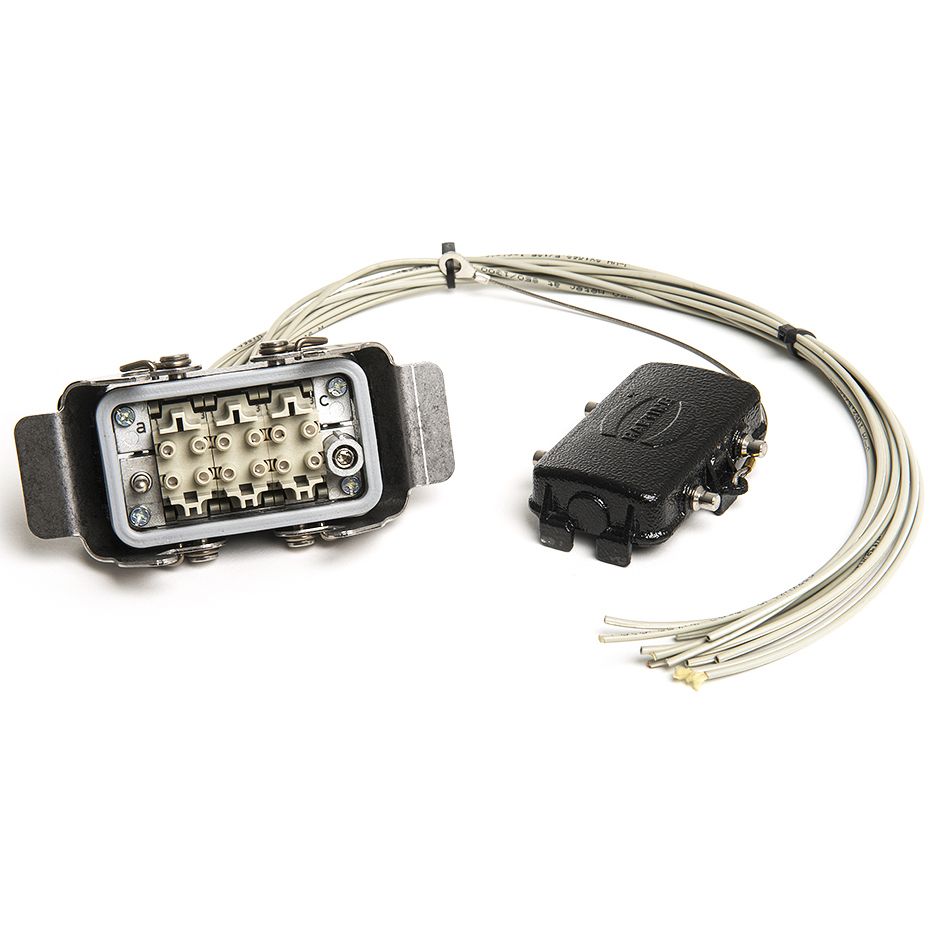

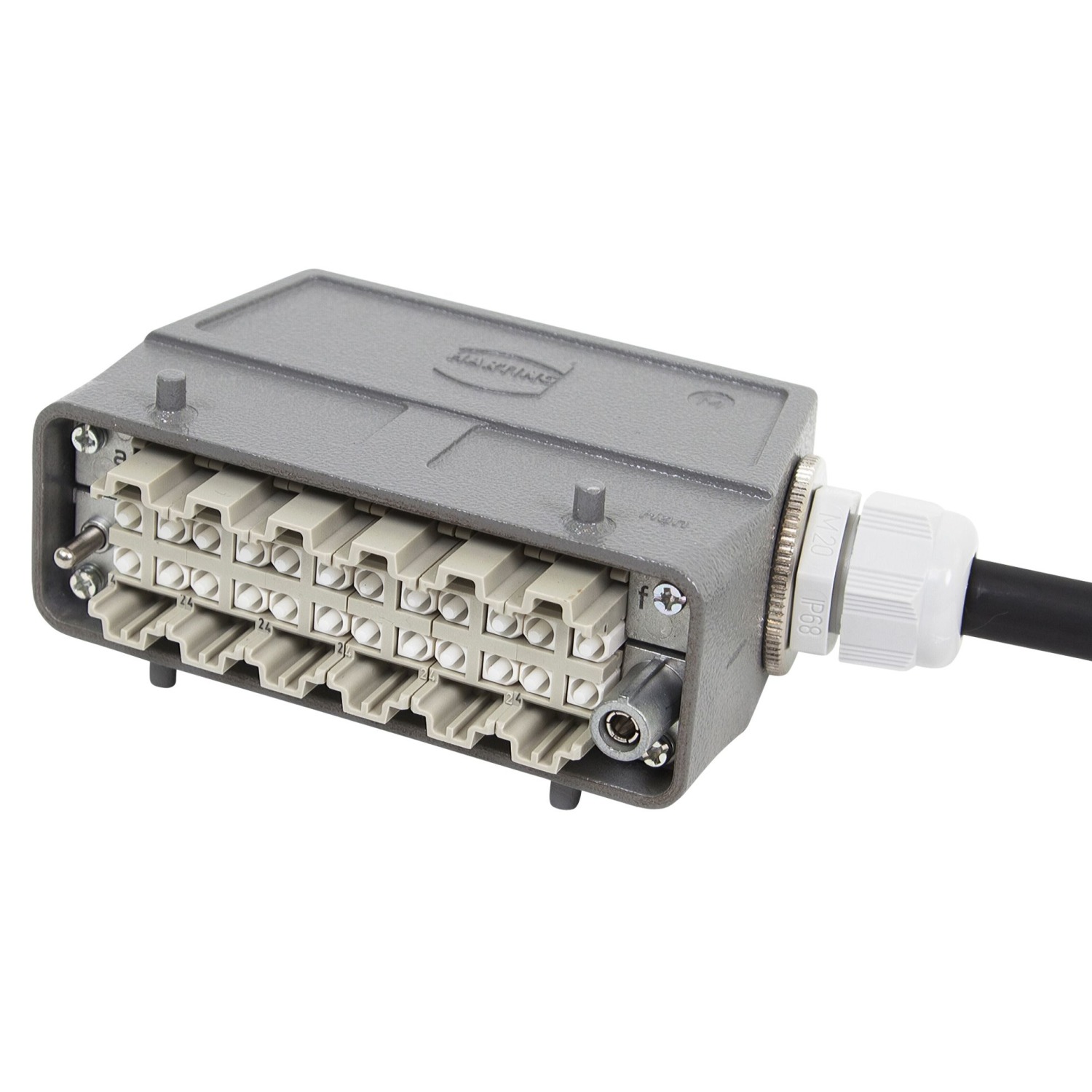

Han® Standard
Han® Standard provides a rugged industrial connection for applications where a pluggable solution with good mechanical protection is required.
At Foss, this version is used for both temporary and permanent fiber optic connections in industrial installations.
The aluminium housing and locking system provide a robust connection while allowing equipment to be connected and disconnected efficiently.
Han® M
Han® M is designed for industrial applications with higher requirements for mechanical protection and environmental resistance.
The connector features a rugged aluminium housing and stainless-steel locking components and is suitable for both indoor and outdoor applications.
Foss can supply Han® M as a complete pre-terminated cable assembly or as part of a panel or chassis solution adapted to the installation.

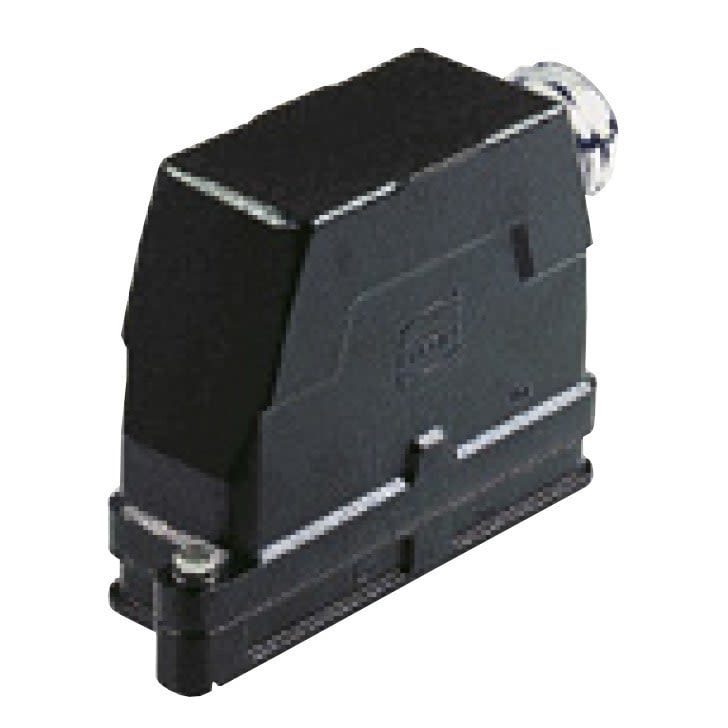

Han® HPR
Han® HPR is designed for particularly demanding environments where a high level of protection against water, dust and corrosion is required.
The HPR range features corrosion-resistant aluminium housings and robust locking mechanisms, making it particularly suitable for outdoor installations, offshore and marine environments, and other demanding industrial applications.
Foss can assemble complete Han® HPR solutions with the required cable type, fiber type and fiber count.
Complete pluggable fiber optic solutions
One of the key advantages of Han® is the ability to create a rugged, pre-terminated and pluggable connection.
This is particularly useful in applications where fiber splicing in the field is impractical or where equipment needs to be connected and disconnected regularly.
Typical applications include:
- industrial and manufacturing facilities
- offshore and marine environments
- connections between containers and modules
- mobile control stations
- aquaculture
- temporary installations
- machinery and movable equipment
The rugged connector housing protects the fiber connection while allowing equipment to be installed, removed or replaced without having to re-terminate or splice the fiber.
Fiber and copper in the same connector
The modular design of the Han® system also makes it possible to combine different types of connections within the same connector system.
Depending on the configuration, fiber and copper connections can be combined in a single interface. This can be particularly useful when both communication and electrical connections are required between the same equipment or modules.
Foss can help determine the appropriate configuration for the application.
Why choose HARTING through Foss?
Selecting a rugged industrial connector involves more than choosing the connector housing itself. The cable, fiber type, number of connections, environmental requirements and how the system will be used all need to work together.
With our own production facilities and experience with HARTING Han®, Foss can assist with:
- selecting the appropriate Han® configuration
- cable and fiber selection
- customer-specific configurations
- termination and assembly
- panel and chassis solutions
- fiber and hybrid solutions
- testing before delivery
The result is a complete solution adapted to the installation rather than individual components that need to be assembled in the field.
Frequently asked questions about HARTING Han®
Han® is a family of modular industrial connectors developed by HARTING. The system is designed for rugged, pluggable connections in industrial and demanding environments.
Han® can be used for both permanent and temporary connections. Foss uses the system in fiber optic solutions for applications including industry, offshore, mobile installations, containers and other environments where a rugged pluggable connection is required.
Foss uses genuine HARTING components and assembles, terminates and tests complete cable and connector solutions in our own production facilities.
Yes. We can customise parameters including cable type, cable length, fiber type, fiber count and connector configuration according to the application.
Yes. The modular Han® system allows different types of connections to be combined, and selected configurations can incorporate both fiber and copper within the same connector system.
Talk to us about HARTING Han®
Need a rugged, pluggable fiber optic solution for an industrial or demanding environment?
Foss can help you select the appropriate HARTING Han® configuration and manufacture a complete solution adapted to your cable, environment and application.
