Wall mounted rack Rack 19" B600xD400, organizer

Foss Fiber Optics
From: excl. VAT
See variants

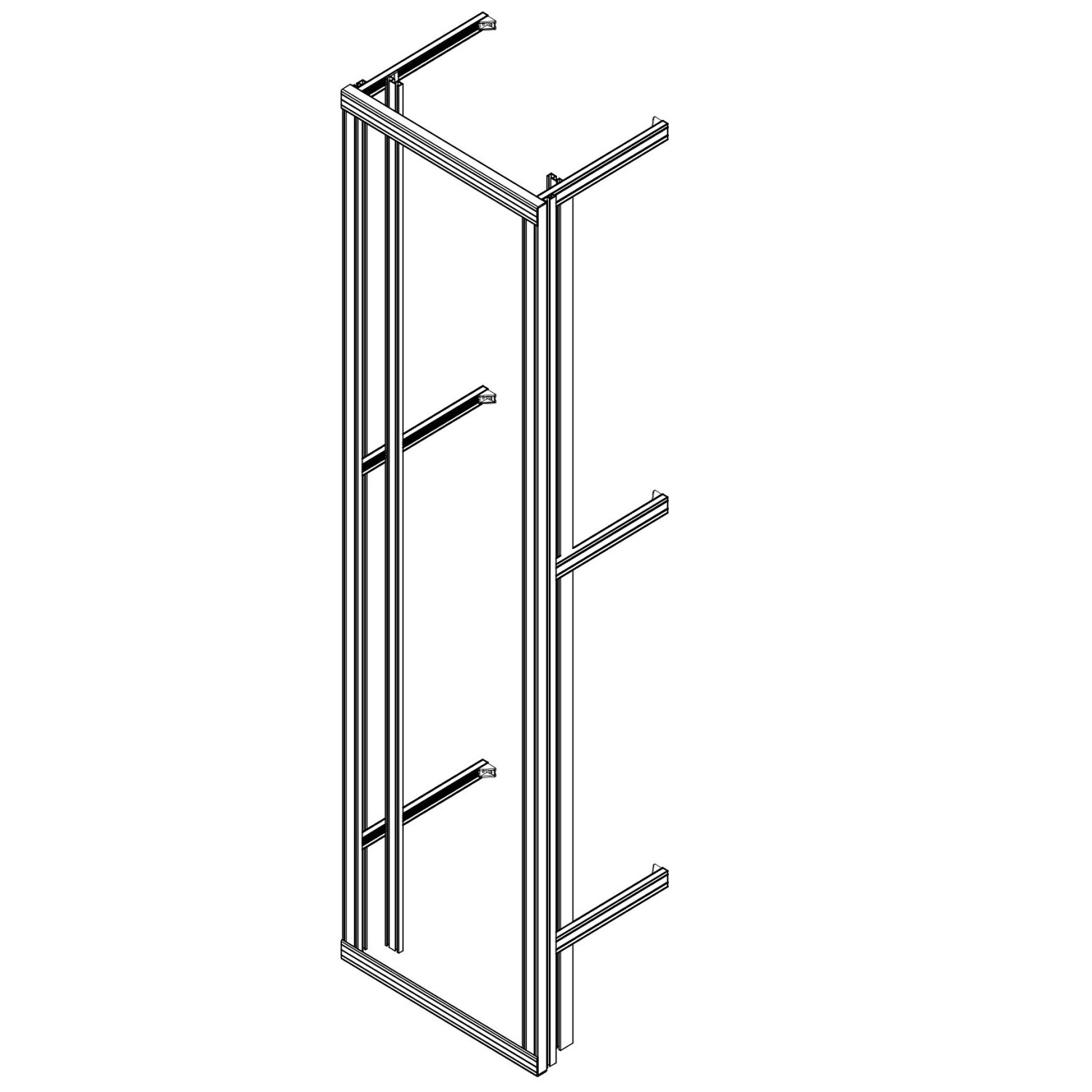

Wall mounted Fiber optic Rack for front mounted equipment, with retracted installation. It is produced in aluminium ensuring low weight and simple transport. It has profiles with slide rails that allows continuous height adjustment of nut and screw when installing equipment. Delivered flat-packed, so that one person can easily carry and mount the rack alone.

Variant Product Number Stock Price
Variant: Open Frame wall mounted Fiber optic Server Rack, B600xH400xD400 Nummer: MP252
Stock:
Price:
Variant: Open Frame wall mounted Fiber optic Server Rack, B600xH600xD400 Nummer: MP253
Stock:
Price:
Variant: Open Frame wall mounted Fiber optic Server Rack, B600xH2200xD400 Nummer: MP256
Stock:
Price:
Variant: Open Frame wall mounted Fiber optic Server Rack, B600xH2740xD400 Nummer: MP257
Stock:
Price:

The Flexi Rack series is available in 19" design in standard heights 1800, 2000 and 2200 mm. Other widths and heights, as well as ETSI section width, can be supplied on request. The Flexi Rack series can also be supplied with side organizers for optimal fiber patch routing. The racks series offer high termination capacity.

This racks is designed so that the front plate of the equipment can optionally be mounted 12 to 15 cm offset from front line of the rack. This to protect front mounted connectors.

  • For wall-mounting
  • Extra 19 '' profiles to avoid front mounting
  • Aluminum frames
  • With 1 section, 600 mm
  • Accessories available: cable trays, guide bars, legs, etc.
Accessory products
Cable ladder, rear/side mount, 210 cm

Cable ladder used for fastening cables and tubes to the rack.

FR70800
Cable ladder, rear/side mount, 210 cm

Cable ladder used for fastening cables and tubes to the rack.

MP374
Shelf 2U for routers and other network equipment, D240 mm

Shelf for network equipment that cannot be screwed directly into data or fiber rack or cabinet. The shelf has holes for better ventilation.

MP276
Shelf 2U for routers and other network equipment, D300 mm

Shelf for network equipment that cannot be screwed directly into data or fiber rack or cabinet. The shelf has holes for better ventilation.

MP278
Shelf 1U retractable for routers and other network equipment, D350 mm

Shelf retractable for network equipment that cannot be screwed directly into data or fiber rack or cabinet. The shelf has holes for better ventilation.

MP530
Spring nut, screw, M6, 100-pack

Screw with spring nut for FR racks. The spring nut can be adjusted continuously height-wise in the rack.

FR777
Bend limiter 180 deg., 1U, 10-pack

Bend limiter for avoiding sharp bends on fiber optic patch cords in rack. Bend diameter 30 mm

FR70502-10
Bend limiter 180 deg., top turn, 10-pack

Bend limiter for avoiding sharp bends on fiber optic patch cords in rack.

FR70505-10
Fiber optic cable Routing guide, double, 10-pack

Guide to be placed in the middle of the vertical cord guide to keep the patch cords together.

FR70520-10
Mounting bracket for cable ladder, rear mount, 3-pack

FR70810-3
Mounting profile for cable ladder to frame, side mount

FR70820
Shelf 1U bracket set, 566 mm w/4 screws & nuts

Large brackets for sliding equipment onto. Fasten one on each sidewall in the racket.

MP379
Routing guide w/ tie-wrap base, 10-pack

Routing guide used on fan-out units to avoid that weight creates sharp bends or cord stress, may also be used to separate some patch cords from the rest.

FR70515-10
Fiber optic Cable distributor, w/6 cabinet sleeves

Cable distributor used to separate the fibre-tubes in large cables to terminate them in different fiber optic panels.

FR70600
Bend limiter top of vert. guide

Bend limiter for mounting on the top of the rack. Offload patch cords which must be guided over the top.

FR70550
Sawtooth bracket L 120

Angled bracket for mounting cable ladders and other equipment in racks.

838-120
Adapter bracket, 19"/ETSI, 1U (W=25mm)

1U (W=25 mm)

MP268
Adapter bracket, 19''/ETSI, 21U W=25mm)

21U (W=25 mm)

MP419
Adapter bracket, 19" /ETSI, 4U (W=50mm)

1 pcs. is used on one side of the rack.

MP269
