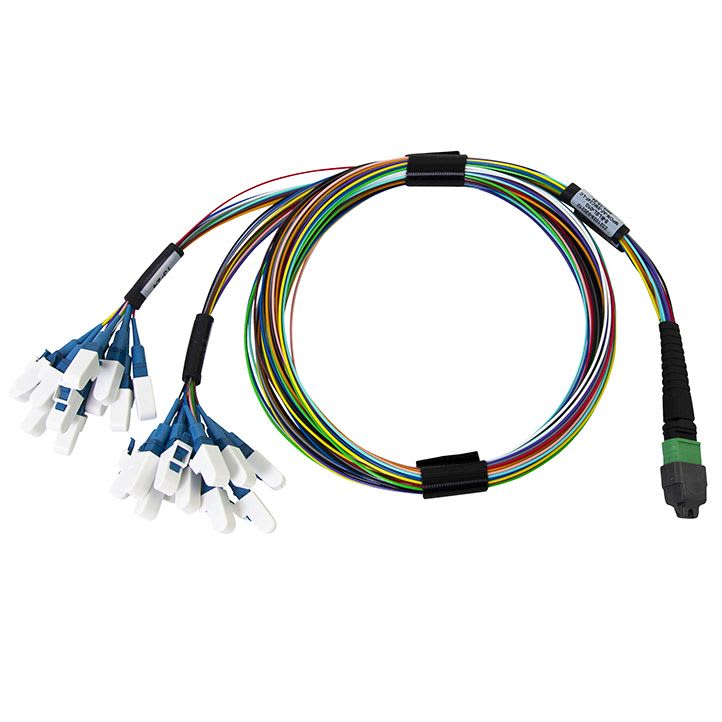

MPO Fan-out fiber optic cables, 24 x OS2/900 MPOAM - LC/PC, 1.0 m

SKU: 8-BLSL-010

Stock:

excl. VAT

Fan-out fiber optic cables for indoor use are delivered with 12 or 24 optical fibres. They are used as converters between MPO and LC/PC.

Area of use: Indoor cabling

Fibre type and cable colour:

Outer diameter 12/24 fibre cable: 2.0 mm (LC-part), 4.5/5.4 mm (main part

Temperature range: -10 oC to 60 oC at installation and operation

Fire class cable: Cca-s1a, d1, a2 for 12-fibre, Cca-s1a, d1, a1 for 24-fibre

OPTICAL SPECIFICATION

Single mode G.657.A1

< 0.5 dB at 1310/1550 nm < -60dB 12-fibre MPO
< 0.65 dB at 1310/1550 nm < -60dB 24 fibre MPO

< 0.5 dB at 1310/1550 nm < -50dB LC/PC

Multimode OM-3 and OM-4

< 0.5 dB at 850/1300 nm MPO
< 0.5 dB at 850/1300 nm LC
