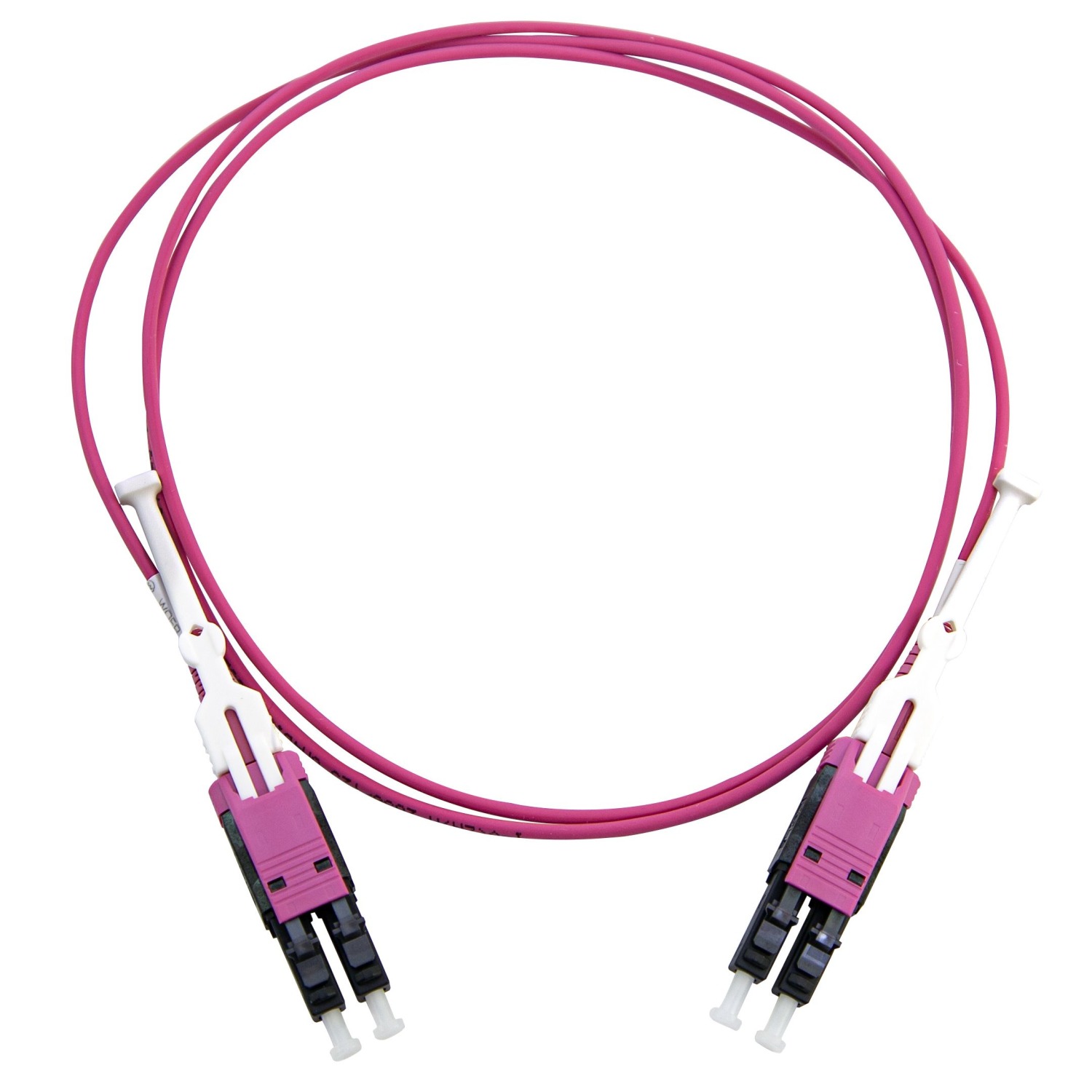

Duplex patch cord, LC-LC, 50/OM4, UB, purple

From: excl. VAT
See variants

LC High Density fiber optic patch cords UniBoot, 2 fibres in 1 cable. Integrated and removable push-pull tab for easy installation. The construction makes it possible to reverse the polarity from A-B to A-A without the use of tools.

Variant Product Number Length Stock Price
Variant: 0.5m UniBoot, Fiber optic Duplex patch cord, LC, 50/OM4 Nummer: 8-63LL-005-E Length 0.5 m
Stock:
Price:
Variant: 1m UniBoot, Fiber optic Duplex patch cord, LC, 50/OM4 Nummer: 8-63LL-010-E Length 1 m
Stock:
Price:
Variant: 2m UniBoot, Fiber optic Duplex patch cord, LC, 50/OM4 Nummer: 8-63LL-020-E Length 2 m
Stock:
Price:
Variant: 3m UniBoot, Fiber optic Duplex patch cord, LC, 50/OM4 Nummer: 8-63LL-030-E Length 3 m
Stock:
Price:
Variant: 5m UniBoot, Fiber optic Duplex patch cord, LC, 50/OM4 Nummer: 8-63LL-050-E Length 5 m
Stock:
Price:
Variant: 8m UniBoot, Fiber optic Duplex patch cord, LC, 50/OM4 Nummer: 8-63LL-080-E Length 8 m
Stock:
Price:
Variant: 10m UniBoot, Fiber optic Duplex patch cord, LC, 50/OM4 Nummer: 8-63LL-100-E Length 10 m
Stock:
Price:

Demand for increased fibre density requires new High Density optical patch cords. Patch cords in UniBoot design, contains 2 fibres in 1 cable and therefore the amount of cables is cut in half when routing. The integrated push-pull tab enables easy installation especially in tight spots. The tab may if needed be snapped off to shorter length or removed totally.

  • LC High Density patch cords
  • UniBoot (2 fibres in 1 cable)
  • Reversible polarity
  • Integrated and removable push-pull tab for easy installation
  • LC optical interface
  • Multimode OM4



The construction makes it possible to reverse the polarity from A-B to A-A without the use of tools.

  • Push the black part on the connector body from both sides
  • Using the boot, push the cable through the Uniboot body
  • Rotate one of connectors by 180° (2nd one will rotate automatically)
  • Turn the Uniboot body by 180°
  • Plug the Uniboot body over the connectors

CABLE

Fibre type and cable colour:  Multimode OM-4                     Violet

Outer diameter:  2.0 mm

Temperature range:  -10 to 60 °C
