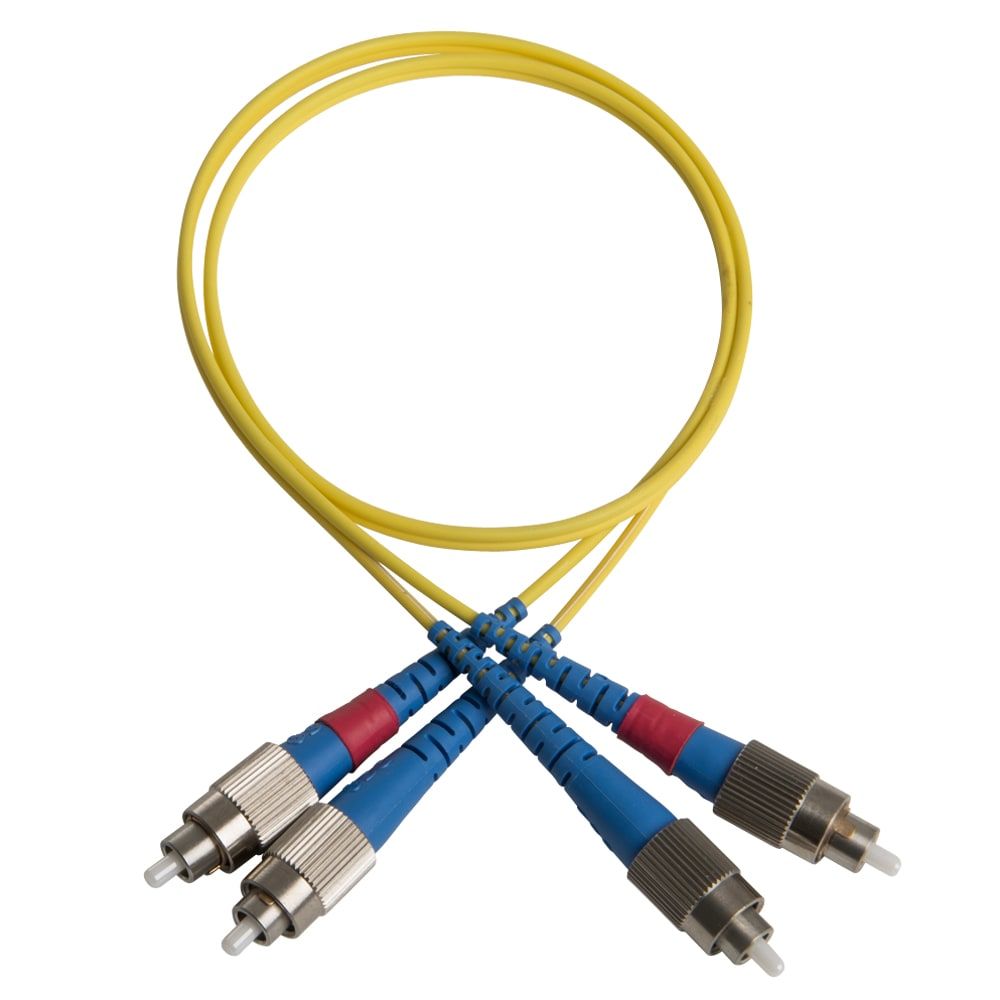

Duplex patch cord, FC/PC-FC/PC, 9/OS2/2000, yellow
Fiber optic Duplex patch cords with connectors are delivered with the connectors in clips, and with A-B polarity. Singlemode fiber optic duplex patch cord with FC/PC-FC/PC connectors according to IEC 61 754-4. Yellow fire retardant and halogen free 2.0 mm cable.
| Variant | Product Number | Length | Stock | Price | |||
|---|---|---|---|---|---|---|---|
| Variant: FC/PC-FC/PC Fiber optic Duplex patch cords cable 1m , 9/OS2/2000 | Nummer: 8-3B55-010-E | Length 1 m |
Stock:
|
Price:
|
|
|
|
| Variant: FC/PC-FC/PC Fiber optic Duplex patch cords cable 2m , 9/OS2/2000 | Nummer: 8-3B55-020-E | Length 2 m |
Stock:
|
Price:
|
|
|
|
| Variant: FC/PC-FC/PC Fiber optic Duplex patch cords cable 3m , 9/OS2/2000 | Nummer: 8-3B55-030-E | Length 3 m |
Stock:
|
Price:
|
|
|
|
| Variant: FC/PC-FC/PC Fiber optic Duplex patch cords cable 5m , 9/OS2/2000 | Nummer: 8-3B55-050-E | Length 5 m |
Stock:
|
Price:
|
|
|
|
| Variant: FC/PC-FC/PC Fiber optic Duplex patch cords cable 6m , 9/OS2/2000 | Nummer: 8-3B55-060-E | Length 6 m |
Stock:
|
Price:
|
|
|
|
| Variant: FC/PC-FC/PC Fiber optic Duplex patch cords cable 8m , 9/OS2/2000 | Nummer: 8-3B55-080-E | Length 8 m |
Stock:
|
Price:
|
|
|
|
| Variant: FC/PC-FC/PC Fiber optic Duplex patch cords cable 10m , 9/OS2/2000 | Nummer: 8-3B55-100-E | Length 10 m |
Stock:
|
Price:
|
|
|
|
| Variant: FC/PC-FC/PC Fiber optic Duplex patch cords cable 15m , 9/OS2/2000 | Nummer: 8-3B55-150-E | Length 15 m |
Stock:
|
Price:
|
|
|
|
Single mode patch cords are offered both as simplex and duplex patch cords. The products are offered in a number of different configurations with different connectors and lengths. The same product may be delivered in 3 different colours to separate different services in the ODF.
- Single mode fibre according to ITU-T G.657A1, EN 50173-1 OS2
- Quality according to IEC 61755-1 class C2
- CWDM and DWDM ready, tested on 1310, 1550 and 1625 nm
- 2.0 mm cable for high density in ODF
- Yellow fire retardant and halogen free cable
Duplex patch cords with LC- and SC- connectors are delivered with the connectors in clips, and with A-B polarity. Duplex patch cords may also be delivered with A-A polarity on request.
Specifications
Cable colour:
Standard colour: yellow Yellow
Alternative 1: red Red
Alternative 2: blue Blue
Outer diameter: 2.0x4.0 mm (2-fibre)
Flame: Flame retardant and halogen free, IEC 60332-3-24, 60332-1-2, 61034, 60754-1
Insertion loss*: < 0.5 dB, class C IEC 61755-1 (< 1.0 dB for ST)
Return loss*: < 45 dB for PC-polished, class 2 IEC 61755-1
< 60 dB for APC-polished, class 1 IEC 61755-1
Bend radius: 1 round with radius of 10 mm gives < 0,5 dB additional loss
Temperature range: -20 oC to 60 oC
*additional quality grades are available upon request. Please see datasheet DB4615, Quality Grades.
