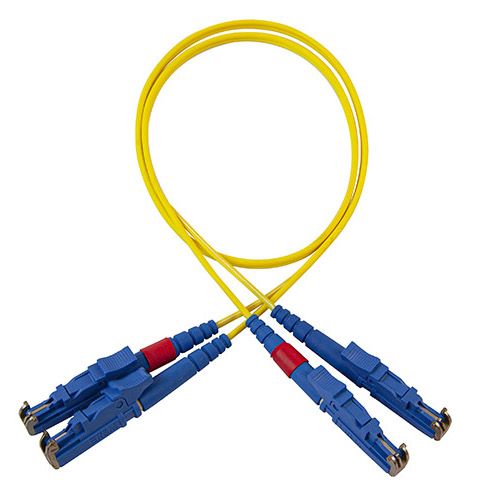

Duplex patch cord, E2000/PC-E2000/PC, 9/OS2/2000, yellow

From: excl. VAT
See variants

Fiber optic Duplex patch cords with connectors are delivered with the connectors in clips, and with A-B polarity. Singlemode fiber optic duplex patch cord with E2000/PC-E2000/PC connectors according to IEC 61 754-4. Yellow fire retardant and halogen free 2.0 mm cable.

Variant Product Number Length Stock Price
Variant: E2000/PC-E2000/PC Fiber optic Duplex patch cords cable 1m , 9/OS2/2000 Nummer: 8-3BFF-010 Length 1 m
Stock:
Price:
Variant: E2000/PC-E2000/PC Fiber optic Duplex patch cords cable 2m , 9/OS2/2000 Nummer: 8-3BFF-020 Length 2 m
Stock:
Price:
Variant: E2000/PC-E2000/PC Fiber optic Duplex patch cords cable 3m , 9/OS2/2000 Nummer: 8-3BFF-030 Length 3 m
Stock:
Price:
Variant: E2000/PC-E2000/PC Fiber optic Duplex patch cords cable 5m , 9/OS2/2000 Nummer: 8-3BFF-050 Length 5 m
Stock:
Price:
Variant: E2000/PC-E2000/PC Fiber optic Duplex patch cords cable 10m , 9/OS2/2000 Nummer: 8-3BFF-100 Length 10 m
Stock:
Price:

Single mode patch cords are offered both as simplex and duplex patch cords. The products are offered in a number of different configurations with different connectors and lengths. The same product may be delivered in 3 different colours to separate different services in the ODF.

  • Single mode fibre according to ITU-T G.657A1, EN 50173-1 OS2
  • Quality according to IEC 61755-1 class C2
  • CWDM and DWDM ready, tested on 1310, 1550 and 1625 nm
  • 2.0 mm cable for high density in ODF
  • Yellow fire retardant and halogen free cable

Duplex patch cords with LC- and SC- connectors are delivered with the connectors in clips, and with A-B polarity. Duplex patch cords may also be delivered with A-A polarity on request.


Specifications

Cable colour:
          Standard colour:   yellow Yellow
          Alternative 1:   red Red
          Alternative 2:   blue Blue

Outer diameter:    2.0x4.0 mm (2-fibre)

Flame:    Flame retardant and halogen free, IEC 60332-3-24, 60332-1-2, 61034, 60754-1

Insertion loss*:    < 0.5 dB, class C IEC 61755-1 (< 1.0 dB for ST)

Return loss*:    < 45 dB for PC-polished, class 2 IEC 61755-1
                             < 60 dB for APC-polished, class 1 IEC 61755-1

Bend radius:    1 round with radius of 10 mm gives < 0,5 dB additional loss

Temperature range:    -20 oC to 60 oC
*additional quality grades are available upon request. Please see datasheet DB4615, Quality Grades.
