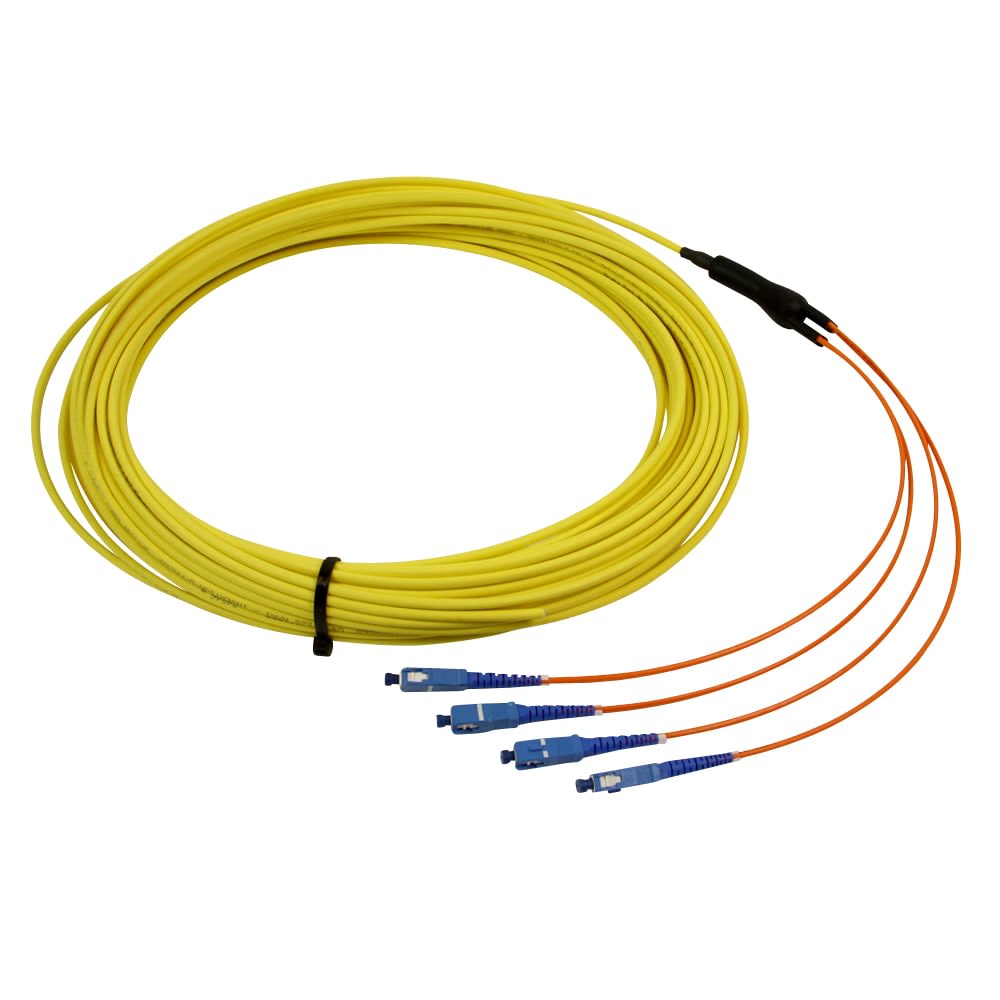

4-fibre AXXI, 62.5/OM1, SC-SC

• May be delivered with most connector types.
• 2-, 4-, 8-, 12– or 24-fibre cable with tight buffer.
• Delivered in customer specified lengths.

Description

A manifold is attached at the end of the cable to fan out the fibres in a controlled way. Each fibre is individually protected by a 3.0 mm tube.  For cables with more than 2 fibres the length of the 2 or 4 next fibres will increase with 5 cm (+0/-5 cm) for every 2. or 4. fibre.

Specifications

Cable type:
Tight buffer, AXXI, black           Flame retardant, Zero halogen

Diameter cable:
9.6/9.6/9.9/10.8 mm                 4/8/12/24-fibre AXXI

Tension strength cable:
800 N            AXXI

Dimensions manifold (fan-out):
Ø 14 mm x 36 mm            2-fibre
Ø 20 mm x 75 mm           4-fibre
Ø 17 mm x 105 mm           8-fibre
Ø 35 mm x 165 mm         12/24-fibre

Diameter protection w/cable grip:
32 mm             2/4/8-fibre
52 mm             12/24-fibre

Diameter detachable protection:
49 mm (accessory 990443 - tube: Ø28 mm)             2/4/8-fibre
63 mm (accessory 990145 - tube: Ø42 mm)              12/24-fibre

Fibre type (acc. to EN 50173-1):
OM-1 (62.5/125)         AXAI: grey
OM-2 (50/125)           AXAI: orange
OM-3 (50/125)           AXAI: turquoise

Insertion loss connectors:
< 0.5 dB @ 850/1300 nm             < 0.2 dB typical

Operating temperature:  -40°C to 60°C
