4-fibre AICI, 50/OM2, ST-ST

From: excl. VAT
See variants

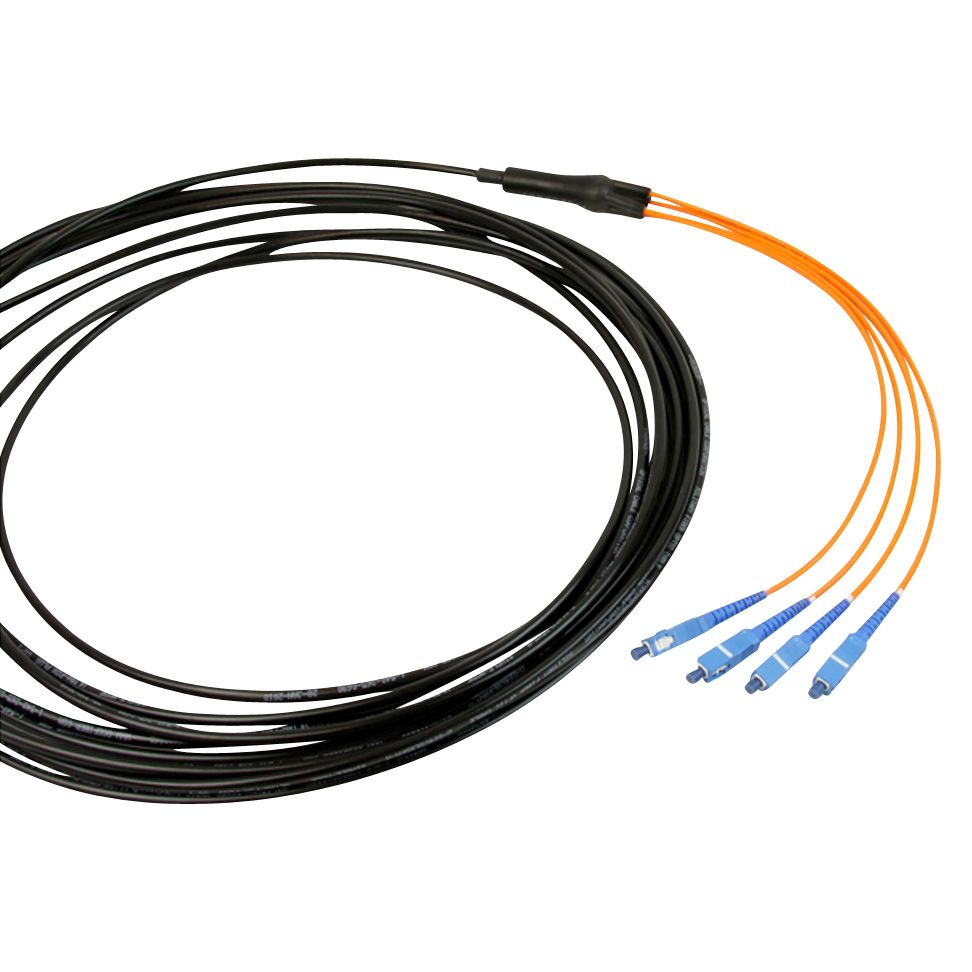

Pre-terminated break-out fiber optic cable AICI 4 fiber with ST-ST connectors. For use offshore and on ship according to NEK 606, may be delivered with most connector types and in customer specified lengths.

Variant Product Number Length Stock Price
Variant: 4-fibre AICI, 50/OM2, ST-ST, 10 m Nummer: 1-B695422-1-010 Length 10 m
Stock:
Price:
Variant: 4-fibre AICI, 50/OM2, ST-ST, 20 m Nummer: 1-B695422-1-020 Length 20 m
Stock:
Price:
Variant: 4-fibre AICI, 50/OM2, ST-ST, 30 m Nummer: 1-B695422-1-030 Length 30 m
Stock:
Price:
  • Cable according to NEK 606 for use offshore and on ship.
  • Single- or multi mode.
  • May be delivered with most connector types.
  • 4-fibre cable.
  • Delivered in customer specified lengths.

DESCRIPTION
A manifold is attached at the end of the cable to fan out the fibres in a controlled way. Each fibre is individually protected by a 3.0 mm tube.
Length of free fibre will be as illustrated below. For cables with more than 2 fibres the length of the 2 or 4 next fibres will increase with
5 cm (+0/-5 cm) for every 2. or 4. fibre as shown.


OPTIONS
As an option the connector side of the cable may be protected with a flexible tube. There are 2 types:

Protection cable-end (with or without pulling grip):
This is made from a flexible tube and is meant as transport/pulling protection before and during installation and is completely removed after use. Outside this tube an optional cable pulling grip may be placed if the cable shall be pulled through tubes.

Protection cable-end, detachable:
Here the protection may be taken of and put back on again, it is therefore suited when the cable will be moved several times. The disadvantage may be that the protection attachment can not be removed from the cable.


SPECIFICATIONS

CABLE:

Cable type:
      Tight buffer, AICI, black, Flame retardant, Zero halogen          NEK 606:2016: F104
      Loose tube, QFCI, black, Flame retardant, Zero halogen        NEK 606:2016: F101

Diameter cable:
      8.2/9.4/10.3/12.0 mm           4/8/12/24-fibre AICI
      13,5 mm                               QFCI

Tension strength at installation:
      700/800/1200/1700 N          4/8/12/24-fibre AICI
      1500 N                                 QFCI

Dimensions manifold (fan-out):
      Ø 14 mm x 36 mm               2-fibre
      Ø 20 mm x 75 mm               4-fibre
      Ø 35 mm x 165 mm             8/12/24-fibre

Diameter protection w/cable grip:
      32 mm                                2/4-fibre
      52 mm                                8/12/24-fibre

Diameter detachable protection:
      49 mm (accessory 990443 - tube: Ø28 mm)         2/4/8-fibre
      63 mm (accessory 990145 - tube: Ø42 mm)         12/24-fibre

Operating temperature: -40°C to 60°C


FIBER (single mode)

Fibre type:

ITU-T G.652.D
     OS-2 EN 50173-1

Insertion loss connectors:
      < 0.5 dB @ 1310/1550 nm       < 0.15 dB typical

Return loss connectors:
      < -45 dB @ 1310/1550 nm for PC        < -50 dB typical
      < -60 dB @1310/1550 nm for APC       < -65 dB typical

Classification, connectors:
      Class C2 (PC), class C1 (APC)       IEC 61755-1

FIBER (multimode):

Fibre type:
      OM-1 (62.5/125), OM-2 (50/125) or OM-3 (50/125)             EN 50173-1

Insertion loss connectors:
     < 0.5 dB @ 850/1300 nm           < 0.2 dB typical
