2-fibre AXAI, 9/OS2, FC/PC-FC/PC

From: excl. VAT

See variants

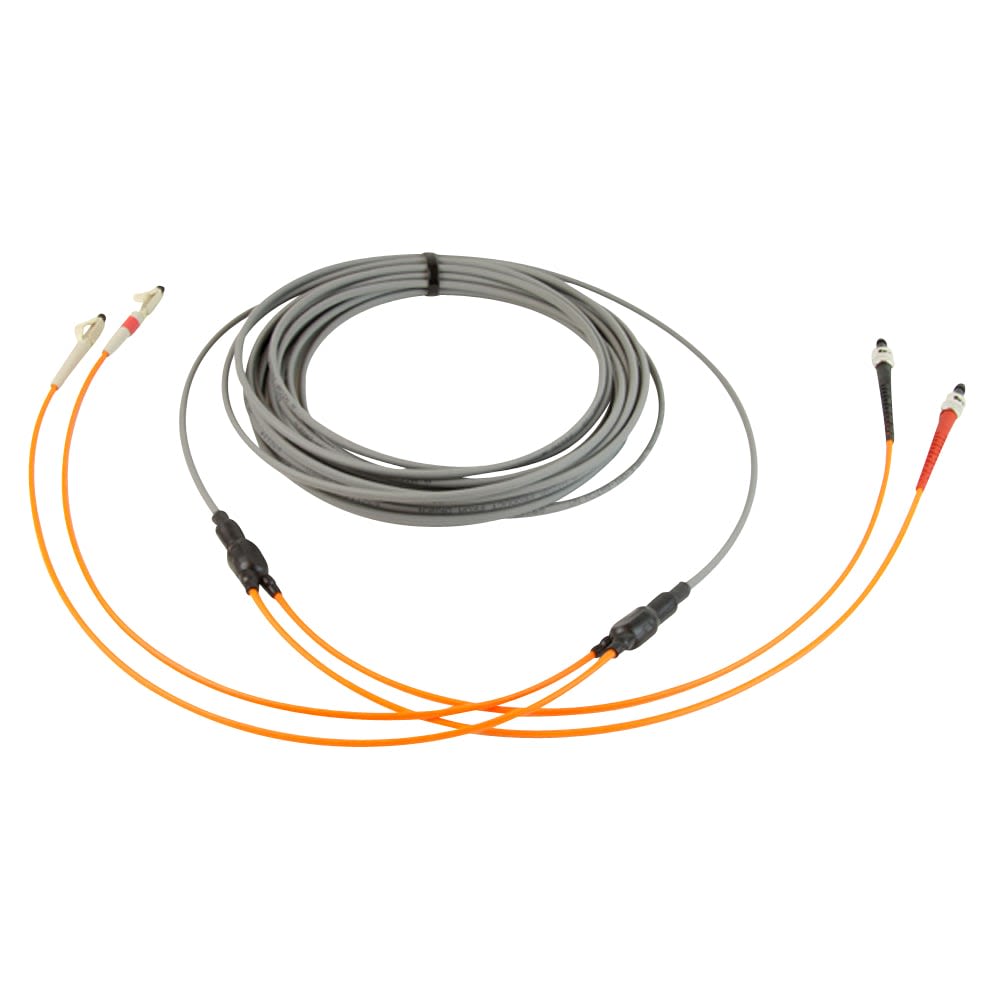

Pre-terminated break-out fiber optic cable with FC/PC-FC/PC connectors. The AXAI single mode cable is terminated in both ends when delivered, each fibre in the cable is distributed to the ends via a fan-out. Combined in- and outdoor use.

Variants
Description

Variant	Product Number	Length	Stock	Price
Variant: 2 Fiber Break-out cable AXAI 10m, FC/PC-FC/PC connectors, 9/OS2	Nummer: 5-B692110-5-010	Length 10 m	Stock:	Price:
Variant: 2 Fiber Break-out cable AXAI 20m, FC/PC-FC/PC connectors, 9/OS2	Nummer: 5-B692110-5-020	Length 20 m	Stock:	Price:
Variant: 2 Fiber Break-out cable AXAI 30m, FC/PC-FC/PC connectors, 9/OS2	Nummer: 5-B692110-5-030	Length 30 m	Stock:	Price:
Variant: 2 Fiber Break-out cable AXAI 50m, FC/PC-FC/PC connectors, 9/OS2	Nummer: 5-B692110-5-050	Length 50 m	Stock:	Price:

connector: FC/PC according to IEC 61 754-13
Fibre type: Single mode according to ITU-T G657A1, EN 50173-1 OS2
Quality: IEC 61755-1 class C2
Cable type: AXAI, tight buffer, fire retardant and halogen free, yellow
Each fibre in the cable is protected with a 3mm furcation tube in both ends
Each fibre in the cable is distributed to the ends with a fan-out
The fibres has a decreasing length (see datasheet)
As an option the cable end can be delivered with protection and a pulling hose
For indoor use
Other lengths can quickly be delivered from our production facilities in Drammen. Please contact us regarding this.

Specifications

Cable type:
Tight buffer, AXAI, yellow Flame retardant, Zero halogen

Diameter cable:
4.5/5/6/6.5/8 mm 2/4/8/12/24-fibre AXAI

Tension strength cable:
325/440/680/900/1400 N 2/4/8/12/24-fibre AXAI

Dimensions manifold (fan-out):
Ø 14 mm x 36 mm 2-fibre
Ø 20 mm x 75 mm 4-fibre
Ø 17 mm x 105 mm 8-fibre
Ø 35 mm x 165 mm 12/24-fibre

Diameter protection w/cable grip:
32 mm 2/4/8-fibre
52 mm 12/24-fibre

Diameter detachable protection:
49 mm (accessory 990443 - tube: Ø28 mm) 2/4/8-fibre
63 mm (accessory 990145 - tube: Ø42 mm) 12/24-fibre

Fibre type:
ITU-T G.657.A1 (compatible with G.652.D) AXAI
OS-2 EN 50173-1

Insertion loss connectors:
< 0.5 dB @ 1310/1550 nm < 0.15 dB typical

Return loss connectors:
< -45 dB @ 1310/1550 nm for PC < -50 dB typical
< -60 dB @1310/1550 nm for APC < -65 dB typical

Classification, connectors:
Class C2 (PC), class C1 (APC) IEC 61755-1

Operating temperature:
-40°C to 60°C

As an option the connector side of the cable may be protected with a flexible tube. There are 2 types:
Protection cable-end (with or without pulling grip): This is made from a flexible tube and is meant as transport/pulling protection before and during installation and is completely removed after use. Outside this tube an optional cable pulling grip may be placed if the cable shall be pulled through tubes.
Protection cable-end, detachable: Here the protection may be taken of and put back on again, it is therefore suited when the cable will be moved several times. The disadvantage may be that the protection attachment can not be removed from the cable.
