Variant | Product Number | Length | Stock | Price | |||
---|---|---|---|---|---|---|---|
Variant: 12 Fiber Pre-terminated cable AXAI 10m for panel installation, SC/PC-SC/PC connectors, 9/OS2 | Nummer: 7-692150-7-010 | Length 10 m |
Stock:
|
Price:
|
|
|
|
Variant: 12 Fiber Pre-terminated cable AXAI 20m for panel installation, SC/PC-SC/PC connectors, 9/OS2 | Nummer: 7-692150-7-020 | Length 20 m |
Stock:
|
Price:
|
|
|
|
Variant: 12 Fiber Pre-terminated cable AXAI 30m for panel installation, SC/PC-SC/PC connectors, 9/OS2 | Nummer: 7-692150-7-030 | Length 30 m |
Stock:
|
Price:
|
|
|
|
Variant: 12 Fiber Pre-terminated cable AXAI 50m for panel installation, SC/PC-SC/PC connectors, 9/OS2 | Nummer: 7-692150-7-050 | Length 50 m |
Stock:
|
Price:
|
|
|
|

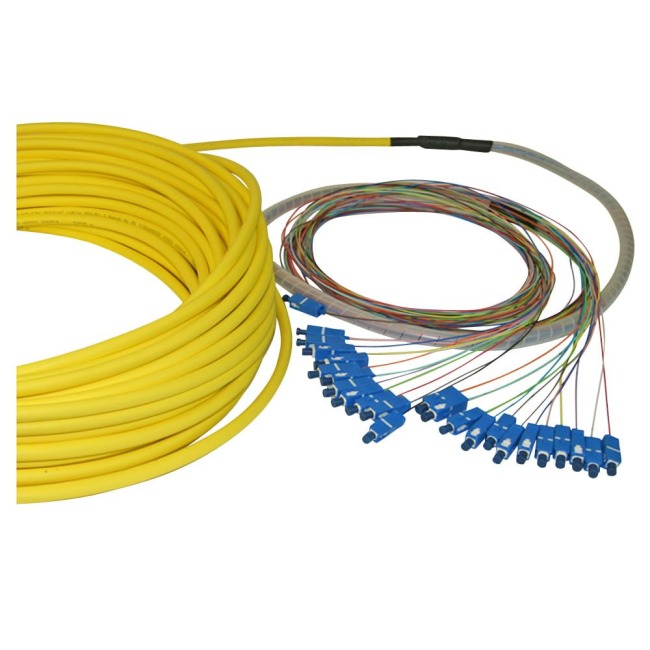

Pre-terminated cable for mounting in FOSS panel type FP70. The cable is terminated in both ends when delivered.
- Connector: SC/PC according to IEC 61 754-4
- Fibre type: Single mode according to ITU-T G.657A1, EN 50173-1 OS2
- Quality: IEC 61755-1 class C2
- Cable: AXAI, tight buffer, fire retardant and halogen free, yellow
- Enables fast and secure mounting in FOSS panel FP70
- Combined in- and outdoor use
- Other lengths are quickly delivered from our production in Drammen. Please contact us
Specifications
Cable type:
Tight buffer, AXAI, several colours (see fibre type) Flame retardant, Zero halogen
Tight buffer, AXXI, black Flame retardant, Zero halogen
Diameter cable:
5/6/6.5/8 mm 4/8/12/24-fibre AXAI
9.6/9.6/9.9/10.8 mm 4/8/12/24-fibre AXXI
Tension strength cable:
440/680/900/1400 N 4/8/12/24-fibre AXAI
800 N AXXI
Diameter w/cable grip:
34 mm 4-fibre
40 mm 8/12/24-fibre
Tension strength cable grip:
350 N
Fibre type:
ITU-T G.657.A1 (compatible with G.652.D) AXAI
ITU-T G.652.D AXXI
OS-2 EN 50173-1
Insertion loss connectors:
< 0.5 dB @ 1310/1550 nm < 0.15 dB typical
Return loss connectors:
< -45 dB @ 1310/1550 nm for PC < -50 dB typical
< -60 dB @1310/1550 nm for APC < -65 dB typical
Classification, connectors:
Class C2 (PC), class C1 (APC) IEC 61755-1
Operating temperature:
-40°C to 60°C
