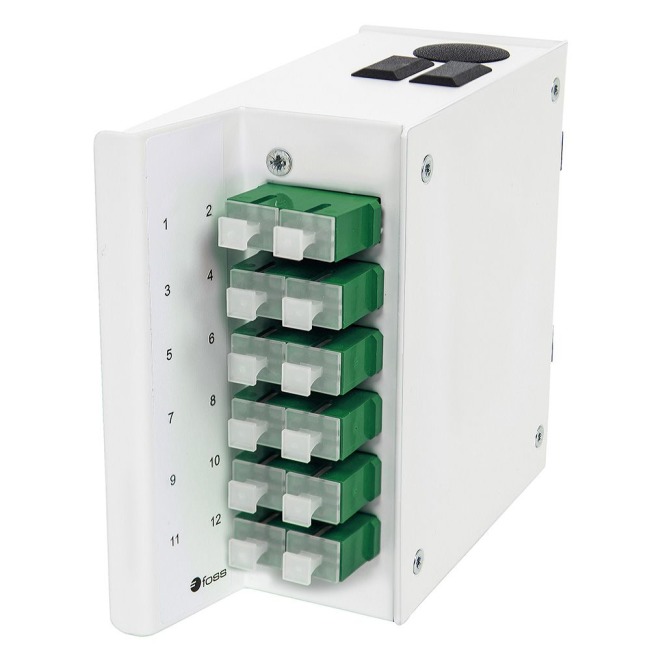

Wall box DIN MINI, SC/PC, adapter, SM

From: excl. VAT
See variants

A compact fiber optic wall box with pre-assembled single mode SC/PC adapters. Both the lid and the adapter plate may be removed, making simple access for working in the box.

Variant Product Number Number of fibres Stock Price
Variant: Fiber optics Distribution box, 4 SC/PC adapter pre-assembled, SM Nummer: FPD66-4APC8-A Number of fibres 4
Stock:
Price:
Variant: Fiber optics Distribution box, 8 SC/PC adapter pre-assembled, SM Nummer: FPD66-8APC8-A Number of fibres 8
Stock:
Price:
Variant: Fiber optics Distribution box, 12 SC/PC adapter pre-assembled, SM Nummer: FPD66-12APC8-A Number of fibres 12
Stock:
Price:

A flexible and small wall box for fiber optics, suited for DIN-rail mounting in cabinets. The box has room for up to 24 LC-connectors or 12 SC– or ST-connectors. Suitable for using pre-terminated cable or for splicing of up to 24 fibres. There is holes for 1 or 2 MPO adapters (both at top and bottom) to enable the box to hold fan-outs from MPO to e.g. LC. Both the lid and the adapter plate may be removed, making simple access for working in the box.

  • DIN-rail mount or directly on wall
  • Simple access inside panel
  • May be mounted left or right
  • Each unit may handle up to 24 connectors for pre-termination or splicing

SPECIFICATIONS DIN mini

Material:
  Aluminium White paint, RAL9010

Cable entrances:  2 stk. (1 at top and 1 at bottom) 1 gland is included (M20)

Mounting options:

  • DIN-rail in the back,
  • DIN-rail on the side,
  • Side mount requires "Wall bracket"   screw on wall (side) - see accessories.

Capacity:  24 (LC), 12 (SC, ST, E2000)

Dimensions:
Included adapters and DIN-rail clip: 55 x 110 x 137 mm (W x H x D)
When using "Wall bracket": 65 x 110 x 129 mm (W x H x D)

Weight:  0.4 kg
