Wall box DIN Mini (FPD66)

FPD66 is a compact wall box for DIN rail and wall mounting of fiber optic cables. Despite its modest dimensions, the box is designed to maintain the correct fiber bend radius and provide enough working space for installers. For easier installation and service, both the lid and the adapter plate can be removed.

Flexible cable entry and configurations

The box features a round cable entry and two slots for MPO adapters on each side. FPD66 can be delivered:

with pre-mounted adapters
with adapters and pigtails
or fully assembled with AXAI, QXXI, or micro fiber optic cables

Mounting options

DIN rail mounting: The DIN rail clip is attached to the rear of the box (on the short side).

Wall mounting: For direct wall mounting, the FPD66200 wall bracket is attached to the side of the box. This solution makes it possible to mount the box over a recessed outlet box, enabling hidden wiring—often preferred in office environments.

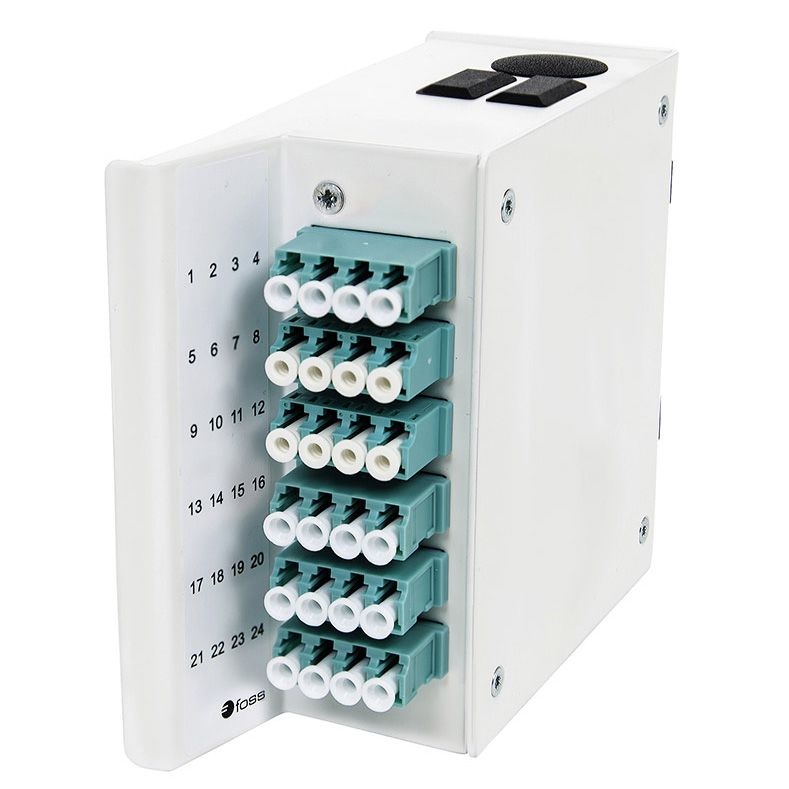

Wall box DIN MINI, 24 LC, 50/OM3, AXAI

A flexible and small distribution box for fiber optics, suitable for DIN rail mounting or directly on the wall. Both the lid and the adapter plate can be removed, making it easy to work in the box.

From:

See variants

Wall box DIN MINI, SC/PC, adapter, SM

A compact fiber optic wall box with pre-assembled single mode SC adapters. Both the lid and the adapter plate may be removed, making simple access for working in the box.

From:

See variants

Wall box DIN MINI, SC, pigtails, OM1

A compact wall box for fiber optics with pre-assembled Multimode OM1 SC adapters and pigtails. Both the lid and the adapter plate may be removed, making simple access for working in the box.

From:

See variants

Wall box DIN MINI, LC/APC, adapter, SM

A compact fiber optic wall box with pre-assembled single mode LC/APC adapters. Both the lid and the adapter plate may be removed, making simple access for working in the box.

From:

See variants

FPD66 with MPO (plug-and-play)

Like the 19" panel FP65, FPD66 can be pre-mounted with a variety of MPO fan-outs, making it a plug-and-play solution. When using LC Quad adapters, the box supports up to 24 fibers. MPO adapters can be mounted on either the top or the bottom of the box.

24 fiber MPO to LC Breakout, Fiber optic Distribution box, OM3, A

A compact distribution box for fiber optics with pre-installed multimode MPO to LC fan-out for DIN-rail mount or directly on wall. Both the lid and the adapter plate may be removed, making simple access for working in the box. High density fiber optic management system reduces needed space, deployment time and is easy to use.

FPD66-24LCOM3-2MPO-A
