Wall boxes

The boxes are available in a variety of configurations and sizes adapted to many different shapes. The wall boxes are for indoor installation. Waterproof wall boxes can be supplied empty, with adapters and pigtails or pre-terminated with cable as required.

Both single mode and multi-mode variants exist.

WEBSHOP

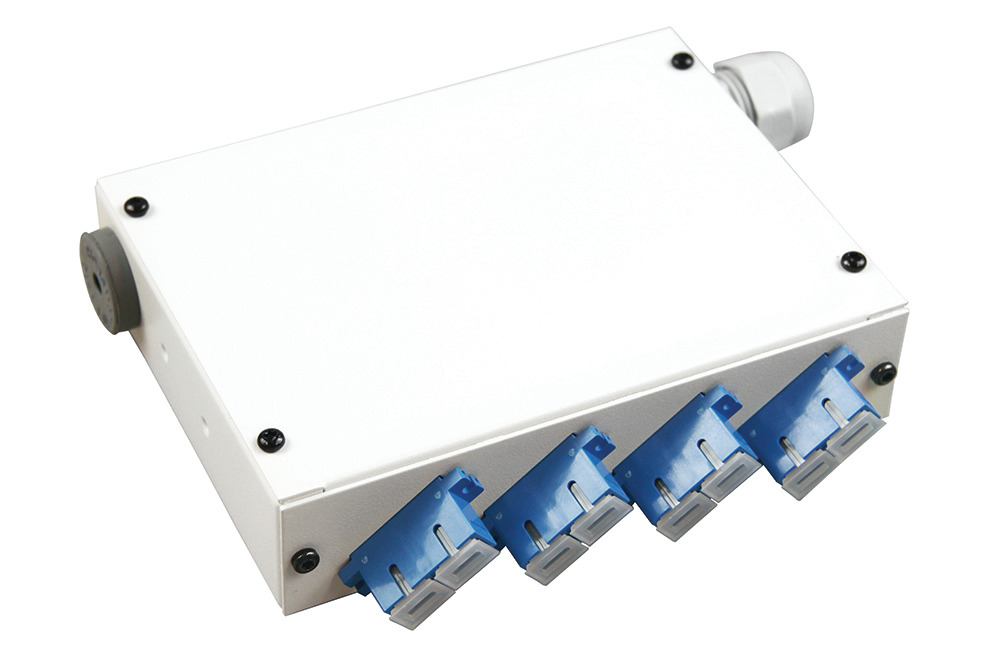

Wall-mount box mini

A simple indoor wall-mount box for termination of cables. The incoming cable may be directly terminated using field connectors or by splicing pigtails.

White aluminium
Including pigtails and splice holder for splicing
Clips for DIN rail as an optional configuration
Dimensions: 110x150x35 mm

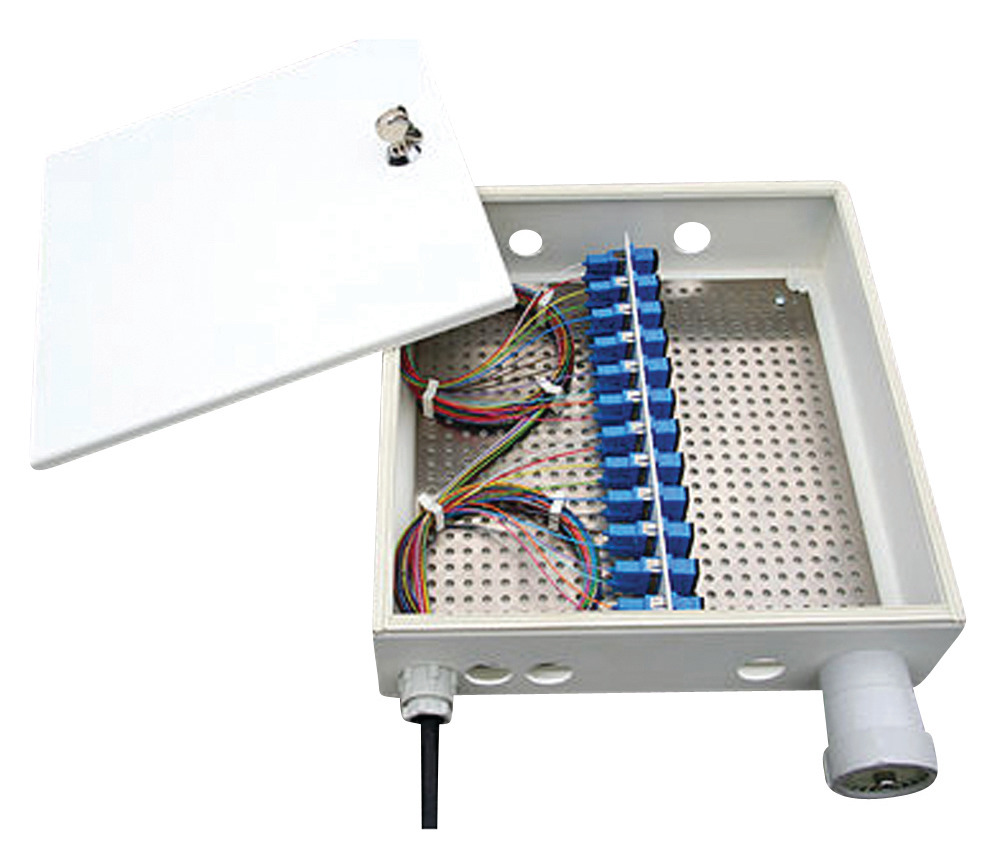

Wall cabinet FOSS24

An indoor wall cabinet for termination or splicing of optical cables. The incoming cable may be directly terminated using field connectors (e.g. FAST, UniCam, LightCrimp Plus) or by splicing pigtails.

The cabinet includes  a perforated assembly board for easy attachment of splice holders and fiber guides. The cabinet has 9 round cable ports, a PG16 gland is included, with the rest of the ports blinded.

Includes a key lock
For splicing of cables
For termination of optical connectors
Prepared for splicing of pigtails
Integrated assembly board
Adapter plates exists for most connector types

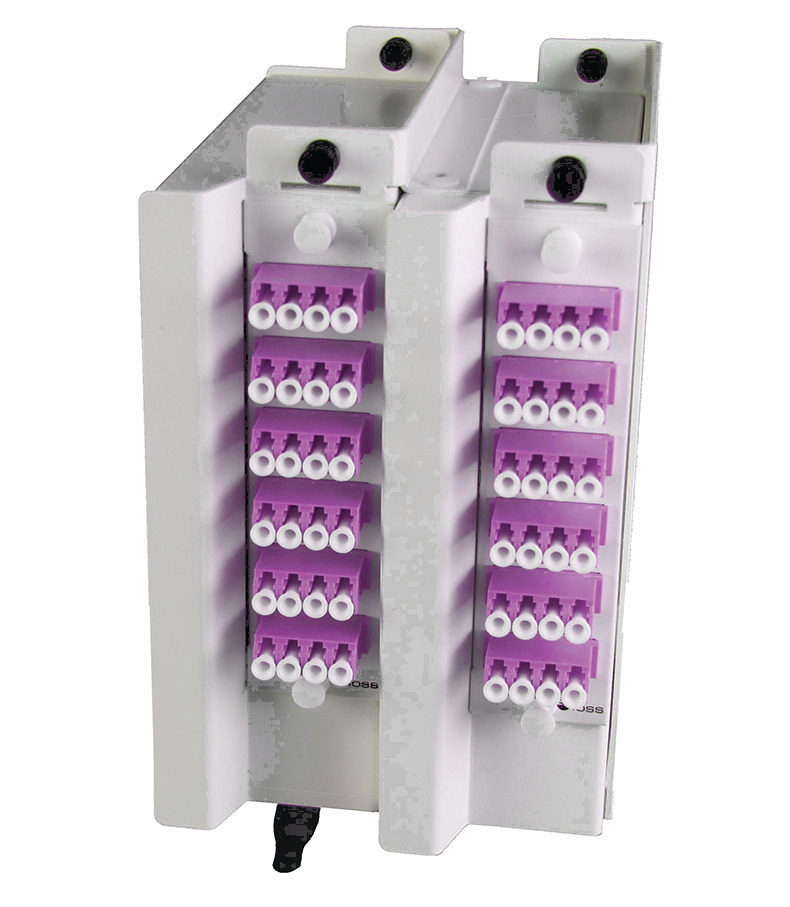

Modular wall box DIN

A flexible panel suited for DIN-rail mounting. The panel is modular and can be provided in various sizes. The base unit has space for up to 24 LC-connectors or 12 SC– or ST-connectors.

The panel can be delivered with pigtails or pre-terminated cable types; AXAI, QXXI or Micro-cable. AXAI cables have a tight buffer and support up to 24 fibers, so a panel with 48 fibers will therefore be delivered with 2 cables.

Add-on unit
The add-on unit has room for the same amount of connectors. The extention using an add-on unit is simply done by removing the lid from the base unit and attaching the add-on unit instead. The lid is then used on the add-on unit. In this way, it is possible to deliver panels with 48, 72, 96 or more connectors just by increasing the total width of the panel.

DIN-rail mount or directly on wall mount
Simple access inside panel
May be extended with add-on units
Each unit may handle up to 24 connectors
Adapters for ST, SC and LC may be provided
