PRE-TERMINATED CABLE
FOR HARSH ENVIRONMENT

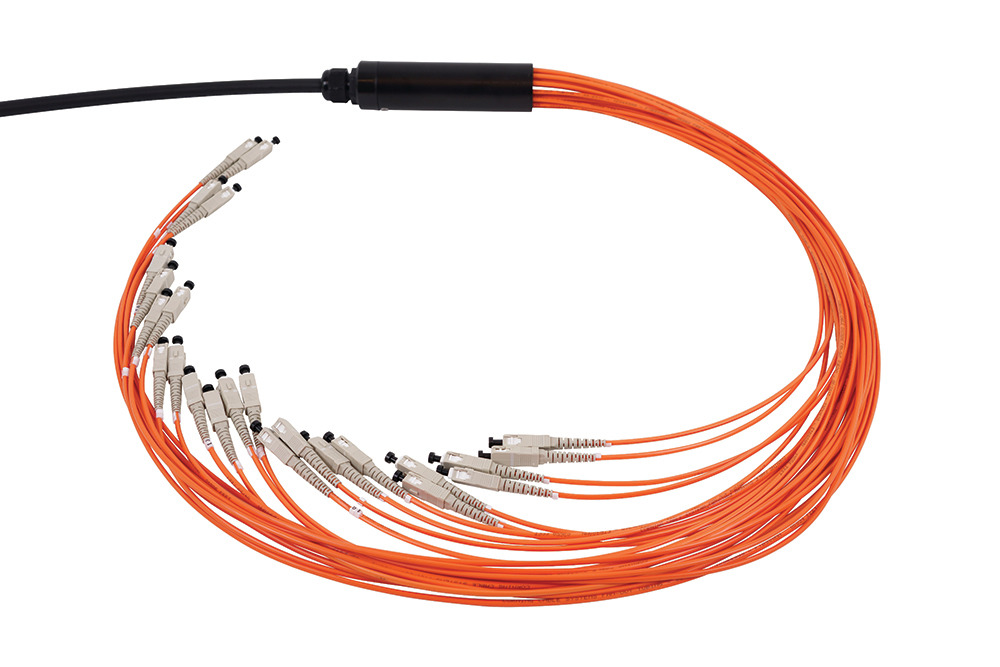

These cables are used where standard patch cords are too fragile and where splicing of pigtails might be impossible.

Almost all types of cable can be used in breakout cables. Cables with 2 to 24 fibers are available.

WEBSHOP

CABLES

Standard cables can be used as pre-terminated cables.

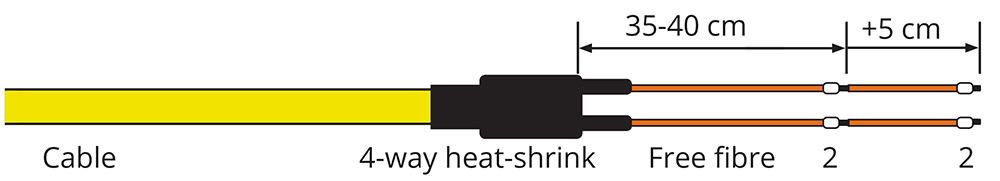

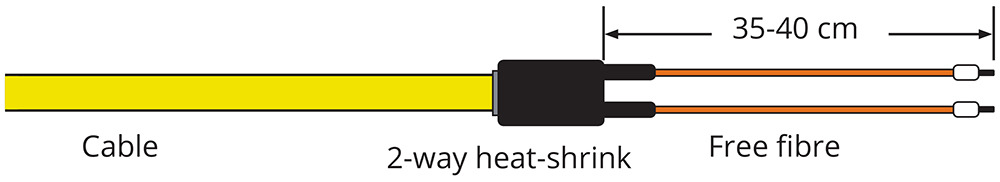

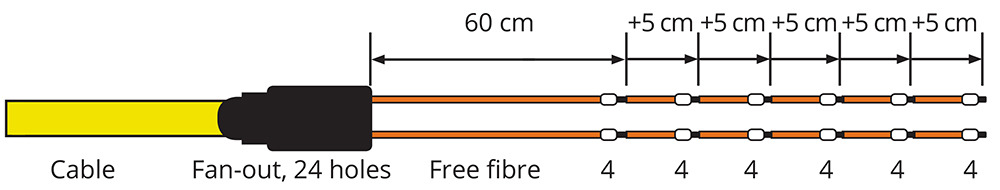

A manifold is attached at the end of the cable to fan out the fibers in a controlled way. Each fiber is individually protected by a 3.0 mm tube. Cables with different specifications can be supplied, for example AXAI, AXXI, AICI, QFCI and tactical cable.

PROTECTION OF CONTACTS DURING INSTALLATION

To protect the connectors during installation two options are available.

Protection cable-end (with or without pulling grip):
Made from a flexible tube that is used for transportation/pulling protection before and during installation and then is completely removed after use. An optional cable-pulling grip may be placed outside of this tube if the cable is to be pulled through tubes.

Protection cable-end, detachable:
Here the protection may be removed and replaced as necessary, therefore suitable should the cable be moved several times. The one disadvantage is that the protection attachment cannot be removed from the cable.

As an option the connector side of the cable may be protected with a flexible tube.
