IP-LC AND IP-MPO

The IP series consists of optical connectors that can withstand harsh weather and wind. The degree of protection is IP68. The optical part of the connector is based on standard LC or MPO connectors.

EXAMPLES OF USE

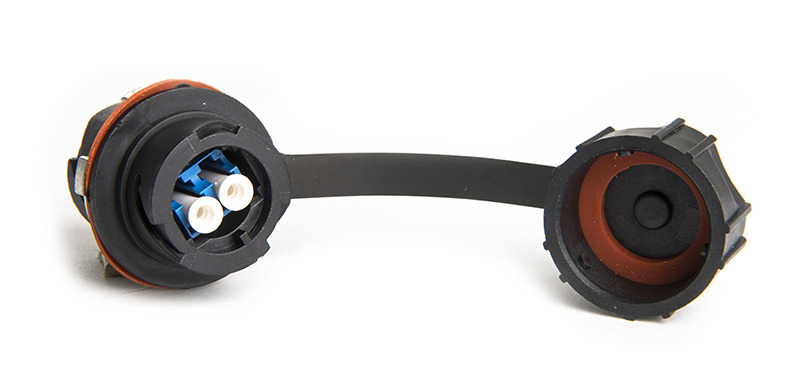

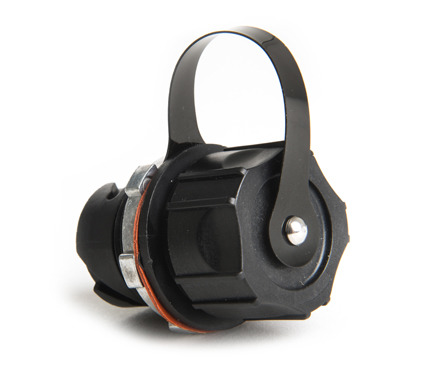

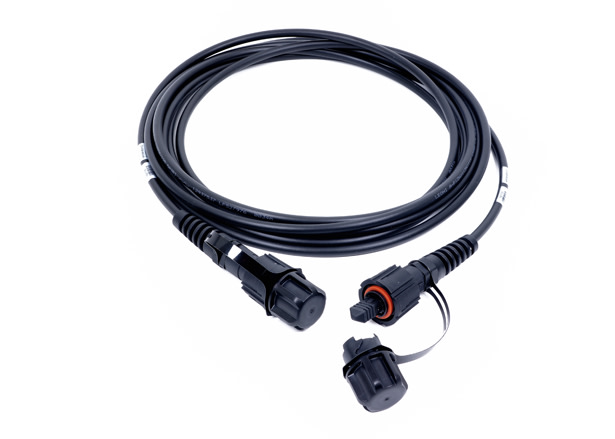

A typical system consists of field cable with a plug at both ends, adapter for mounting in chassis and standard cords on the inside of the cabinet, for connection to electronics or other networks.

Field cable with plugs can also be connected togetherby using the inline adapter. If this is done with IP-MPO, one side must be equipped with control pins.

The IP series is typically used for temporary connections. It is also used for more durable connections where splicing is unsuitable, for example in antenna masts.

Tactical cable is normally used with the IP-series.
This is a robust and flexible cable. It can handle large variation in temperature, -40°C to +70°C.
Together with the Foss cable reel, this becomes a very good solution for temporary connections.

LC- (2-fibre) or MPO- (12-fibre) connector with IP68 protection

A 24-fibre MPO may be provided on request

For exposed weather conditions

For environments with chemicals, corrosive-gasses and -liquids

For fixed and temporary connections

ODVA compatible
