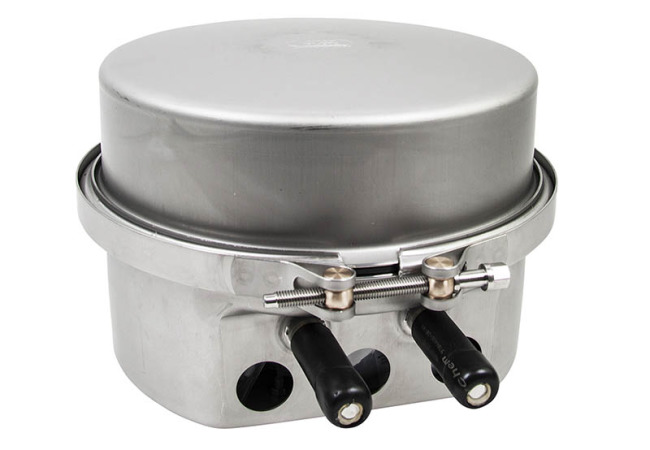

Splice closure, TKG, 3 open+2xØ16, 96 fibres
The splice closure is in stainless, acid resistant steel and used when splicing OPGW (Optical Ground Wire). The box consists of a bottom with 3 holes for 24 mm cable entries, 2 fixed 16 mm cable entries as well as a 70 mm lid. 24 mm cable entries are normally used for OPGW, 16 mm cable entries are normally used for dropping standard cables. The lid can be delivered in different sizes for increasing the capacity (number of trays).
- Outdoor use
- Casing class IP68
- Capacity: 96 splices
- 24 splices in each tray
- Up to 4 trays (must be purchased separately)
- 3 holes for 24 mm cable entries or blind plugs (must be purchased separately)
Dimensions: 160x270 mm (50 mm lid)
Splice closure is normally mounted in a cable management cross for OPGW.
