FIBER OPTIC PATCH PANELS

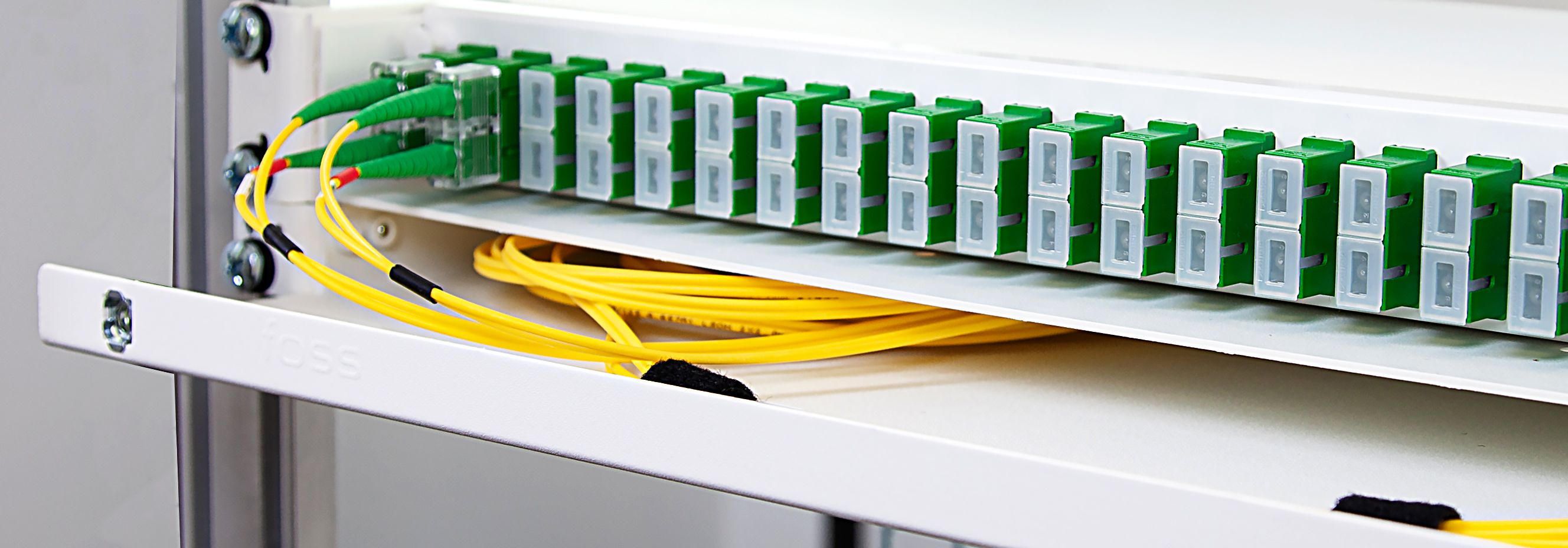

Foss FP-series front patch panels are made with the highest accuracy for precise fitting. All panels are tested according to both our own quality measures and international standards before they are sent to customers.

Patch Panels and ODFs: Organized Fiber Connectivity

In an FTTH network hub—whether a central office, local exchange, or data center—fiber patch panels provide a neat, reliable way to terminate and cross-connect fibers. When configured as full-scale rack systems, these are often called Optical Distribution Frames (ODFs). They act as the nerve center where incoming feeder cables, outgoing distribution cables, and active-equipment ports converge.

Each fiber from an outside-plant cable is terminated on the panel—typically via connector adapters—and then patched with short jumper or patch cables into an Optical Line Terminal (OLT) port or onto another fiber route. This flexible arrangement lets you rearrange connections, perform maintenance, or isolate faults without touching the primary cable runs.

Patch Panel Configurations:
  • Empty panels – ready for custom termination in the field.
  • Panels with adapters – unloaded frames pre-fitted with your choice of adapter types.
  • Panels with pre-terminated pigtails – adapter-ready panels with factory-installed pigtails.
  • Panels with pre-terminated pigtails and cable – a complete, factory-assembled solution including feeder or distribution cable.

Panely s adaptérmi

Panely s adaptérmi a pigtailami

Panely s káblom

Séria FP PRO

Séria FP PRO je vyrobená pre telekomunikačné a LAN siete a pozostáva z panelov v rozmeroch 1U, 1,5U alebo 2U.

Predávajú sa prázdne, s adaptérmi, s adaptérmi a pigtailami, alebo ako predkonektorované aj s optickým káblom. Používame všetky bežné optické konektory a výrobky dodávame v požadovanom vyhotovení a dĺžke.

Panel 1U je k dispozícii v čiernej alebo bielej farbe. 1,5U a 2U iba v bielom prevedení.

Séria FP PRO

Séria FP PRO je vyrobená pre telekomunikačné a LAN siete a pozostáva z panelov v rozmeroch 1U, 1,5U alebo 2U.

Predávajú sa prázdne, s adaptérmi, s adaptérmi a pigtailami, alebo ako predkonektorované aj s optickým káblom. Používame všetky bežné optické konektory a výrobky dodávame v požadovanom vyhotovení a dĺžke.

Panel 1U je k dispozícii v čiernej alebo bielej farbe. 1,5U a 2U iba v bielom prevedení.

FPM-SERIES MODULES:
Modular Flexibility for Scalable Fiber Termination

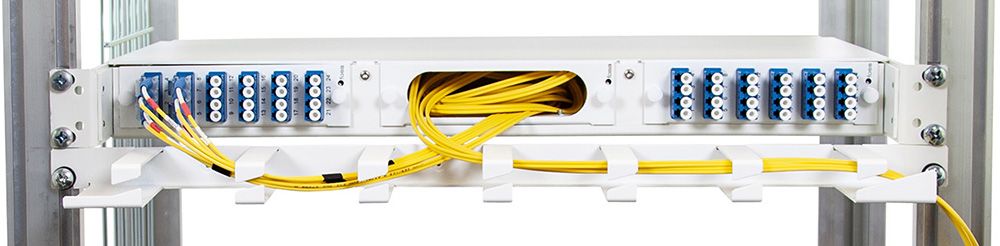

The FPM76-series offers a truly modular approach to fiber panel design, combining compact size with easy expandability. Each FPM76 module holds up to 24 LC connectors, arranged as six quad adapters on a removable front plate and simply plugs into a 1U frame (three modules) or a 3U frame (twelve modules). Unused slots can be covered with blanking plates or replaced by dedicated storage units for excess fiber, keeping your rack neat and service-friendly.

Séria FPM

Séria FPM zabezpečuje flexibilitu vo forme modulárnych patch panelov. Moduly sa zasunú do rámu 1U alebo 3U rámu, v závislosti od celkového počtu potrebných spojení.

Príslušenstvo

Rôzne záslepky portov pre použitie v paneloch.

Inštalačné sety na zváranie pigtailov na kábel s tesnou ochranou. Môže byť tiež použitý na zvánie s káblom typu loose tube.


Ochranné kryty na zabránenie náhodného zachytenia.


A separate back plate may be mounted on the back of both 1U and 3U panels. This have two main functions, strain relief for the MPO-cables and enables extra cable length so the MPO modules may be taken out from the front.
